| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | custom made |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Processing:: | Polishing | Main Export Market: | European And American |
|---|---|---|---|
| Material: | 304/316L | Transport Package: | Carton |
| Welding: | Laser Welding | Magnet: | Ferrite |
| High Light: | water tank level indicator float,diesel tank float |
||

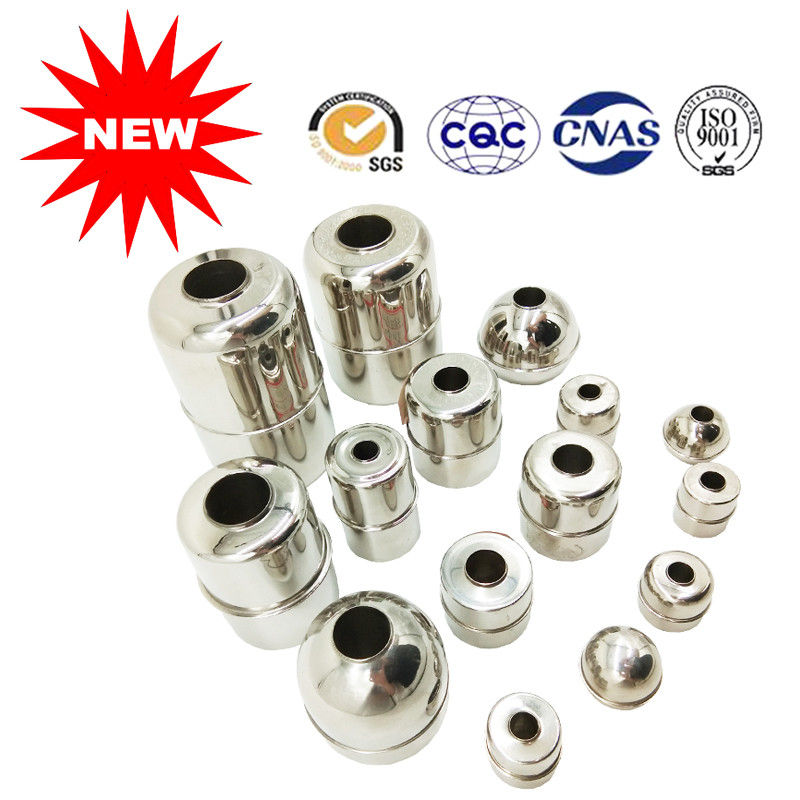

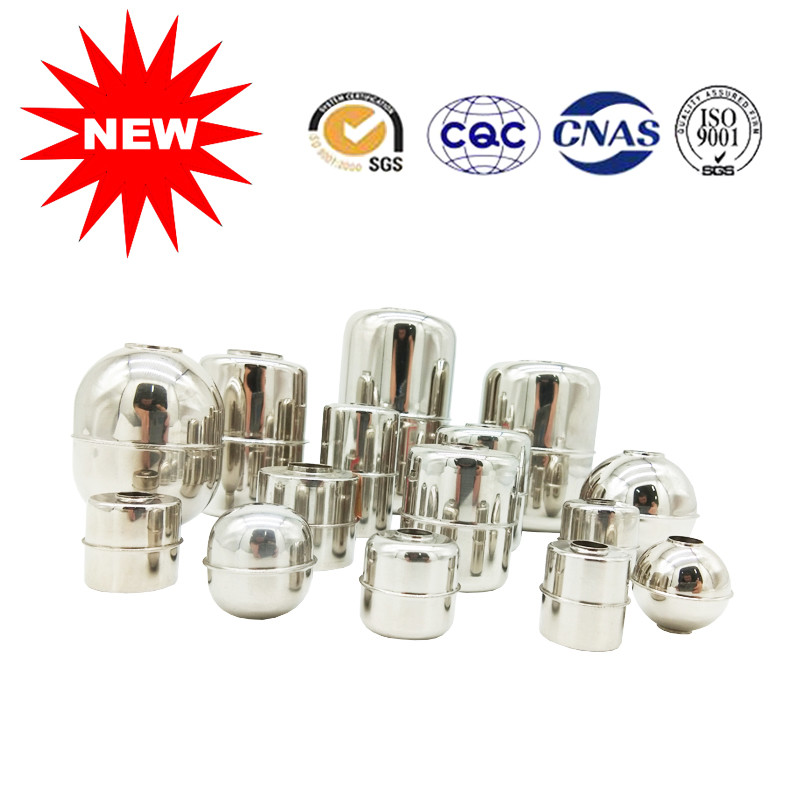

Custom made tank level switch float ball with the magnetic quality from Sanlo
Video: https://youtu.be/IZC9AvFdK1M
Introduction:
The steam trap acts as a steam-blocking effect in the steam heating system. Choosing a suitable steam trap allows the steam heating equipment to achieve maximum efficiency. In order to achieve the best results, a comprehensive understanding of the performance and characteristics of various types of traps is required.
There are many types of traps, each with different properties. When using a steam trap, first select the special performance to meet the optimal operation of the steam heating equipment, and then consider other objective conditions, so that the choice of the trap you need is correct and effective.
Custom made type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 |
1.When the specific gravity of the liquid is different, the action position of the float ball will change. Generally, when the SG is smaller than the water, the portion of the float ball immersed in the liquid will increase relatively.
2. The reference weight of the float switch product is water (SG=1). Therefore, when using the float ball, the proportion SG of the liquid level must be considered, which must be greater than the float ball specification. Otherwise, the float switch cannot float.
3. For liquids with high viscosity and not dry, generally use a float ball with a larger outer diameter.
4. The float switch uses a magnet to sense the reed switch, so the measured liquid level should be free of iron filings, otherwise it will affect the movement of the floating team switch.
