| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9001 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Product: | Round Float Ball | Material: | Stainless Steel 304 |
|---|---|---|---|
| Production Time: | 30days | Medium: | Water |
| Pressure: | Customize | Temperature: | -100-200 |
| High Light: | water tank level indicator float,fuel gauge float |
||

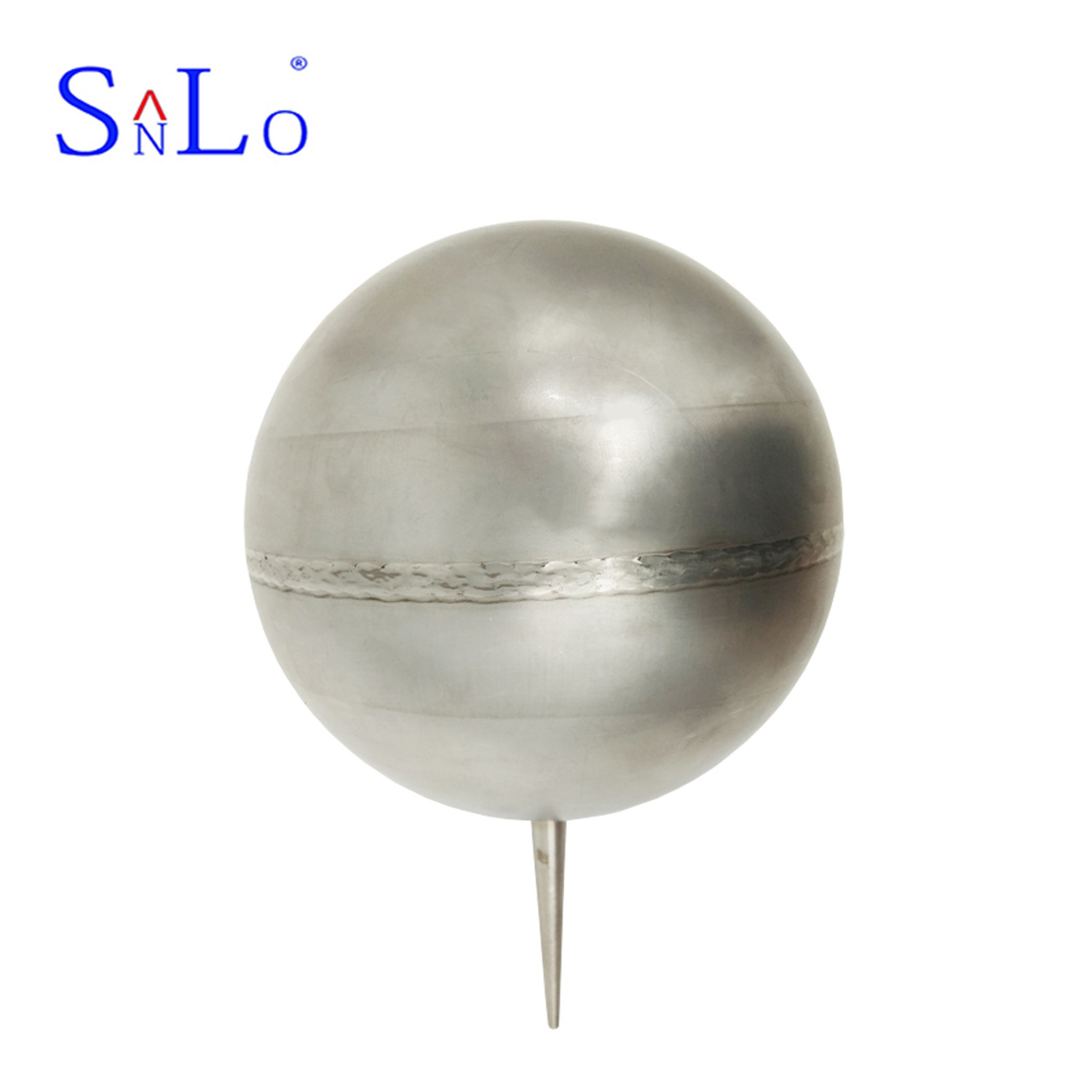

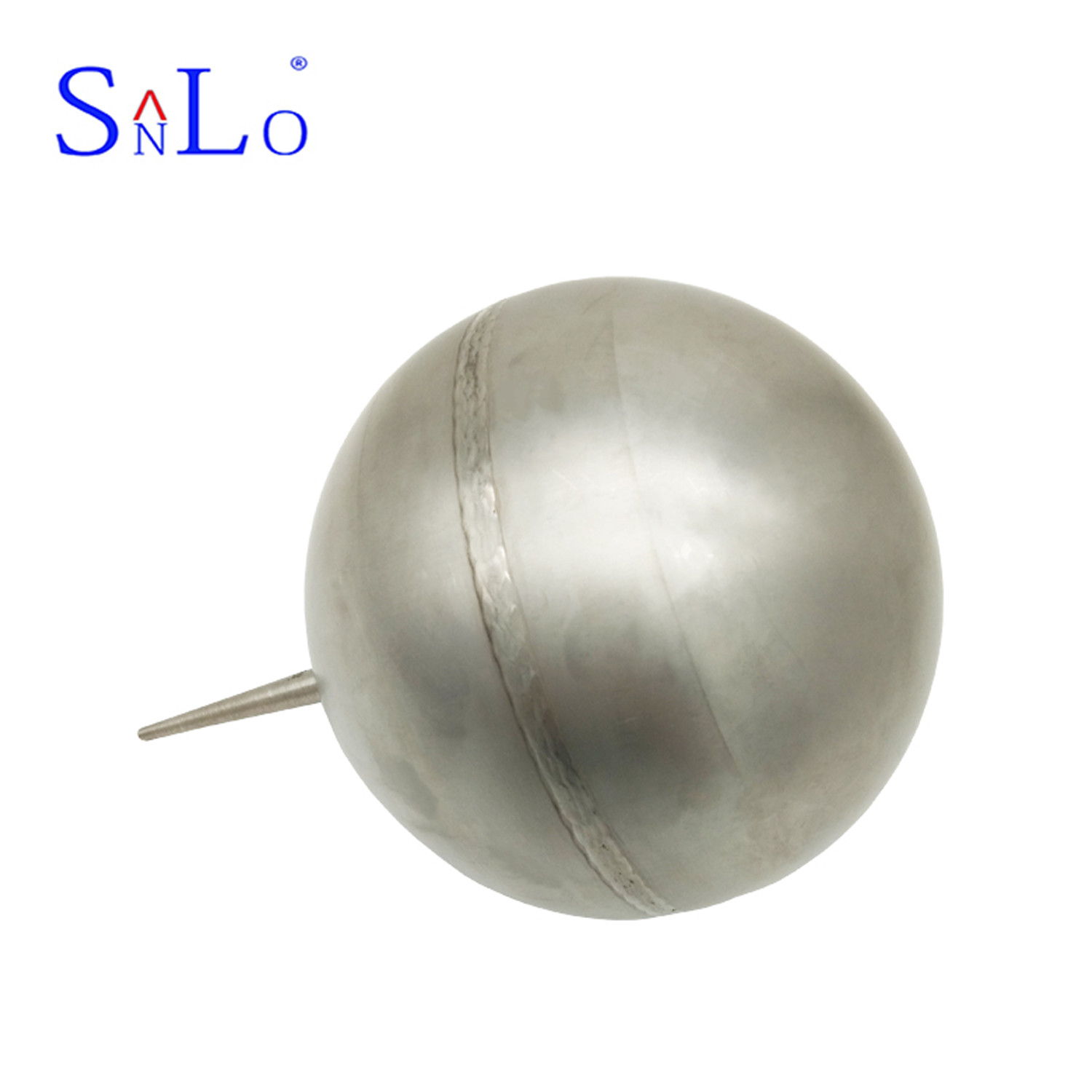

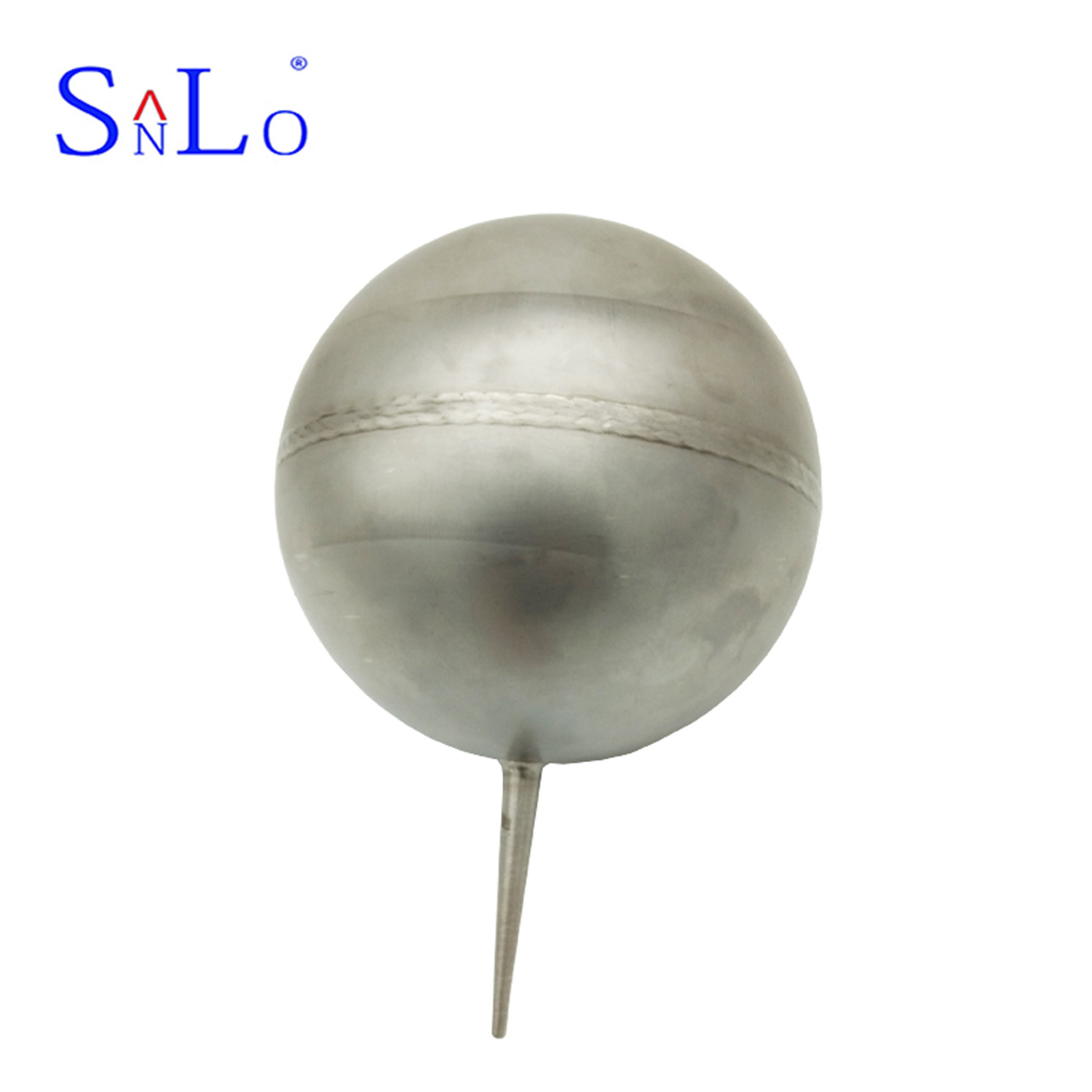

316L Stainless Steel Tank Level Gauges Float For Liquid Level Meter
Video: https://youtu.be/o9u62xskiok
There are many types of magnetic float type liquid level gauges, which are basic magnetic float type liquid level gauges. It has an indicator, a riser, a float, etc. The lower end of the riser has a pair of flanges and valves, and the valve is used for sewage disposal.
The gap between the riser and the float should not be too large. It is too large to cause the float magnetic force to move at the same time. If it is too small, when the float is attached with a certain amount of magnetic material, the float will be clamped and cannot move. The gap should be around 5mm.
Product :
 |
|
|
Top-loading magnetic float level gauges are available in a variety of styles. There are many problems to consider when designing. The following points should be noted:
1. The length of the magnetic steel support tube should be more than 130mm larger than the measured length (affected by the length of the can neck and the initial position of the magnetic steel), preferably determined according to the actual size chart.
Our Factory:
FQA:
1.Q:Are you trade company or manufacture?
A:We are manufacture with more than 12 years experience,and the price is the factory price.
2.Q:How to control the quality?
A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
