| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-054 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Code: | SL-NCG-054 | Delivery Time: | 4days |
|---|---|---|---|
| Main Size: | 45*56 | Claim: | Switch |
| Max Pressure: | 2.5 MPA | Main Export Market: | European And American |
| Material: | 316L | H.S Code: | 9032900090 |
| High Light: | stainless float ball,ss float ball |
||

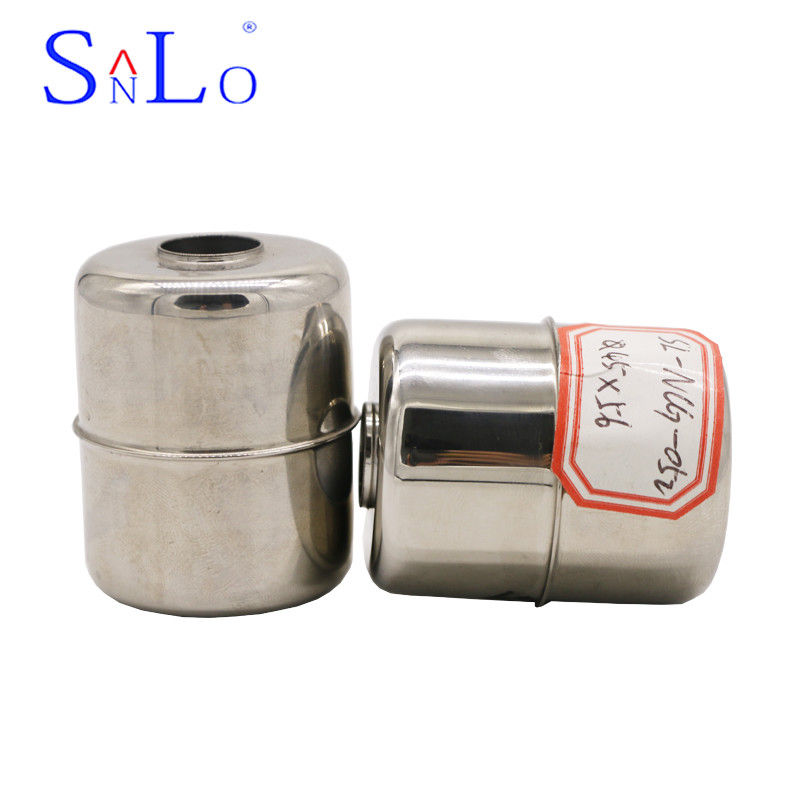

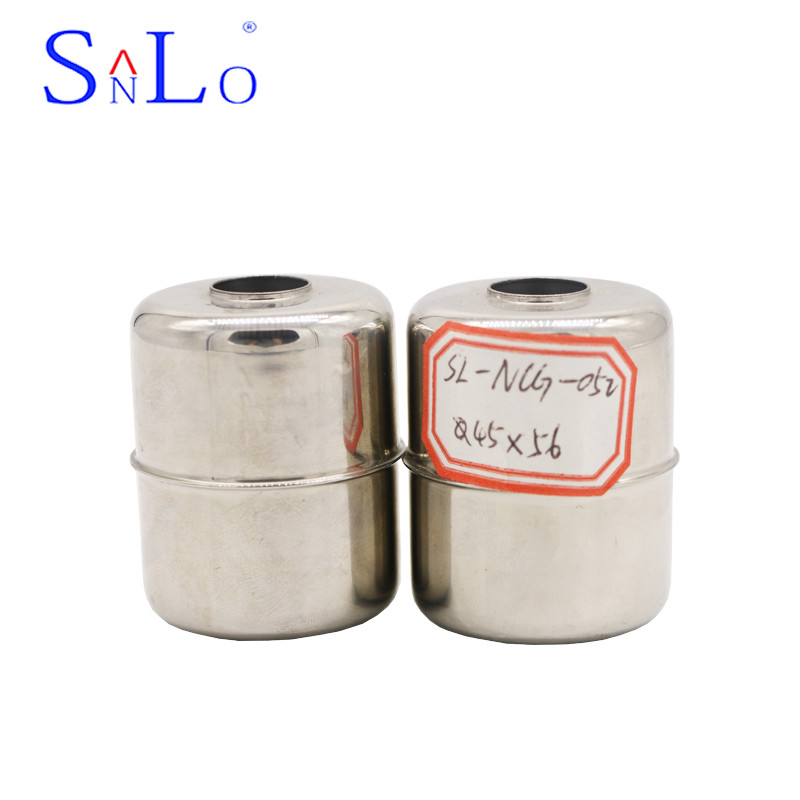

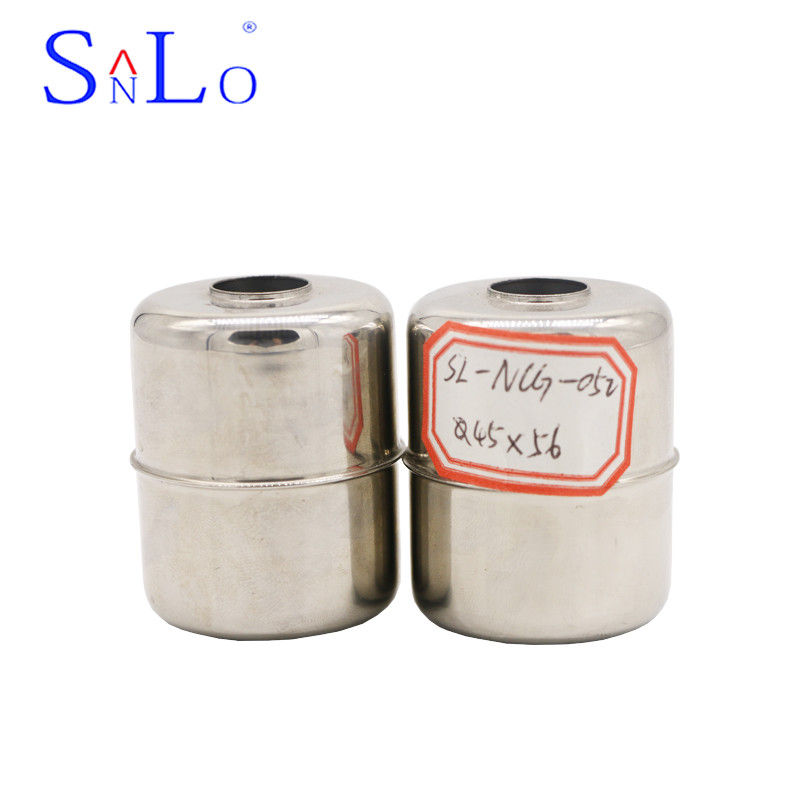

Steel Magnetic float ball 45*56with Matte brushed 110MM from Sanlo company with the top quality
Video: https://youtu.be/GBL-SR0dkBQ
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Normal type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 | |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 | |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 | |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± | |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 | |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | ||
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
Our testing equipment is a helium mass spectrometer. It is the first in China to use this equipment to detect floats, so that the floats that our factory goes out are 100% leak-free. In addition, after the factory quality inspection, we will also carry out The second test, mainly to check whether the appearance of the product is uneven, to ensure that our products go out are all fine, we can say that our quality testing is the first or second in China. After 2 tests, we will send a test report to the customer, which is listed below.
