| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9001 |
| Model Number: | Magnetic Float |
| Minimum Order Quantity: | 500PCS |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-7days |
| Payment Terms: | T/T, Western Union |
| Product: | Customized Magnetic Float | Use: | Level Controller |
|---|---|---|---|
| Color: | Polishing | Material: | Stainless Steel 316L |
| Magnet: | Ferrite | Delivery: | 3-7days |
| High Light: | stainless float ball,sensor floats |
||

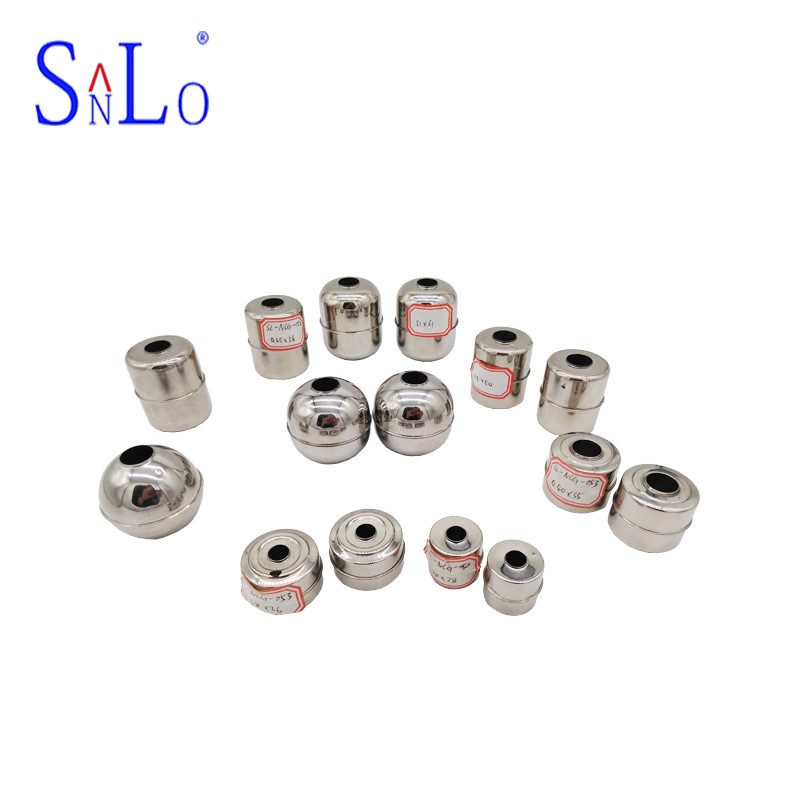

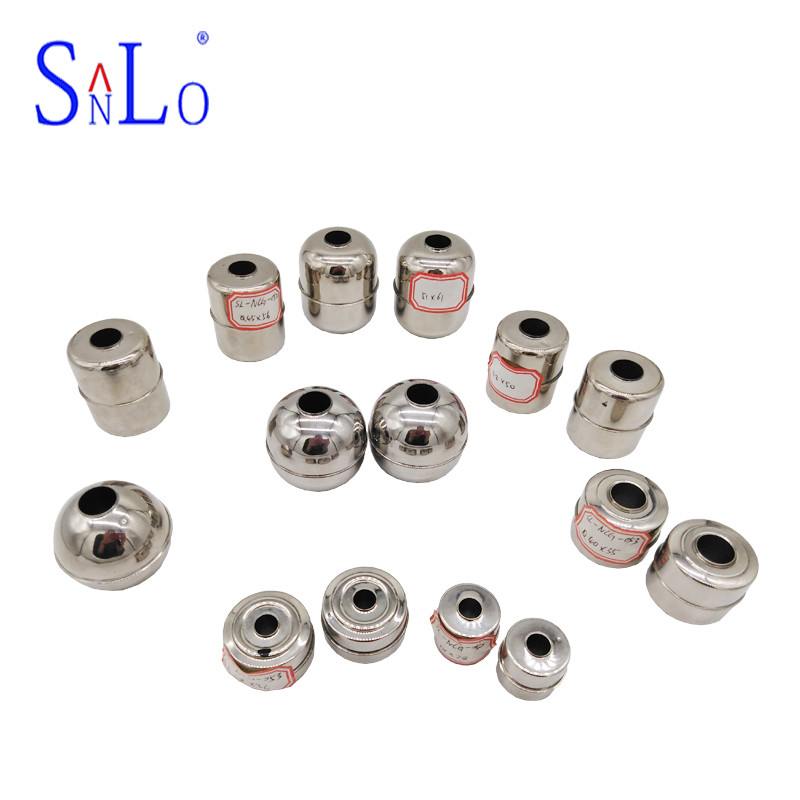

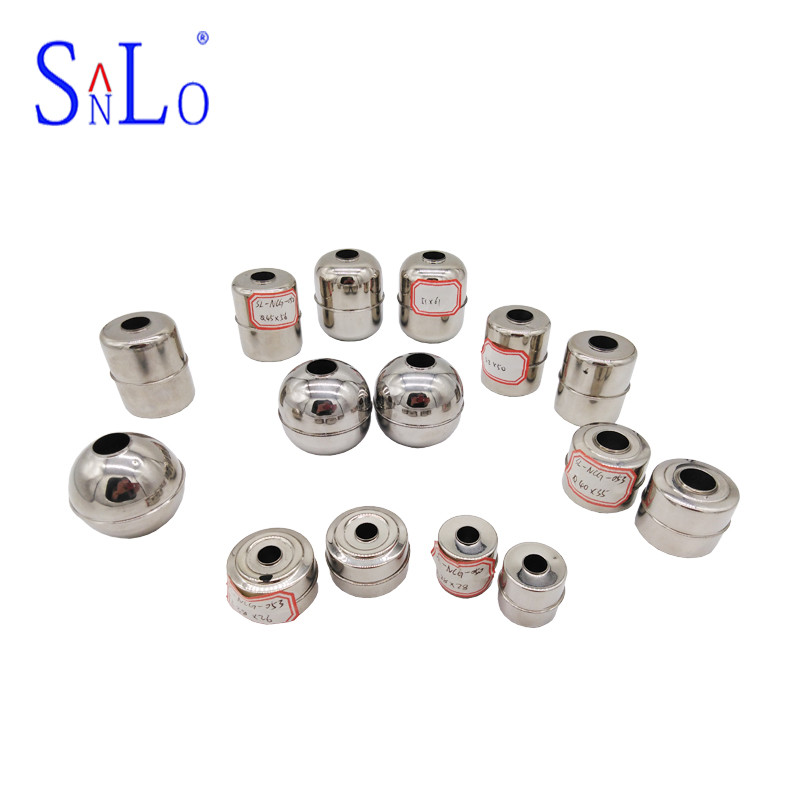

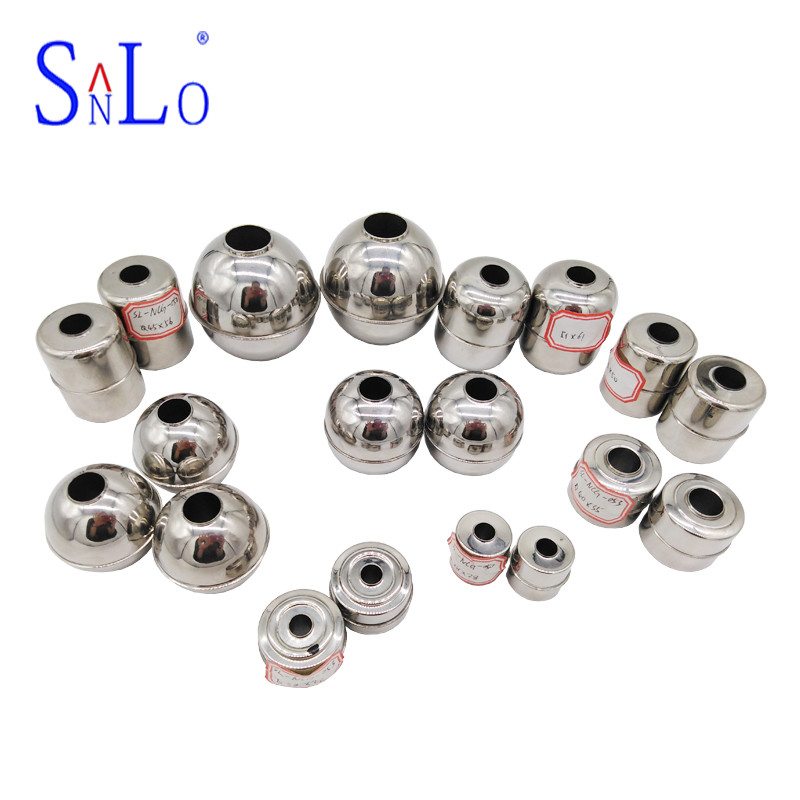

Customized Level Switch Stainless Steel Magnetic Floats , Float Switch Ball
Video:https://youtu.be/b1p5EGUDFgI
Introduction:
The magnetic float of the float level switch is raised or lowered with the liquid level, so that the sensor detects the position of the reed switch chip in the tube, and sends a contact opening (off) switching signal.
One or more reed switches are mounted in the closed non-magnetic tube, and then the tube is passed through one or more floating balls with hollow magnets inside, and the rise or fall of the liquid will move the floats up and down together. Thereby causing the reed switch in the non-magnetic tube to actuate or disconnect, thereby outputting a switching signal
Product:
 |
|
|
This product is also called magnetic level gauge, magnetic flip column level gauge, magnetic float liquid level gauge, it uses the principle of magnetic coupling, the product makes up for the glass tube liquid level meter can not work under high temperature and high pressure and is fragile Multiple shortcomings.
There are two installation methods, side-mounted and top-mounted. No matter which way, the remote transmission device can be bundled, so that the liquid level gauge can display the liquid level on the spot and remotely monitor the liquid level. The bundled magnetic flap level gauge Remote transfer type magnetic flap level gauge
FAQ-
Q. Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
Q. What is your payment terms?
A: Payment<=5000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.
