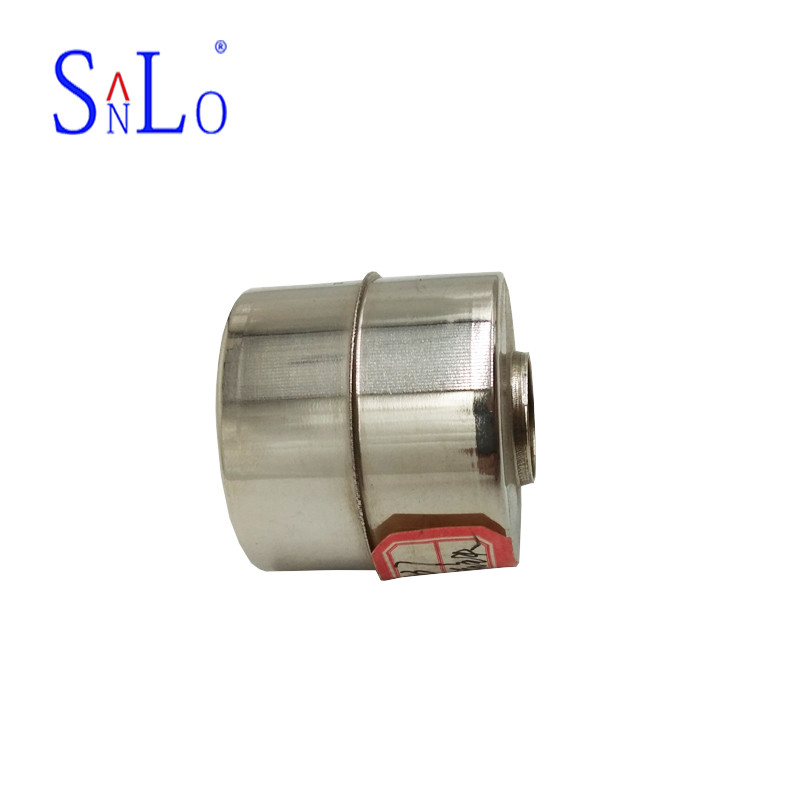

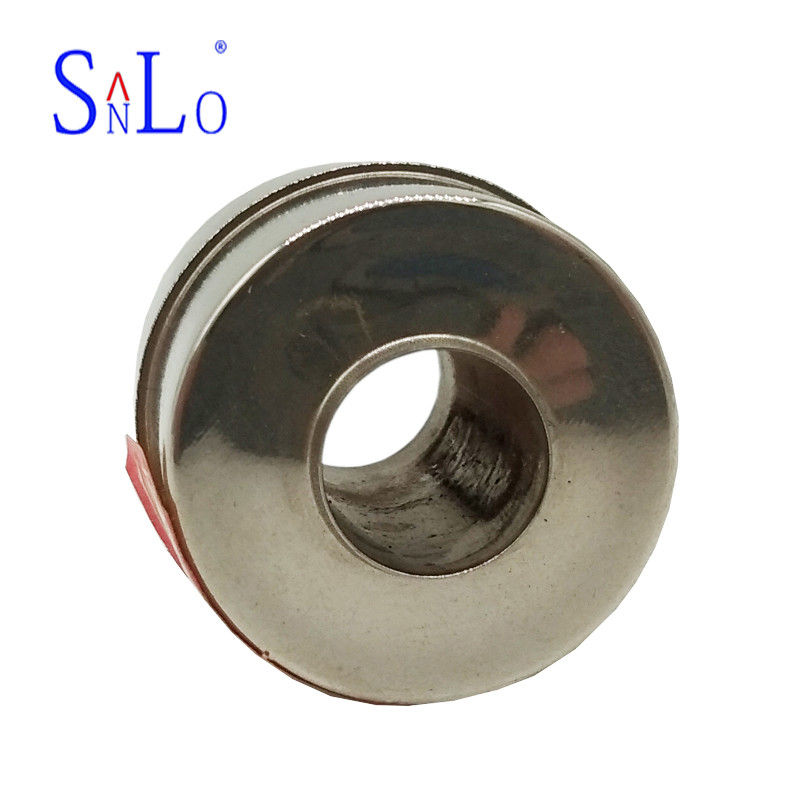

Customized Flat Stainless Steel Magnetic Floats For Float Level Switch 30*35mm

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Detail Information
Main Export: European And American Delivery Time: 3days
Material: 316L Size: 32*30
HS Code: 9032900090 Use Place: Switch
High Light:

stainless float ball


ss float ball

Product Description

customize steel magnetic flat ball 30*35from Sanlo company with the top quality








    This product is the cover of the valve. It is our old customer who wants us to help. The customer provides the drawings and technical parameters. We will help you to verify and modify it later. After confirming with the customer, we will produce a sample and send it to the customer for confirmation. After the final confirmation, the customer will start the final production. Before leaving the factory, we will check the appearance of the product to ensure that it is delivered to the customer.


Working principle:


   The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.






Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
Φ25×25×Φ9.5 316L 1.0 -100~200 >0.85 40±3 5.5±5
Φ25×28×Φ9.5 316L 1.0 -100~200 >0.85 40±3 6±0.5
Φ28×28×Φ9.5 316L 1.0 -100~200 >0.80 40±3 8±1
This kind of ball float applies to float switch,and level control device etc.



Simple Construction, reliable performance:

The product can output stable and reliable switch control signal of “making”, “breaking” without any fault action, so its reliability is very high and anti-interference is strong.


Sturdy and durable, need not maintain:

The product can be sued for a long time after it being in stalled. Almost no maintenance and repairing problem would occur during its operation period.


Easy to install and convenient to adjust:

The liquid level control scope can be adjusted at will with the locating piece moving up and down. Only one screw is needed to faSPen the signal cable to finish installation.


Wide application range and strong generality:

The product can be used to the level of sewage, acid-base solution of less than medium concentration, oils and situations requiring no pollution, diesel oil gasification kitchen range, as well as automatic fuel feeding.




Report :


Customized Flat Stainless Steel Magnetic Floats For Float Level Switch 30*35mm
