| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Export Country: | European And American | Specification: | Custom-made |
|---|---|---|---|
| Material: | 304/316L | Transport Package: | Box |
| HS Code: | 9032900090 | Delivery Time: | 30 Days |
| High Light: | stainless float ball,sensor floats |
||

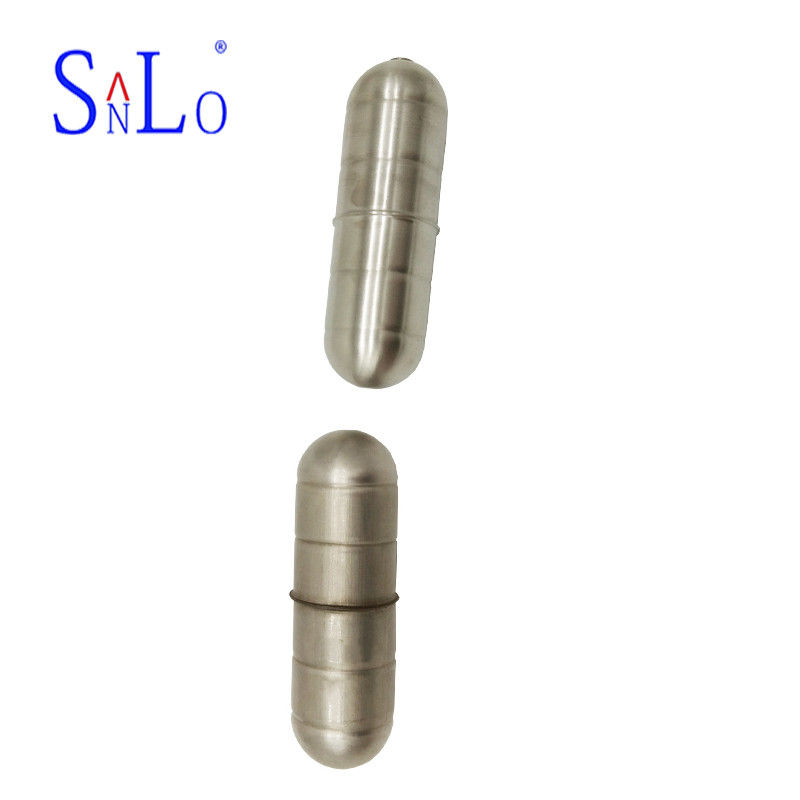

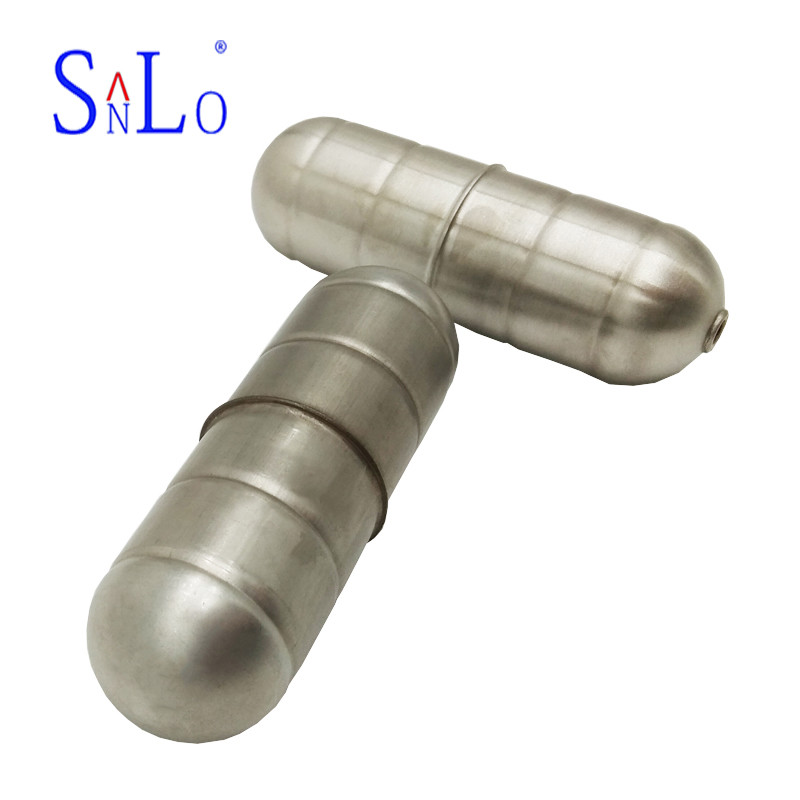

customize steel long shape magnetic flat ball 127*43 from Sanlo company with the top quality
Video: https://youtu.be/IZC9AvFdK1M
Description:
This product is the cover of the valve. It is our old customer who wants us to help. The customer provides the drawings and technical parameters. We will help you to verify and modify it later. After confirming with the customer, we will produce a sample and send it to the customer for confirmation. After the final confirmation, the customer will start the final production. Before leaving the factory, we will check the appearance of the product to ensure that it is delivered to the customer.
316L material characteristics:
1) The appearance of cold rolled products is good and beautiful;
2) Excellent corrosion resistance, especially pitting resistance due to the addition of Mo;
3) Excellent high temperature strength
4) Excellent work hardening (weak magnetic properties after processing)
5) the solution state is non-magnetic;
6) Relative to 304 stainless steel, the price is higher.
Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ50×75 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×125 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×240 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| This kind of ball float suitable for magnetic flap applications. | |||||||
Our Normal Stock list :
| Magnetic float type | Material | STOCK QTY |
| Φ24*24 | 316L | 17000 |
| Φ25*28 | 316L | 10000 |
| Φ28*28 | 316L | 20000 |
| Φ30*28 | 316L | 15000 |
| Φ38*26 | 316L | 5000 |
| Φ40*35 | 316L | 4500 |
| Φ42*50 | 316L | 4000 |
| Φ45*56 | 316L | 3527 |
| Φ51*61 | 316L | 2580 |
| Φ52*50 | 316L | 2365 |
| Φ52*68 | 316L | 1258 |
Many different materials are available for float balls, but the commen material for our floats are stainless steel.
Stainless steel floats are ideal for high pressure, high temperature applications, or where the greater strength and corrosion resistance of this material are necessary. They also are used in less severe applications to assure that the float will last as long as the rest of the product.
Stainless steel eliminates many float failures on low-pressure steam traps, float valves, float boxes, etc.
Stainless steel floats may be used safely at pressures up to 1,000 lbs, often with relatively thin walls for maximum buoyancy. Standard spherical floats of stainless steel weigh considerably less than seamless copper floats of the same size and have a corresponding increase in effective buoyancy.
