Fluid Level Controller Stainless Steel Magnetic Floats Long Shaped Antirust

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Detail Information
Main Market: European And American Main Material: 316
Main Size: 127*42 Production Time: 30days
Pressure: Customize Shelf Life: 1
High Light:

stainless float ball


ss float ball

Product Description

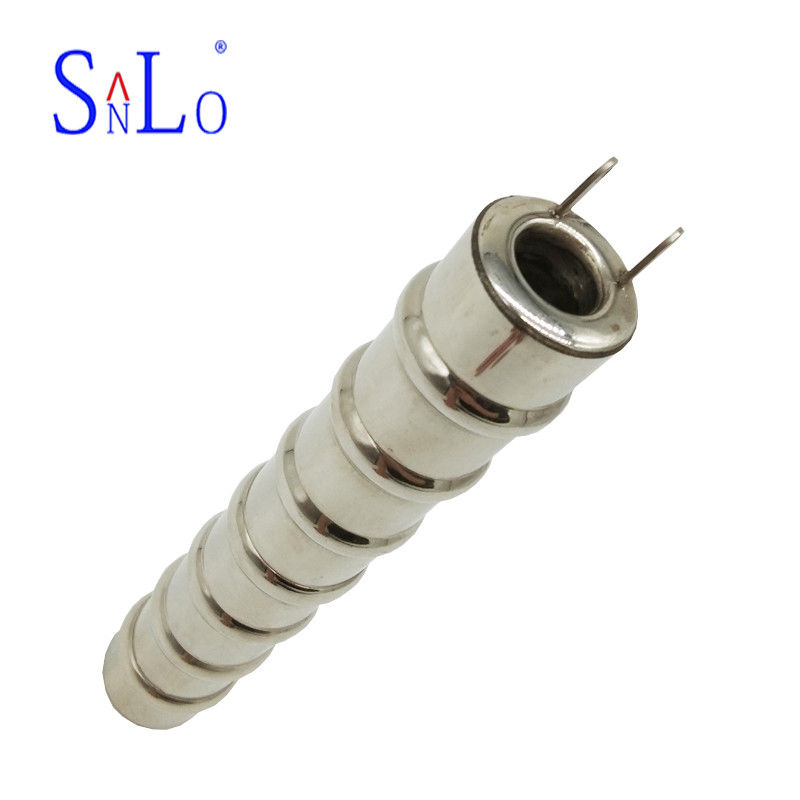

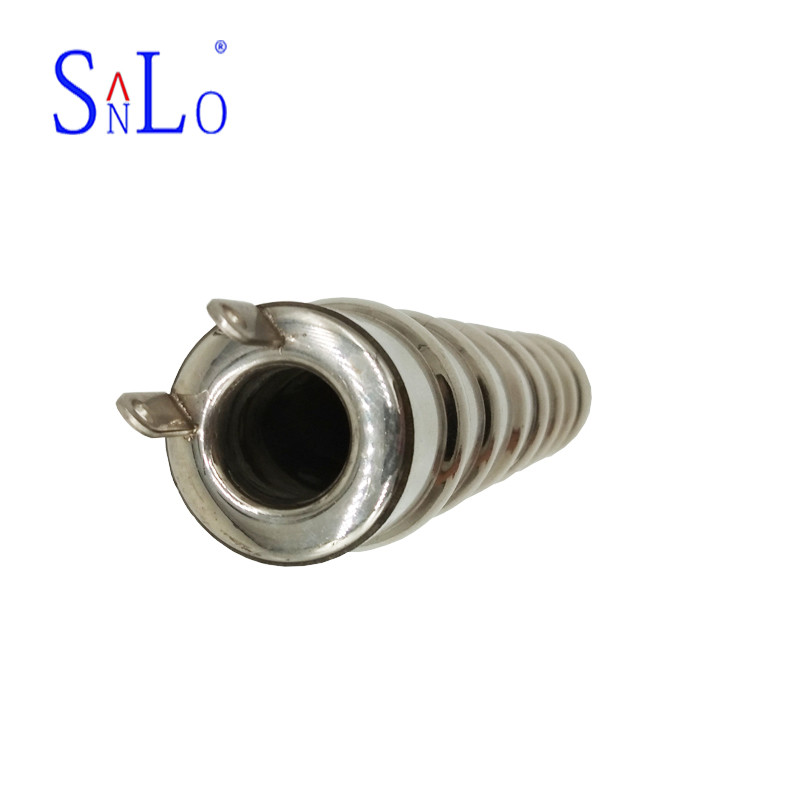

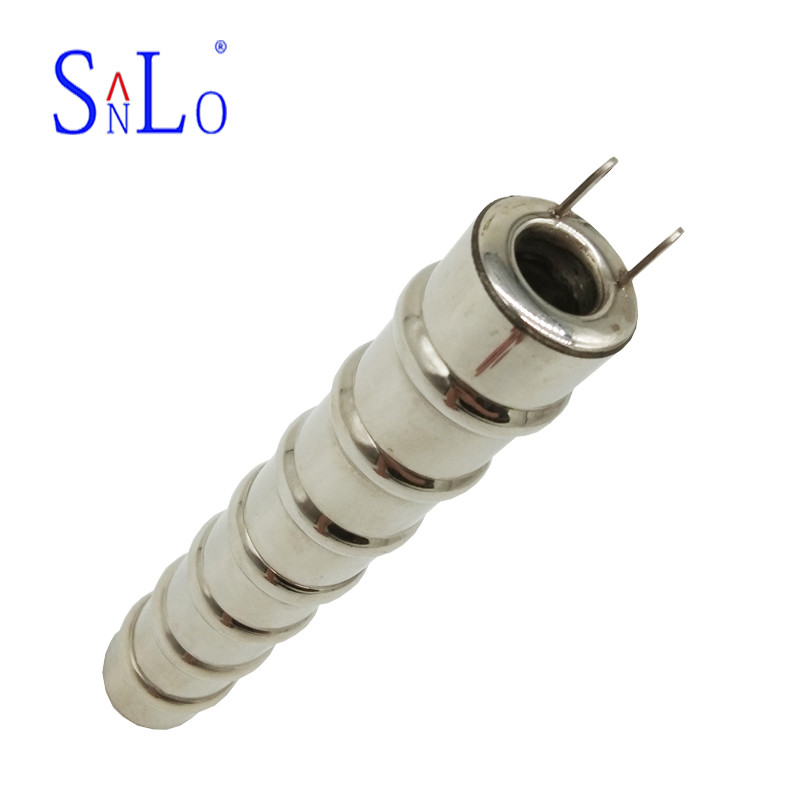

customize long shaped with the ring float ball 127*42 from Sanlo company with the top quality






How to choose the right magnet:

    Our conventional ferrite magnets and neodymium iron boron magnets, which require customer requirements, require magnetic strength to select the right magnet. If the magnet magnet required by the customer is not a very strong switch, then ferrite can be used. Magnets, if you need strong magnetism to use as an alarm, then you need a neodymium iron boron magnet.




Working principle:


    The magnetic flip column level gauge is also called the magnetic flap level gauge, and its structure is mainly designed and produced based on the principle of buoyancy and magnetic force. The position of the float with a magnet (referred to as a magnetic float) in the measured medium is affected by buoyancy. The change of the liquid level causes the change of the position of the magnetic float, the magnetostatic coupling of the magnetic float and the magnetic flip (also become the magnetic flap) causes the magnetic flip to flip a certain angle (the surface of the magnetic flip is coated with different colors), thereby reflecting The condition of the liquid level in the container.


    With the electronic module and transmitter module composed of sensor (reed switch) and precision electronic components, the output resistance value signal, current value (4 ~ 20mA) signal, switching signal and other electrical signals can be transmitted. This enables a perfect combination of on-site observation and remote control.


Technical Parameters:


Shape Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
  Φ50×75 316L 304 1.0 2.5 4.0 80 >0.8 150
Φ50×125 316L 304 1.0 2.5 4.0 80 >0.8 150
Φ50×240 316L 304 1.0 2.5 4.0 80 >0.8 150
This kind of ball float suitable for magnetic flap applications.



Our biggest advantage:


    In addition to our nationally leading cesium mass spectrometry testing equipment, we can ensure that 100% of the quality products are not leaked. What's more, we have our own second inspection. The factory ensures the technology of the products, but we also guarantee that Before delivery, there is a special person to check the appearance of the product. If there is a trace of it, we will immediately return to the factory to provide a product that is aesthetically pleasing, so as to ensure that the products that arrive at the customer are all boutique products. And after the test, we will give a second test report to the customer to ensure our high product quality.





Q:If 'I' want small quantity and fast delivery. Which way of shipping is advised ?
A:By express.


Q:What's the lead time ?
A:If in stocks,2days;or ,it will take 7-15days,depend on the quantity.


Q:Can I have a visit to your company before the order?
A:Sure,welcome to visit us.We are waiting for you in Wenzhou city,Zhejiang province,China
