| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Market: | European And American | Medium: | Water |
|---|---|---|---|
| Magnetic: | Yes | Production Time: | 30days |
| Working Place: | Flap /valve | Polishing: | Yes |
| High Light: | stainless float ball,ss float ball |
||

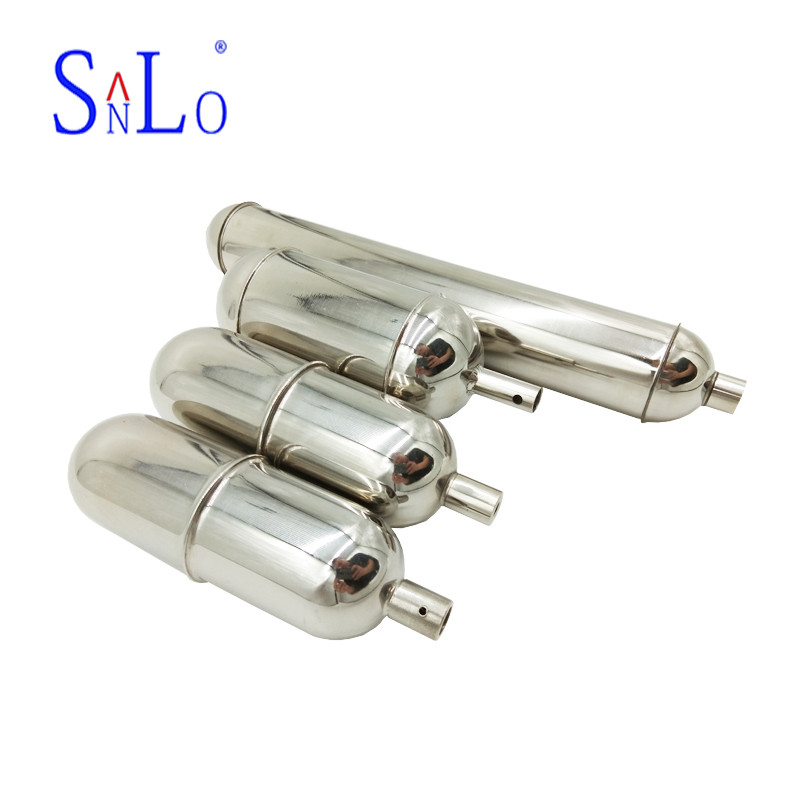

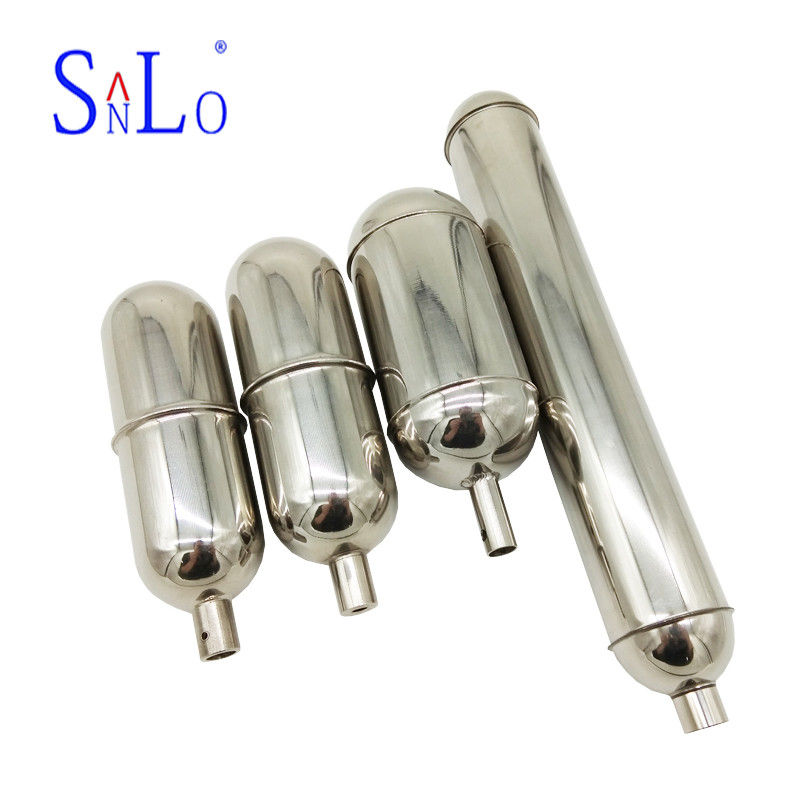

Customize long shaped magnetic float ball group from Sanlo company with the top quality
Video: https://youtu.be/RdYYeWNtyjE
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ50×75 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×125 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×240 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| This kind of ball float suitable for magnetic flap applications. | |||||||
Many different materials are available for float balls, but the commen material for our floats are stainless steel.
Stainless steel floats are ideal for high pressure, high temperature applications, or where the greater strength and corrosion resistance of this material are necessary. They also are used in less severe applications to assure that the float will last as long as the rest of the product.
Stainless steel eliminates many float failures on low-pressure steam traps, float valves, float boxes, etc.
Stainless steel floats may be used safely at pressures up to 1,000 lbs, often with relatively thin walls for maximum buoyancy. Standard spherical floats of stainless steel weigh considerably less than seamless copper floats of the same size and have a corresponding increase in effective buoyancy.
Our service :
1.Good pre- sale & after sale service
2.Factory audited by SGS , MSDS, ISO , etc .
3.Quick delivery time for decent orders .
4.Own test department for every batch products
5. Free samples could be provided
