| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Product: | Shaped-Long | Material: | 304/316/Monel/titanium Steel |
|---|---|---|---|
| Delivery Time: | 30days | Drawing: | Customer Offer |
| Use: | Lever Switch | Pressure: | Can Customize |
| High Light: | stainless float ball,sensor floats |
||

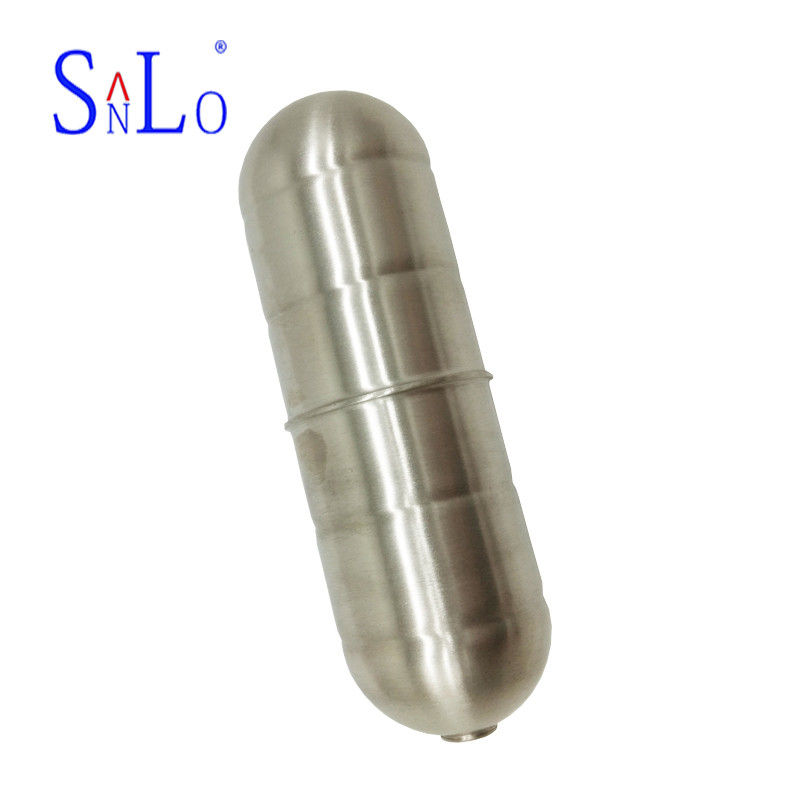

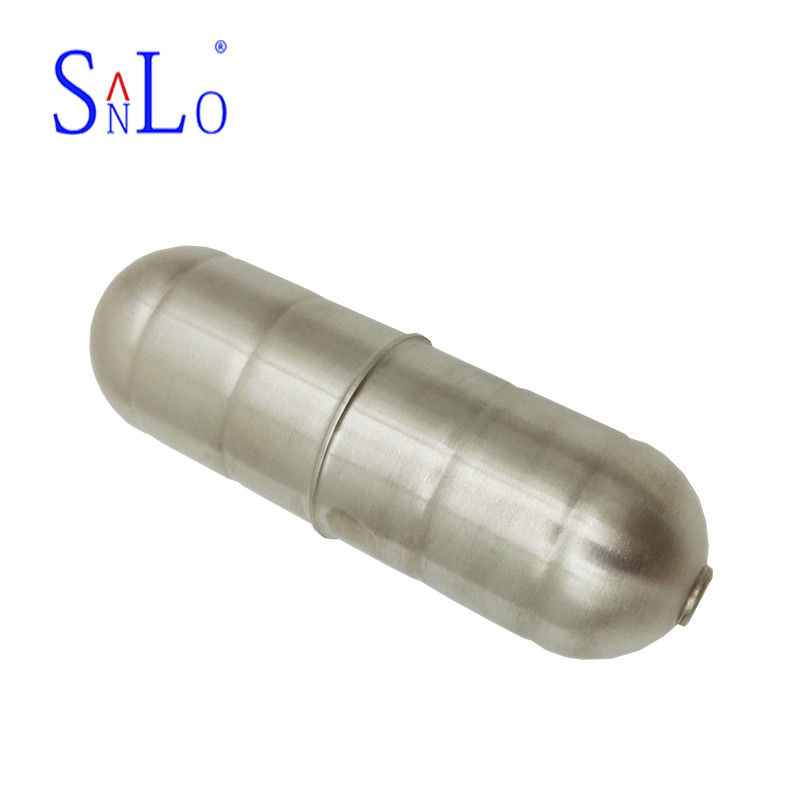

Top quality 185*65 Long float with lever for level switch from china factory with top quality
Video: https://youtu.be/RdYYeWNtyjE
Working principle:
1.SL-NCG-050,051,052,053,054,055. These five models are distinguished by shape and are the most common models on the market.
2. Precision float ball, used in valves such as traps and exhaust valves.
3. Long floats, mostly used on magnetic flap level gauges.
4. Thread float ball, used for various types of float valve and other hydraulic control valves
5. Side-mounted floats, mostly used for side-mounted level gauges.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ50×75 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×125 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×240 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| This kind of ball float suitable for magnetic flap applications. | |||||||
Characteristics
1. Wide application range and various installation forms, suitable for measurement of liquid level and interface of any medium.
2. The measured medium is completely isolated from the indicating structure, and has good sealing performance, anti-leakage, high-pressure, high-temperature and corrosive liquid level measurement, and high reliability.
3. set on-site indication, remote transmission, alarm control switch in one and can be freely adjusted, full-featured Two-color indicator with luminous, continuous and intuitive, eye-catching, large measuring range, the direction of observation can be arbitrarily changed.
4. It has good vibration resistance and can adapt to the situation of large fluctuation of liquid level. It has simple structure, convenient installation and low maintenance cost.
5, with a beautiful magnetic steel corrector, on-site random adjustment of technical parameters.
