| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | European And American | Material: | 304/316 |
|---|---|---|---|
| Delivery Time: | 30days | Type: | Customize |
| Use: | Level Switch | Temperature: | -100-200 |
| High Light: | stainless float ball,ss float ball |
||

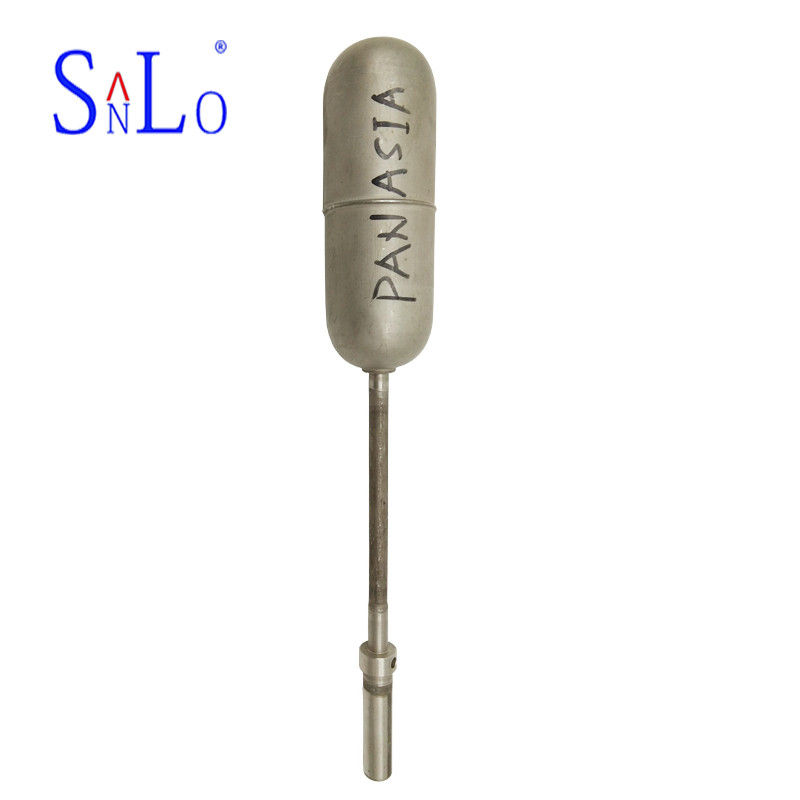

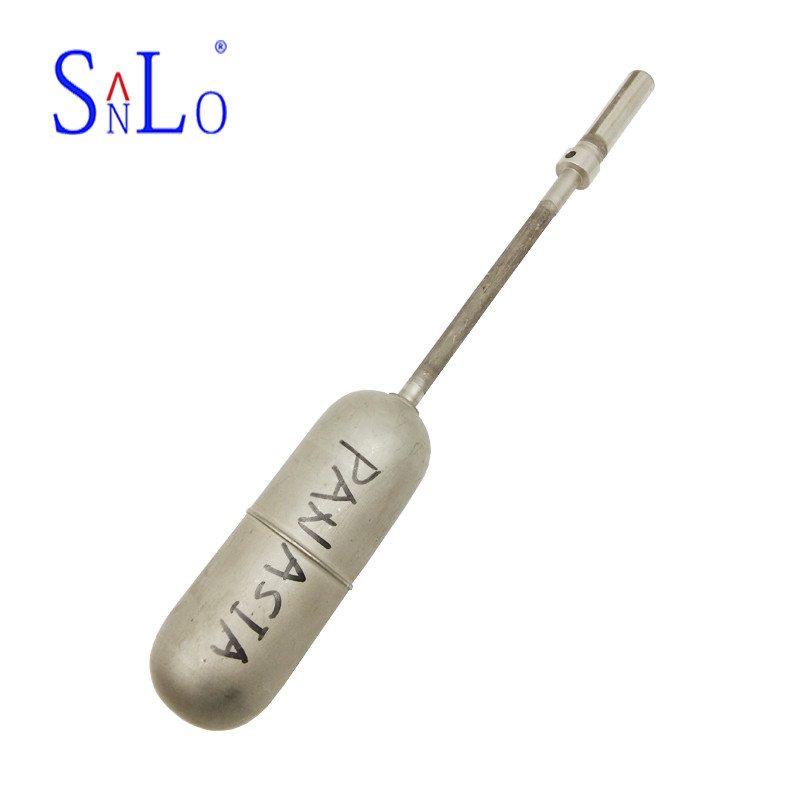

150*90 Long thread float with lever for level switch from china factory with top quality
Video: https://youtu.be/RdYYeWNtyjE
Working principle:
Rod float trap:
The basic characteristics of the lever float trap are the same as that of the free float type. The internal structure is that the float connecting rod drives the valve core, and the valve is opened and closed with the liquid level of the condensate. Lever-float traps increase the condensate displacement with dual seats for up to various traps
It has a large displacement and a maximum displacement of 100 tons/hour. It is the most ideal steam trap for large heating equipment. .
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ50 × 150 × M6 | 304 | Polishing/Character | Metric thread | ||
| Φ102 × 180 × M10 | 304 | Polishing/Character | |||
| Note:According to customers's specifications,Threaded customization(All specifications of precision float balls) | |||||
| Threaded ball float applies to all kinds of float valve hydraulic controlled valves. | |||||
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
How to make an order?
1.Sample approval
2.A. Big order: Client make 30% deposit after receiving our PI .
B. Sample & Small order: Client make 100% payment via Western Union
3.Client approve our sample, and get the testing report if any necessary
4.Production
5.Client approve our shipping sample
6.Arrange shipment
7.Supplier arrange necessary documents and send copy of these documents
8.Client finish the balance payments
9.Supplier send original documents or telex release the goods
