| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Magnetic Float |
| Minimum Order Quantity: | 200 |
| Price: | Negotiable |
| Packaging Details: | Box |
| Delivery Time: | 10-20days |
| Payment Terms: | T/T, Western Union |
| Material: | Stainless Steel | Size: | 42*52 |
|---|---|---|---|
| Magnetic Flux: | 60±3 | Morphology: | Polishing |
| Shape: | Cylindrical | Weight: | Customeize |
| High Light: | metal ball float,mechanical float |
||

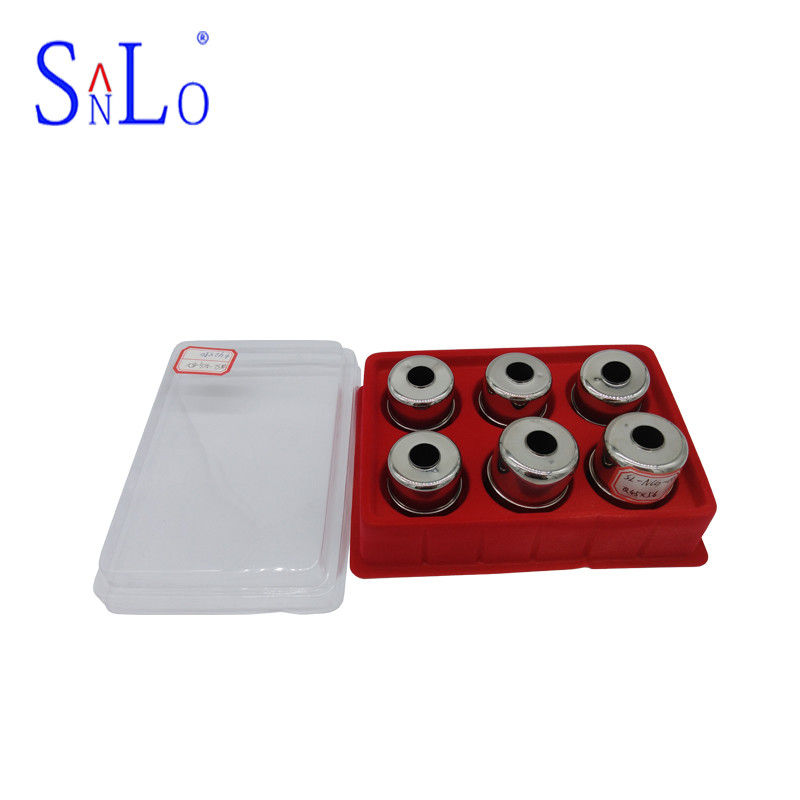

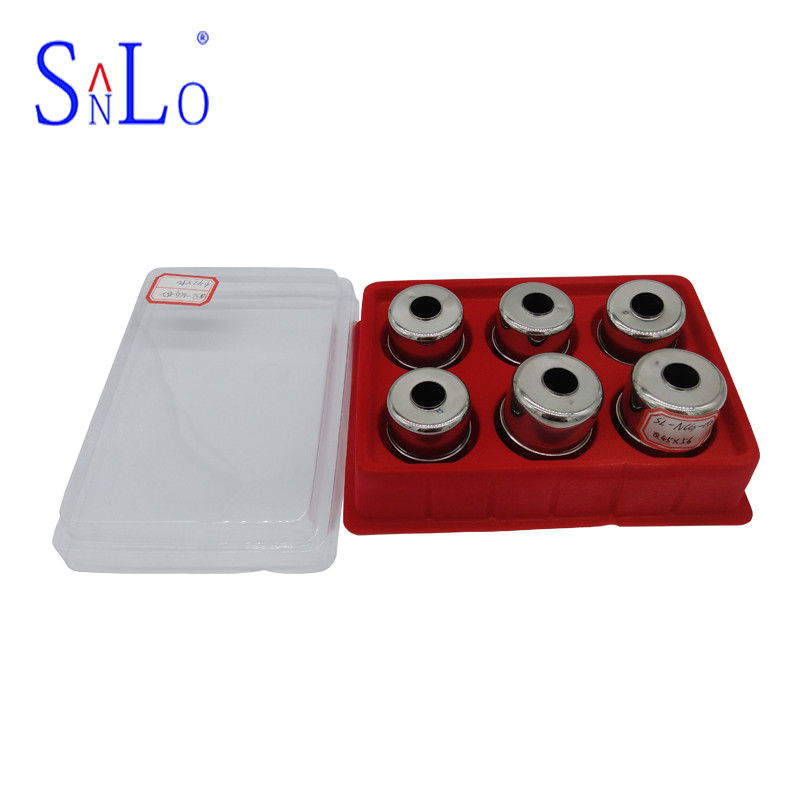

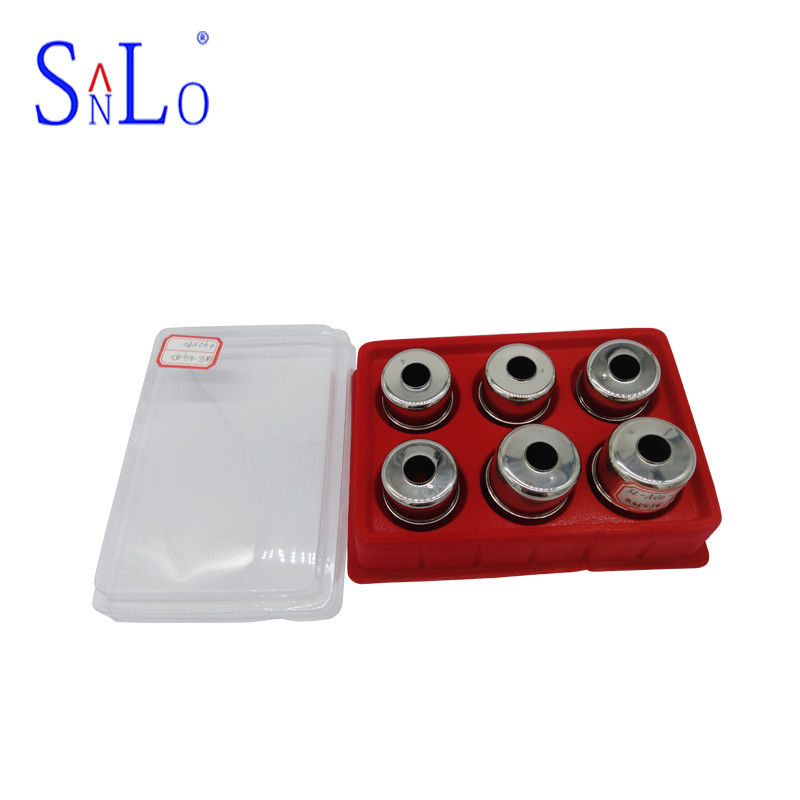

316L Stainless Steel Magnetic Level Switch Float Ball From China
Video: https://youtu.be/u59zyGOCDQE
Quick Details:
| Brand | SanLo | Type | SL-NCG-052 | Operating temperature | 100 |
| Weight | Claim | Material | 316L or 304 | High withstand voltage | 1MPA |
| certified product | ISO9000 | Type of magnet | Ferrite |
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 |
1. Convenient: 24th Hours sales/After-sales Service online or on the phone
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others
4.According to customers' drawing,customized specifications are welcomed
5.Low MOQ,small orders can be accepted.
FAQ
Q1: What's your MOQ?
A1:Our MOQ is depending on the inventory status.
Q2: Do you offer free sample?
A2:we can provide you a sample but you need to pay for it and the freight ,paypal and west union payment method is also accepted
Q3: Can you make packing and logo as customer request?
A3: Yes .we can .but you should pay for the extra cost caused .
Features:
Can be used for multi-point control, control switch position can be customized according to user needs.
The reed switch does not require a power supply and the contact life can reach 2 million times.
All switch outlets are in the same junction box, and external construction wiring is inexpensive.
Compared with other types of liquid level switches, the RF type has the lowest unit price.
Stainless steel float overview:
The stainless steel float valve is a hydraulic control valve that has multiple functions to control the liquid level of the pool. The float valve is mainly installed at the water inlet of the pool or the elevated water tower. When the water level reaches the set height, the main valve is controlled by the float ball to close the water inlet to stop the water supply; when the water level drops, the main valve is controlled by the float switch to open the water inlet. Fill the pool with water to achieve automatic water replenishment. The liquid level control is accurate and free from water pressure interference; the float ball valve can be installed at any position according to the height of the pool and the use space. It is convenient for maintenance, debugging, inspection, reliable sealing and long service life. The float valve has reliable performance, high strength, and is flexible and flexible for pipes up to 100mm.
