Customer Liquid Level Folat , Stainless Steel Magnetic Float Ball From Sanlo Company

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: Magnetic Float
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 10days-30days
Payment Terms: T/T, Western Union
Detail Information
Surface: Matte Polished Thickness: Customer
Magnetic: Yes Applicable Medium: Water
Flow Direction: Unidirectional Delivery: 10days-30days
High Light:

stainless steel float ball

,

metal ball float


Product Description

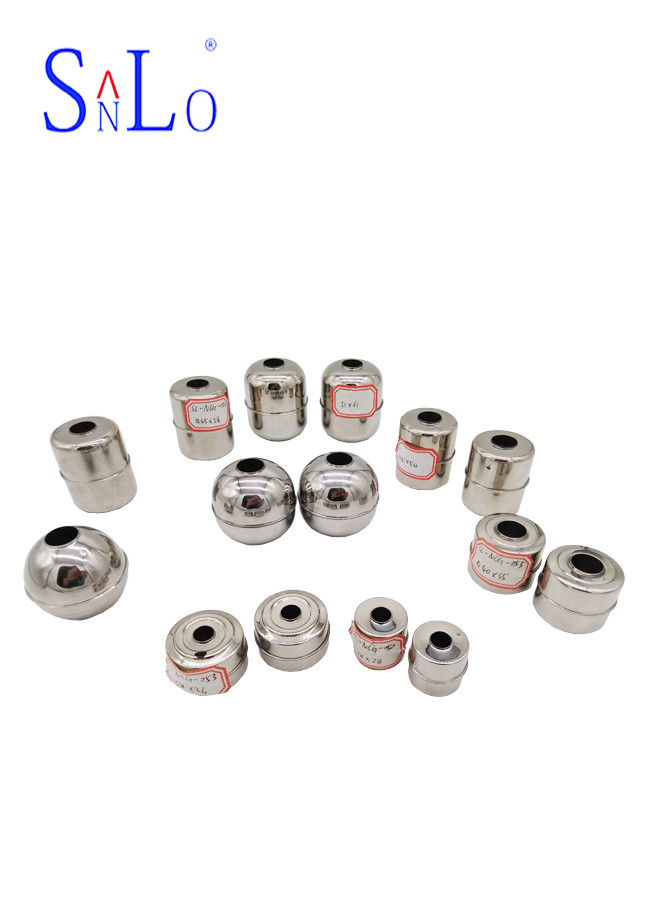

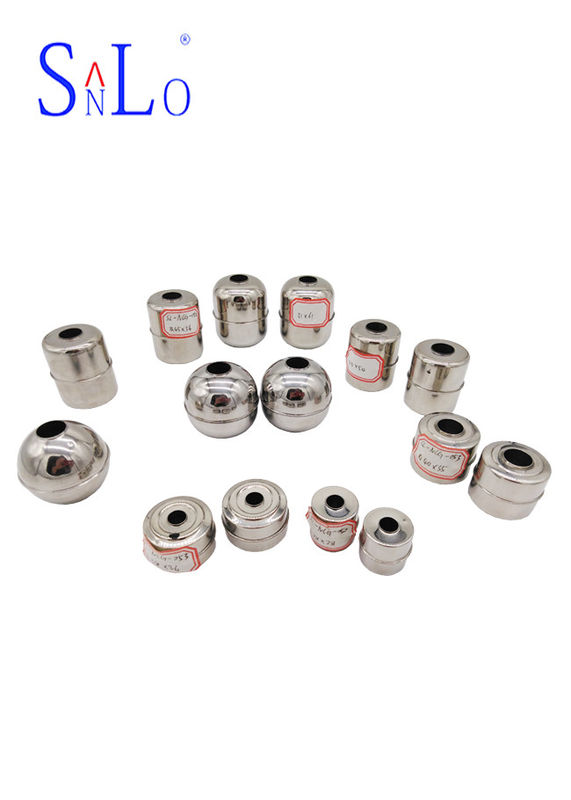

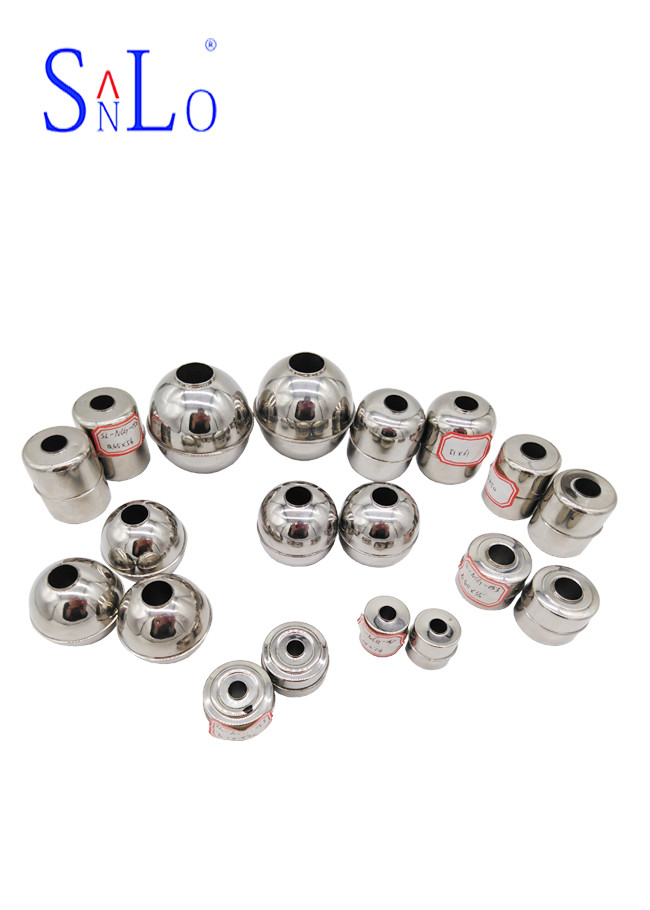

Customer Liquid Level Folat , Stainless Steel Magnetic Float Ball From Sanlo Company





Video: https://youtu.be/IZC9AvFdK1M



Description:



       The small float liquid level switch is specially used for liquid level detection of various medium and small pressure and pressurized liquid storage tanks, remote transmission of on-site indication signals, liquid level alarm, and can be applied to various sanitary, toxic, corrosive media and explosive. Gas hazardous locations. Available in a variety of mounting styles for all types of containers.



Normal type Technology:

Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
Φ25×25×Φ9.5 316L 1.0 -100~200 >0.85 40±3 5.5±5
Φ25×28×Φ9.5 316L 1.0 -100~200 >0.85 40±3 6±0.5
Φ28×28×Φ9.5 316L 1.0 -100~200 >0.80 40±3 8±1
Φ38×26×Φ9.5 316L 1.0 -100~200 >0.50 40±3 10.5±1
Φ40×35×Φ15.5 316L 1.0 -100~200 >0.60 60±3 24±1
Φ45×50×Φ15.5 316L 1.0 -100~200 >0.60 60±5 26±1
Φ45×56×Φ15.5 316L 1.0 -100~200 >0.50 60±5 ±
Φ49×50×Φ15.5 316L 1.0 -100~200 >0.50 40 60,100 27±1 32±1
Φ51×61×Φ15.5 316L 1.0 -100~200 >0.50 60±5 42±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5
Φ65×111×Φ25 304 1.0 -100~200 > 100±5
Φ30×Φ9.5 316L 3.5 -100~200 >0.80 40±3 7.5±1
Φ52×Φ15.5 316L 2.5 -100~200 >0.55 60±5 32±1
Φ75×Φ23 304 2.5 -100~200 >0.50 60±5 98±3
Φ125×Φ23 304 2.5 -100~200 >0.50 60±5 315±5
This kind of ball float applies to float switch,and level control device etc.



                                               Customer Liquid Level Folat , Stainless Steel Magnetic Float Ball From Sanlo Company

Our Service-

1)Reply your inquiry in 24 working hours

2)Experienced staffs answer all your questions in professional and fluent english

3)Customized design in avaliable OEM&ODM are welcome

4)Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs

Online Service: any inquiry, please contact with email: . We will reply you within 12 hours.





Test:

       Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
      The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.





Our Report:

Customer Liquid Level Folat , Stainless Steel Magnetic Float Ball From Sanlo Company
