| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Customer-Made |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Shipment: | DHL/UPS/TNT/FEDEX | Medium: | Water |
|---|---|---|---|
| Material: | Stainless Steel | Thickness: | 0.5-4.0 |
| Operating Temperature: | Normal Temperature | Standard: | National Standard |
| High Light: | stainless steel float ball,metal ball float |
||

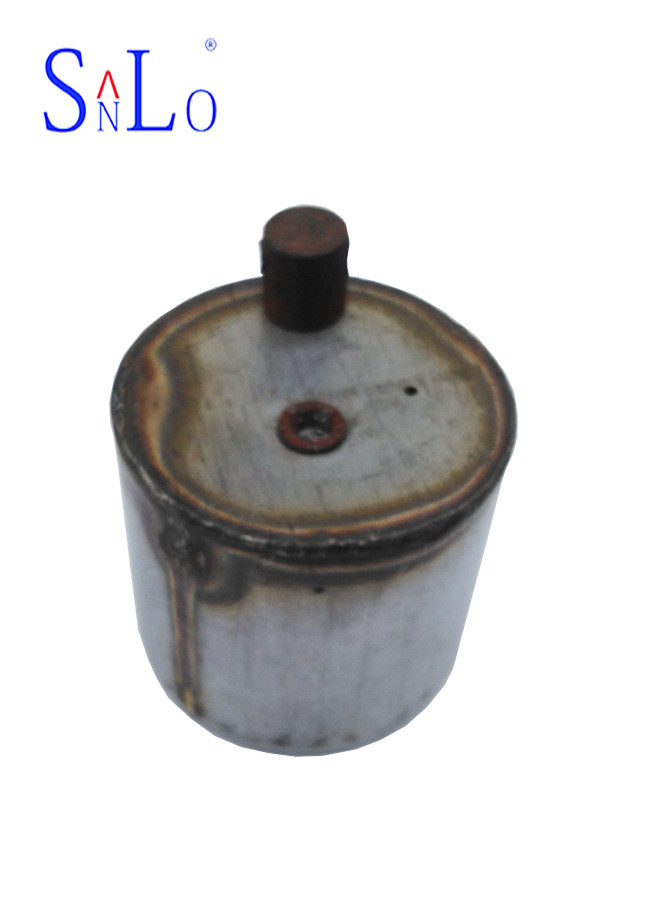

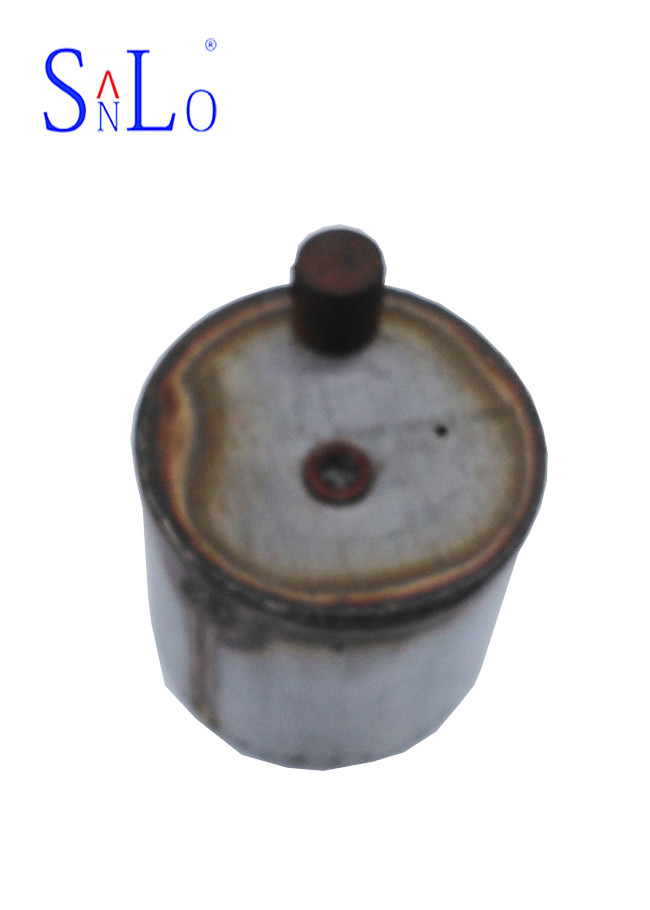

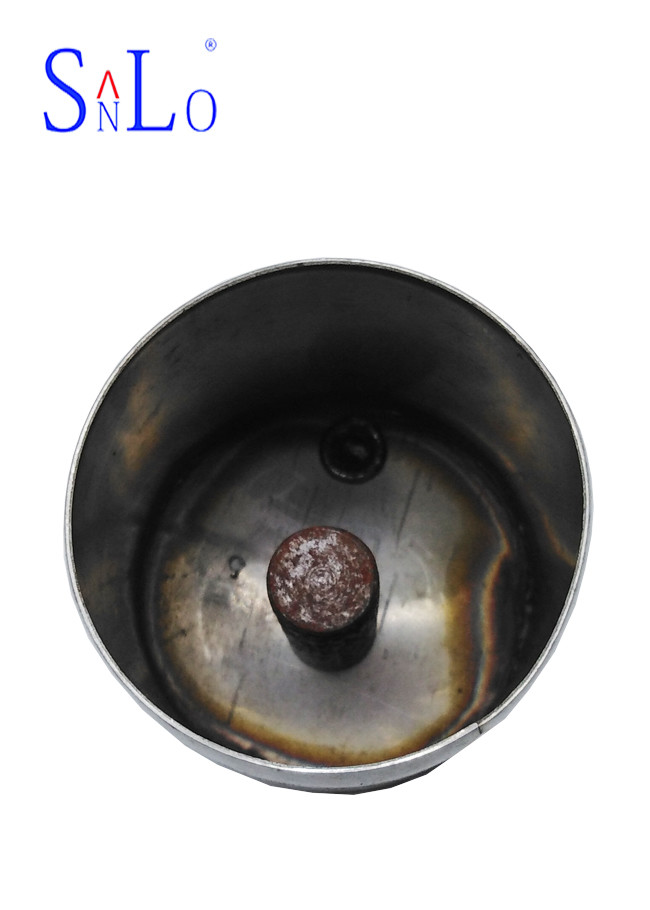

National Standard Stainless Steel Drawing Parts For Bucket Trap
Video: https://youtu.be/UwXdfk3cNhA
Description:
The inside of the inverted bucket type trap is an inverted bucket for the liquid level sensitive component, the bucket opening is downward, and the inverted bucket connecting the lever drives the valve core opening and closing valve. The inverted bucket type trap can discharge air, is not afraid of water hammer, and has good anti-fouling performance.
Normal type Technology:
| Type | Material | Thickness | DN | Morphology |
| Head shape | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Long Dome | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Cylindrical | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Note:According to customer's requirements,the drawing can be custom made,and the special request will mark out on the drawings | ||||
Working principle:
The inside of the inverted bucket type trap is an inverted bucket for the liquid level sensitive component, the bucket opening is downward, and the inverted bucket connecting the lever drives the valve core opening and closing valve. The inverted bucket type trap can discharge air, is not afraid of water hammer, and has good anti-fouling performance. The degree of undercooling is small, the leakage rate is less than 3%, the maximum back pressure is 75%, the connection is more, and the sensitivity is not as good as that of the free float trap. Because the inverted bucket type steam trap is closed by steam buoyancy, the working pressure difference is less than 0.1MPA, which is not suitable for use.
When the device is just started, the air in the pipeline and the low-temperature condensed water enter the trap, and the inverted bucket falls by its own weight. The inverted bucket connects the lever to drive the valve to open the valve, and the air and low-temperature condensate are quickly discharged. When the steam enters the inverted bucket, the steam of the inverted bucket generates upward buoyancy, and the inverted bucket rises to connect the lever to drive the valve core to close the valve. There is a small hole in the inverted bucket. When a part of the steam is discharged from the small hole, the other part of the steam generates condensed water. The inverted bucket loses buoyancy and sinks by its own weight. The inverted bucket connects the lever to drive the valve to open the valve. Work, intermittent drainage.
