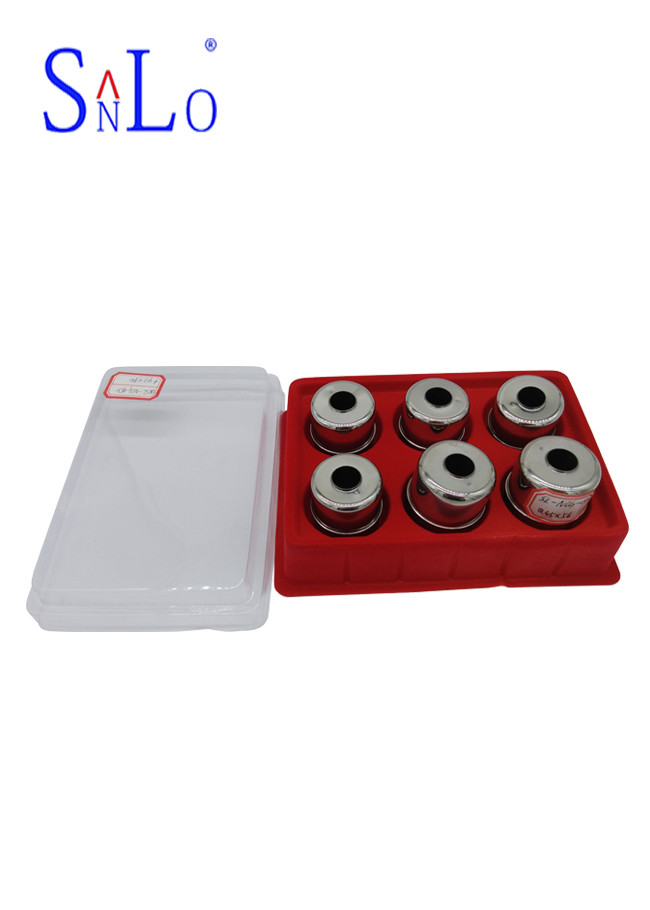

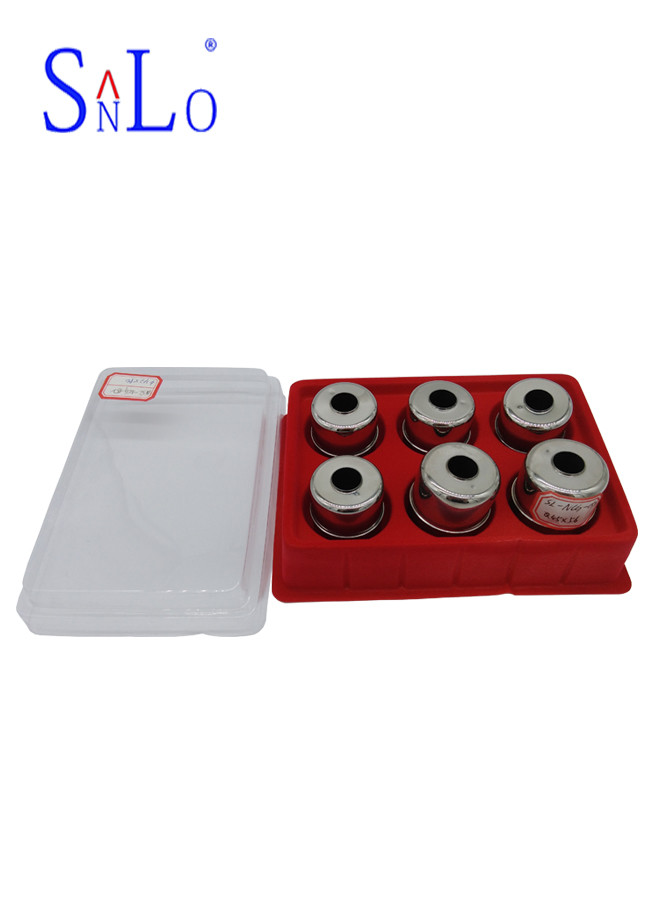

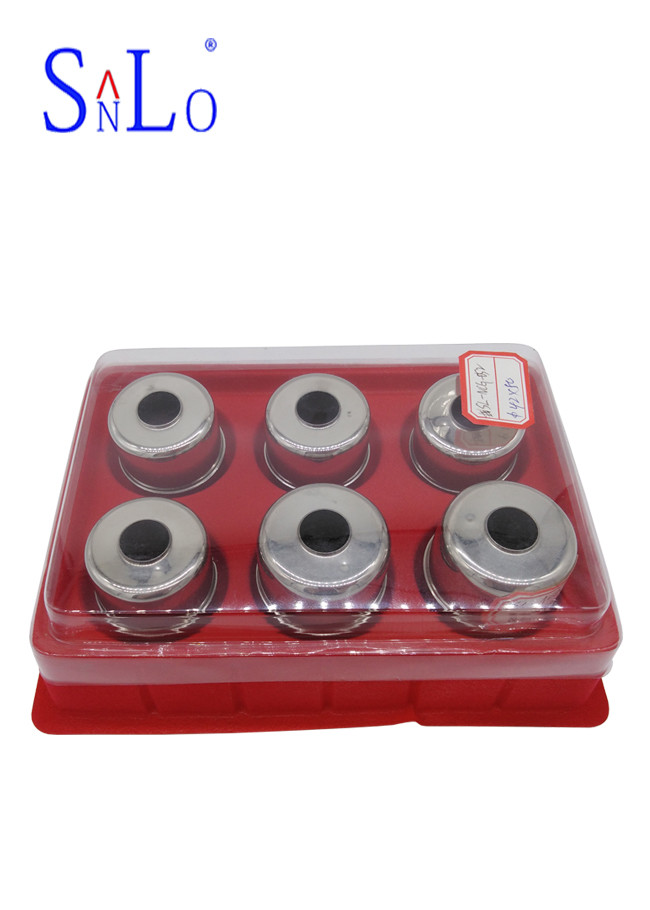

316L Magnetic Float Ball Liquid Level Transducer Accessories SL-NCG-052

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: SL-NCG-053
Minimum Order Quantity: 200
Price: negotiable
Packaging Details: Box
Delivery Time: 10days-20days
Payment Terms: T/T, Western Union
Detail Information
Type Name: SL-NCG-052 Company: Manufacturing And Trade
Application: Switch Standard: National Standard
Applicable Medium: Water Color: Polishing Color
High Light:

stainless steel float ball


mechanical float

Product Description

          Good Polishing Float For Switch, ISO9000 316L Magnetic Float Ball From Sanlo








        We can produce according to customers' drawings or samples. Our advantages are fast delivery, good quality, competitive price and strict testing. Our products have passed ISO9001, CQC, CNAS, SGS and other certifications to ensure the quality of our products. and service


Working principle:


     The float switch is a liquid level control device with simple structure and convenient use. It does not need to provide power supply and has no complicated circuit. It has the advantages of smaller volume and longer working life than general mechanical switches. As long as the material is selected correctly, any liquid or pressure and temperature can be used. It is obtained in the shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. A wide range of applications.

      Technical advantages of the float switch: The float switch does not contain components that cause malfunctions and bellows, springs, seals, etc. Instead, a straight float is used to drive the internal magnet of the switch, and the simple lever of the float switch causes the switch to act instantaneously. The float cantilever angle is designed to prevent the float from being vertical.


Normal type Technology:

Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
Φ45×50×Φ15.5 316L 1.0 -100~200 >0.60 60±5 26±1
Φ45×56×Φ15.5 316L 1.0 -100~200 >0.50 60±5 ±
Φ49×50×Φ15.5 316L 1.0 -100~200 >0.50 40 60,100 27±1 32±1
Φ51×61×Φ15.5 316L 1.0 -100~200 >0.50 60±5 42±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5


                           316L Magnetic Float Ball Liquid Level Transducer Accessories SL-NCG-052


Q:How long would feedback be?
A:As soon as we can,usualy reply you in 24 hours.

Q:Could I get samples?
A:Samples are available.

Q:What is the usual payment method for your items?
A:T/T, Western Union, Secure payment, Paypal.

Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient
Generally,30% in advance,70% before shipment
Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirments

1.Free samples
2.100% guarantee for our quality.
3.Our products have ISO certificate.
4.Professional manufacturer with 20years experience.
5.Our float balls are sold all over the world.
