| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-052 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | box |
| Delivery Time: | 10-20days |
| Payment Terms: | T/T, Western Union |
| Company: | Manufacturer And Trade | Drive Mode: | Hydraulic Control |
|---|---|---|---|
| Stress Environment: | Atmospheric Pressure | Color: | Polishing |
| Size: | 42*52 | Pressure: | 1MPA |
| High Light: | metal ball float,mechanical float |
||

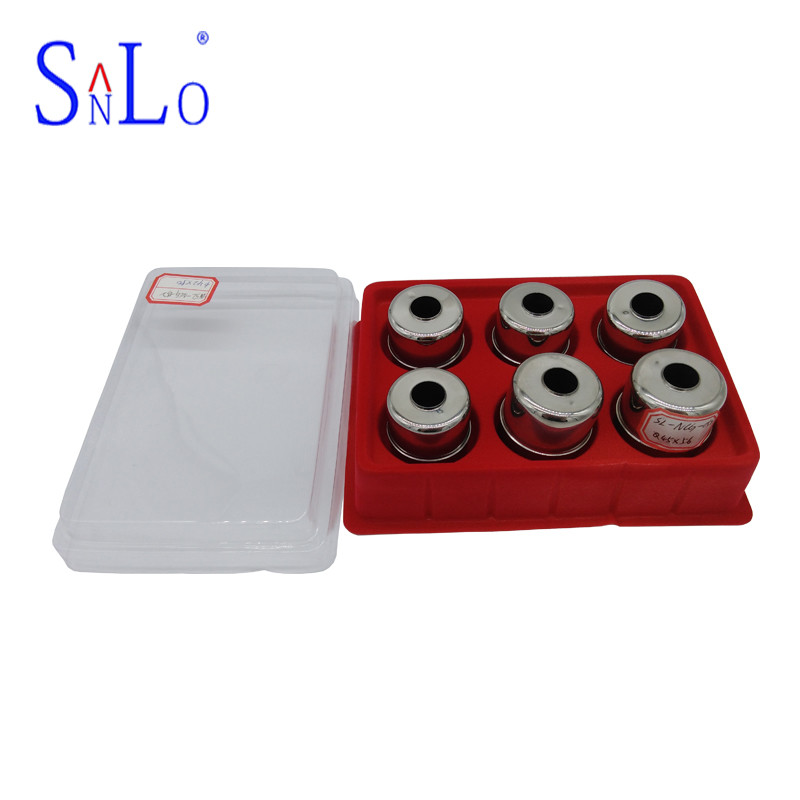

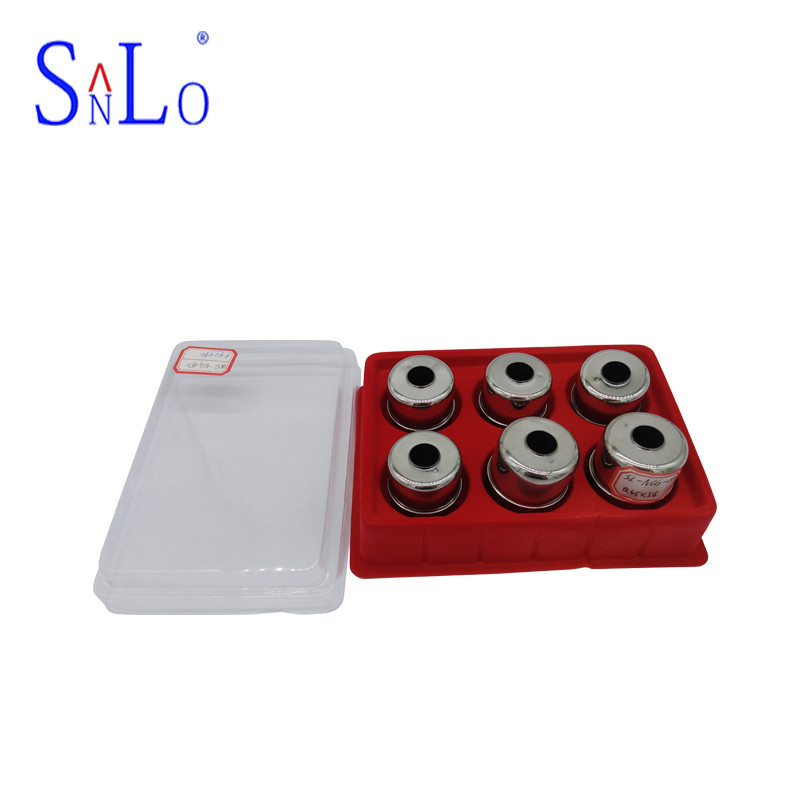

High Quality Magnetic Float, 42*52 Stainless Steel Float Ball From China
Video: https://youtu.be/u59zyGOCDQE
Description:
We can produce according to customers' drawings or samples. Our advantages are fast delivery, good quality, competitive price and strict testing. Our products have passed ISO9001, CQC, CNAS, SGS and other certifications to ensure the quality of our products. and service.
Custom made type Technology:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 |
Application Guide:
The float switch is adapted to control the operation of the pump to maintain the liquid level; to control the automatic loading and unloading of the tank; to control the liquid level or supply signals, such as a fuel tank, an automatic cleaning system, a hydraulic tank, a low pressure boiler, and a sewage treatment system.
The small float level switch is a simple and easy to use liquid level control part. It has no complicated circuit and will not be disturbed.
Any liquid, pressure or temperature can be used as long as the material is selected correctly.
The relationship between the properties of the liquid medium and the float:
1. When the specific gravity of the liquid is different, the action position of the float ball will change. Generally, when the SG is smaller than the water, the portion of the float ball immersed in the liquid will increase relatively.
2. The reference weight of the float switch product is water (SG=1). Therefore, when using the float ball, the proportion SG of the liquid level must be considered, which must be greater than the float ball size.
Otherwise, the float switch cannot float.
3. For liquids with high viscosity and not dry, generally use a float ball with a large outer diameter.
4. The float switch uses a magnet to sense the reed switch, so the measured liquid level should be free of iron filings, otherwise it will affect the movement of the floating team switch.
FAQ:
Which payment terms can you accept?
T/T, Western Union, PayPal.
Do you have stocks?
Some product have stock.
What are your shipping ways?
By sea, by air and by express (DHL, Fedex, UPS, TNT, EMS etc.)
Can you manufacture magnet in special size?
Yes, we can.
Our service :
1.Good pre- sale & after sale service
2.Factory audited by SGS , MSDS, ISO , etc .
3.Quick delivery time for decent orders .
4.Own test department for every batch products
5. Free samples could be provided
Our Product:
