| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Customer-Made |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 10-30days |
| Payment Terms: | T/T, Western Union |
| Main Size: | Customer-Made | Polishing: | Polishing |
|---|---|---|---|
| Delivery: | 10-30days | Shipping Mark: | Customer |
| H.S Code: | 90932900090 | Stress Environment: | Atmospheric Pressure |
| High Light: | metal ball float,mechanical float |
||

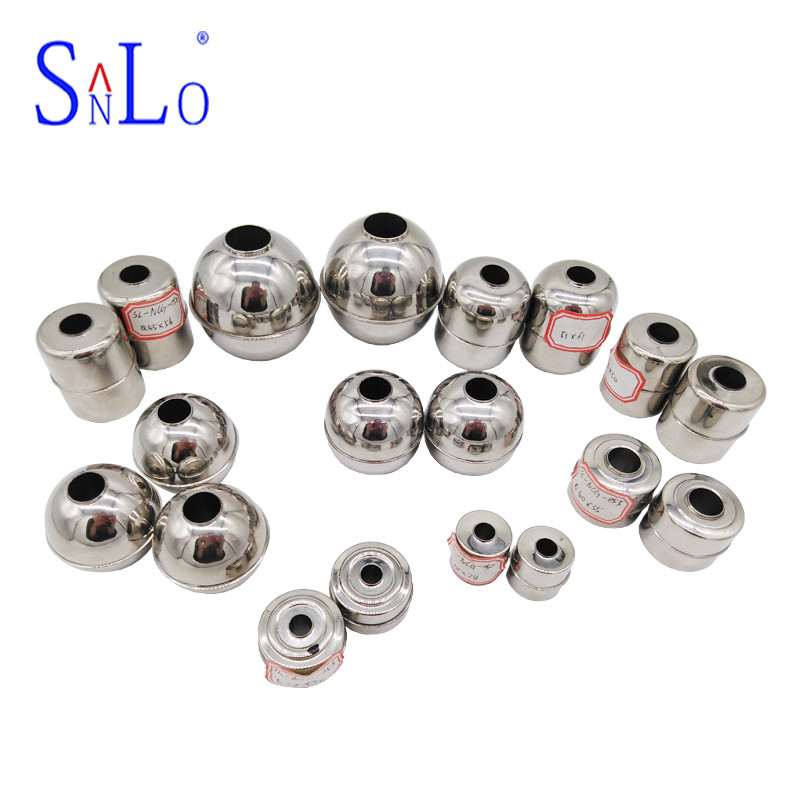

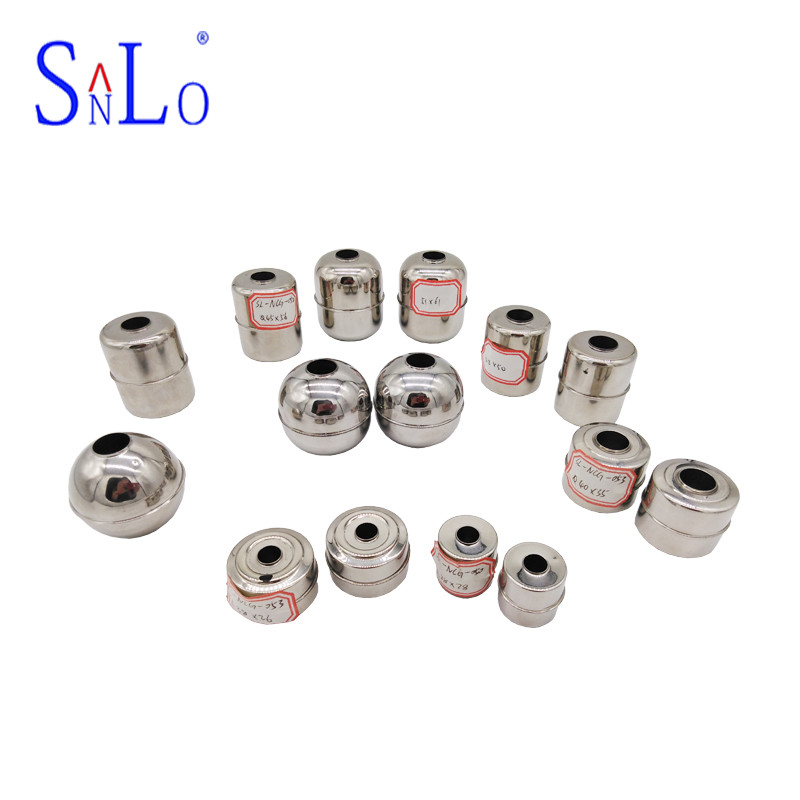

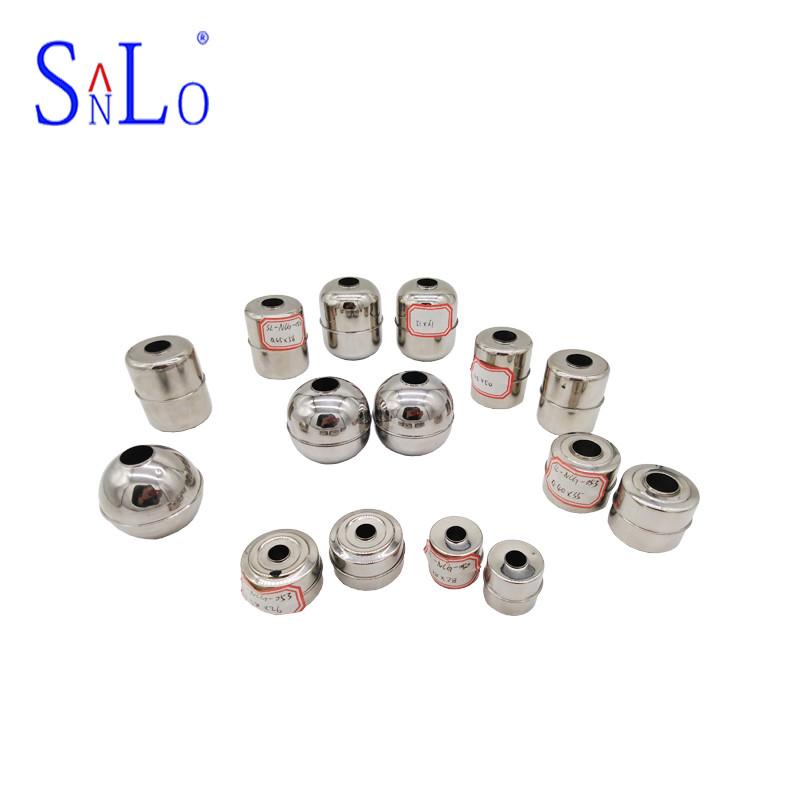

Customer High Quality Float Ball,316L Steel Float 35*25 For Level Switch
Video: https://youtu.be/IZC9AvFdK1M
Description:
We can produce according to customers' drawings or samples. Our advantages are fast delivery, good quality, competitive price and strict testing. Our products have passed ISO9001, CQC, CNAS, SGS and other certifications to ensure the quality of our products. and service
Custom made type Technology:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | |
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 |
The float switch is a liquid level control device with simple structure and convenient use. It does not need to provide power supply and has no complicated circuit. It has the advantages of smaller volume and longer working life than general mechanical switches. As long as the material is selected correctly, any liquid or pressure and temperature can be used. It is obtained in the shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. A wide range of applications.
Technical advantages of the float switch: The float switch does not contain components that cause malfunctions and bellows, springs, seals, etc. Instead, a straight float is used to drive the internal magnet of the switch, and the simple lever of the float switch causes the switch to act instantaneously. The float cantilever angle is designed to prevent the float from being vertical.
Features:
1. The liquid level measurement suitable for the liquid medium in the container can be equipped with functions such as remote transmitter and liquid level controller in addition to the on-site display.
2. The display is intuitive and eye-catching, and the display direction can change the display direction according to user requirements.
3. The measuring range is large and is not limited by the height of the container.
4. The display component is completely isolated from the measured medium, so the sealing is good, reliable and safe.
5. Simple structure, easy installation and simple maintenance.
6. Corrosion resistant and explosion proof.
Finally---Why you choose us?
1. Magsource qualified by ISO9001.
2. 10 years export experiences makes us well know how to satisfy you.?
3. The best quality with reasonable price.
4. Fast and on-time delivery.
Report:
