| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-052 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | box |
| Delivery Time: | 10-20days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000/day |
| Pressure: | 1MPA | Type: | Customer Made |
|---|---|---|---|
| Temperature: | Customer | S.G: | Customer |
| Weight: | Customer | ||
| High Light: | metal ball float,mechanical float |
||

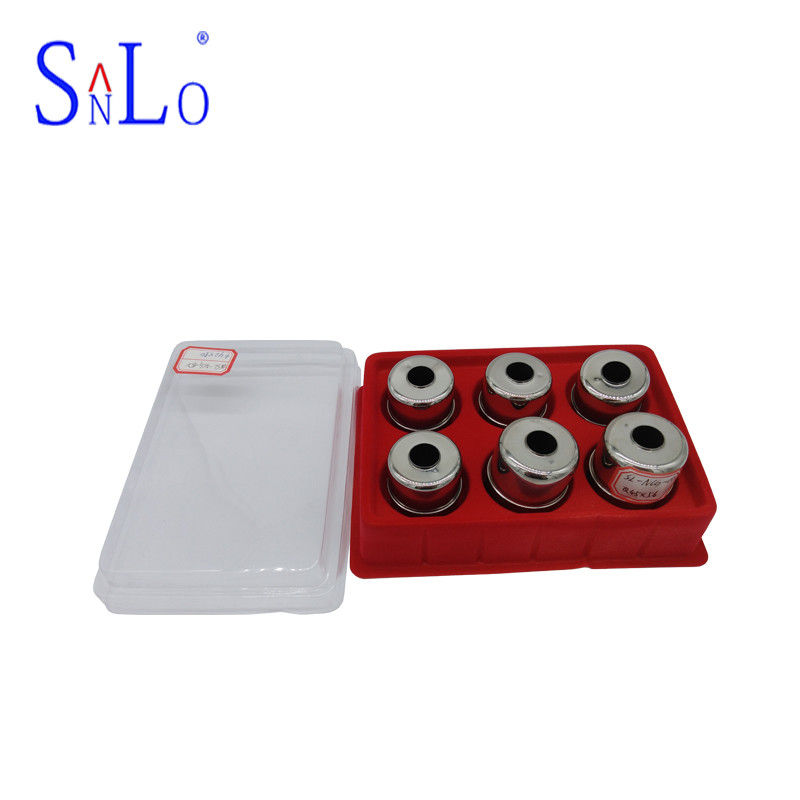

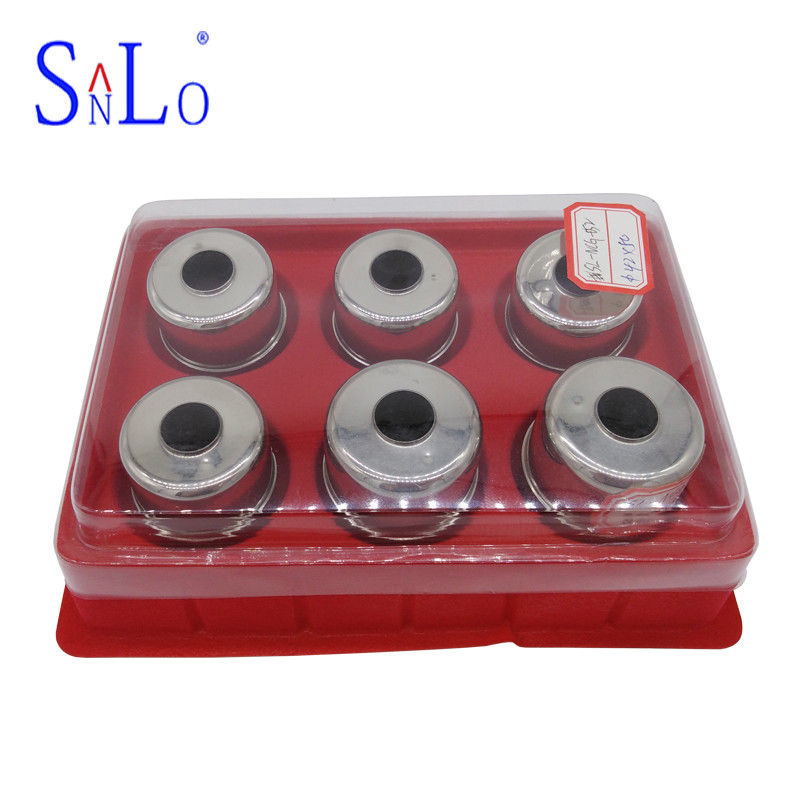

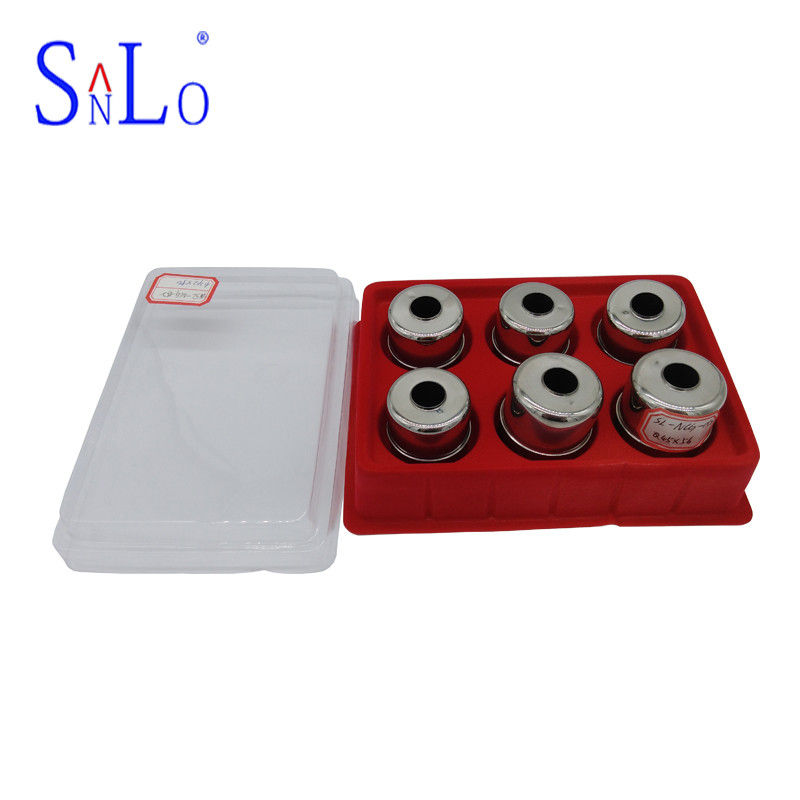

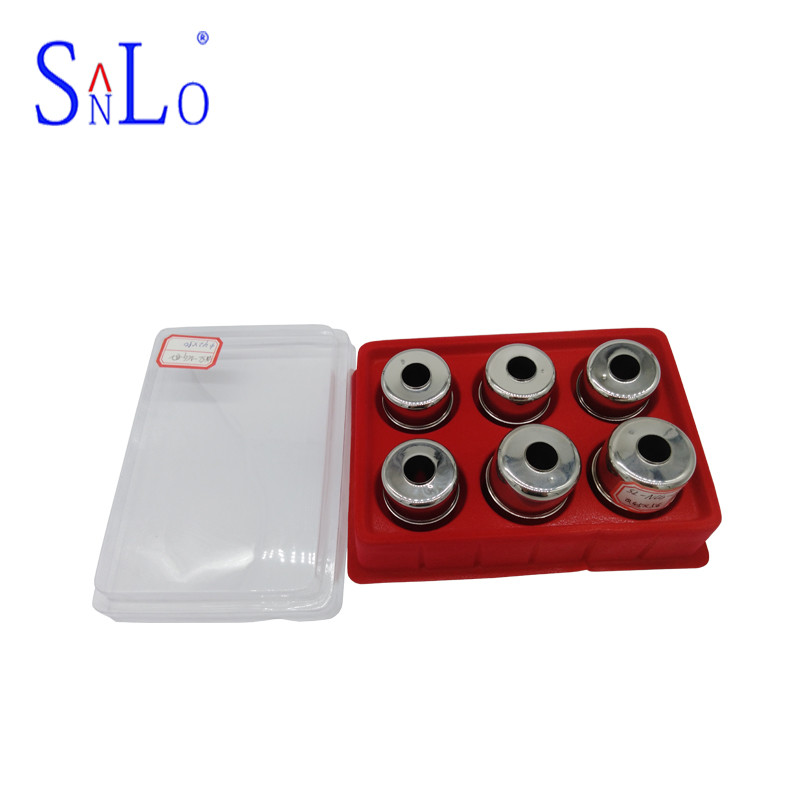

Hot Sale 316L Steel Magnetic Float Ball 42*52 For Level Switch
Video:https://youtu.be/u59zyGOCDQE
Working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed
switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | |
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | |
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
Features:
1. The liquid level measurement suitable for the liquid medium in the container can be equipped with functions such as remote transmitter and liquid level controller in addition to the on-site display.
2. The display is intuitive and eye-catching, and the display direction can change the display direction according to user requirements.
3. The measuring range is large and is not limited by the height of the container.
4. The display component is completely isolated from the measured medium, so the sealing is good, reliable and safe.
5. Simple structure, easy installation and simple maintenance.
6. Corrosion resistant and explosion proof.
FAQ:
1. Can you seed a sample for reference?
We are glad to send samples for your inspection. Samples are free, but you may need to pay the express fees.
2. How to confirm the quality with us before start to produce?
(1) You can get a free sample and choose from it, and then we make the quality according to that.
(2) Send us your samples, and we make the switch/sensor according to your quality.
3. How to solve the quality problems after sales?
(1) Take photos of the problems and send to us
(2) Take videos of the problems and send to us
(3) Send back the physical problem switch/sensor by express to us
After we comfirm the problems, such as caused by machine, etc, Within three days, we will draw up the satisfied program for you.
