| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Magnetic Float Ball |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Export Market: | European And American | Transport Package: | Carton |
|---|---|---|---|
| Company: | Manufacturer And Trade | H.S Code: | 9032900090 |
| Delivery: | 10-20days | Morphology: | Polishing |
| High Light: | metal ball float,mechanical float |
||

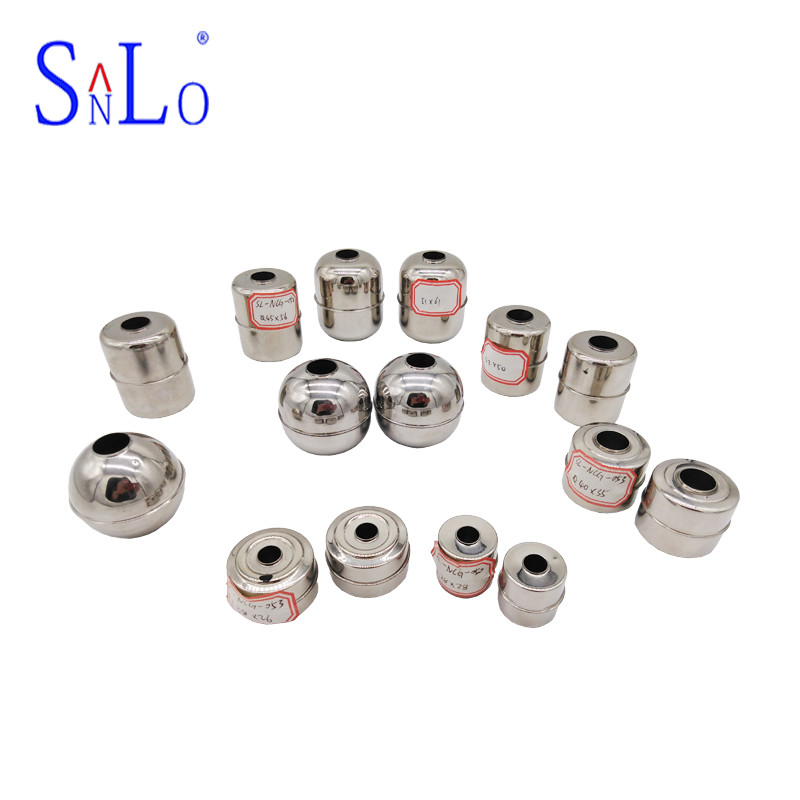

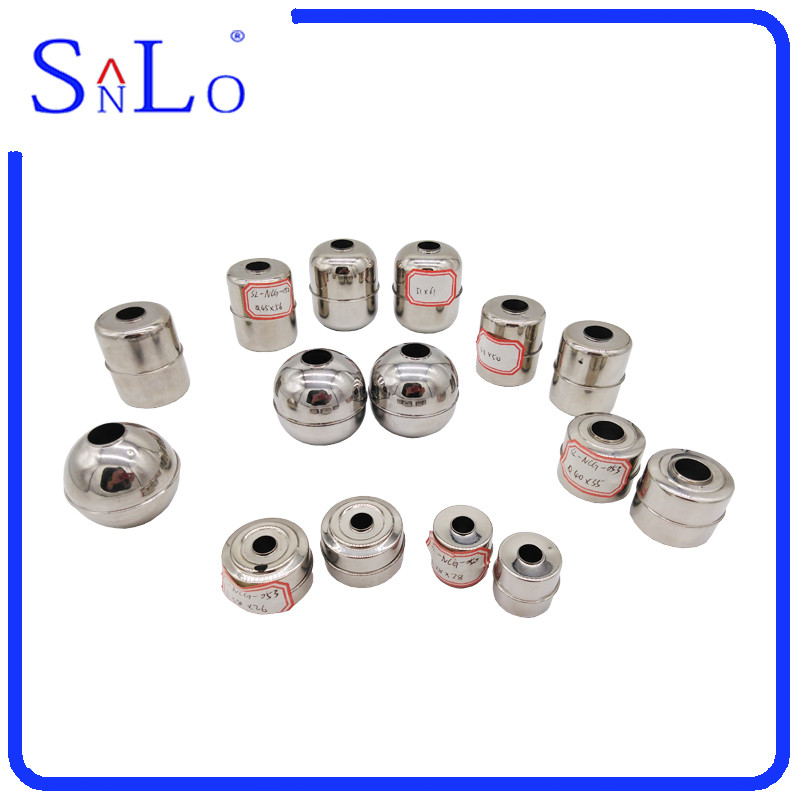

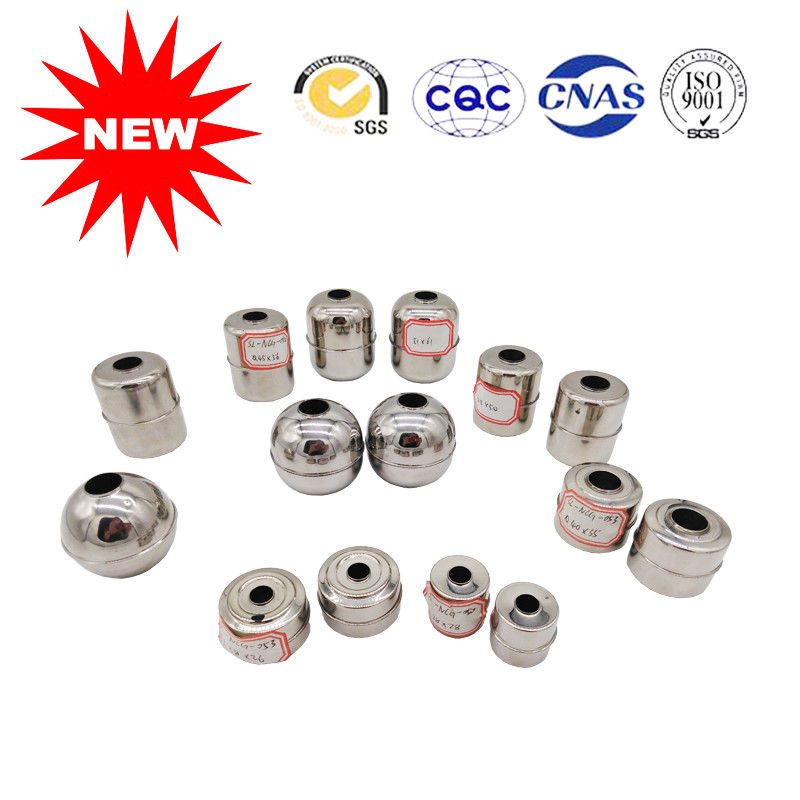

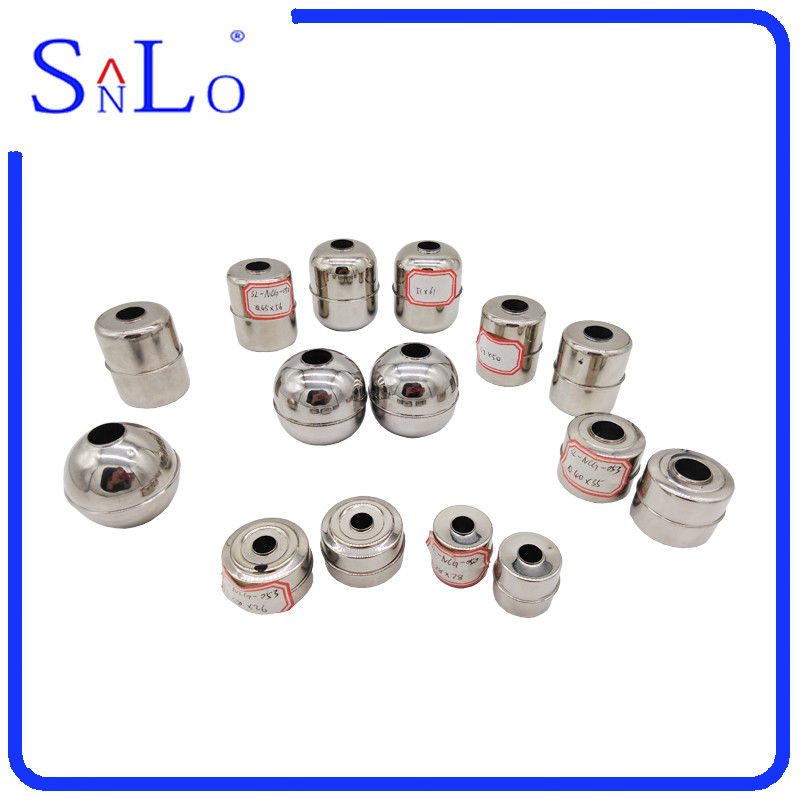

Customer 40*35 Polishing Stainless Steel Magnetic Switch Float Ball From China
Video: https://youtu.be/DICI1wJxflI
Description:
The float level gauge is designed according to the Archimedes buoyancy principle. When the liquid level of the container changes, the float moves up and down. Due to the magnetic action, the reed switch of the float level gauge is magnetically attracted. The resistance inside the sensor changes linearly, and then the converter converts the change of the resistance value into a standard DC signal output of 4 mA to 20 mA to realize long-distance detection and control of the liquid surface.
Custom made type Technology
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
Product:
 |
|
|
working principle:
Generally, one or more reed switches are arranged in the sealed non-magnetic metal or plastic tube, and the floating ball with the annular permanent magnet inside is fixed in the relevant position of the reed switch in the rod diameter, so that the floating ball is Floating up and down within a certain range, using the magnet inside the float to attract the closure of the reed switch, generating a switching action to control the liquid level.
Normally open and normally closed are states when no liquid is injected. The connecting rod float ball level switch is widely used for liquid level control and alarm in various industries such as electronics, chemical industry and water treatment. The connecting rod float ball level switch is a fixed product.
In order to facilitate the correct selection and customization, please inform the terminal box specifications, connection specifications, material characteristics, float specifications and related component specifications, body length, and operation mode when ordering. That is, normally open or normally closed type; at the same time, the temperature, pressure, specific gravity, acid and alkali resistance of the liquid to be tested should be reported to select a float ball suitable for the specification.
