| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Country: | European And American | Medium: | Water |
|---|---|---|---|
| Material: | 316L | Drawing: | From Customer |
| Size: | Customize/140 | Polishing: | Yes |
| High Light: | stainless steel float ball,mechanical float |
||

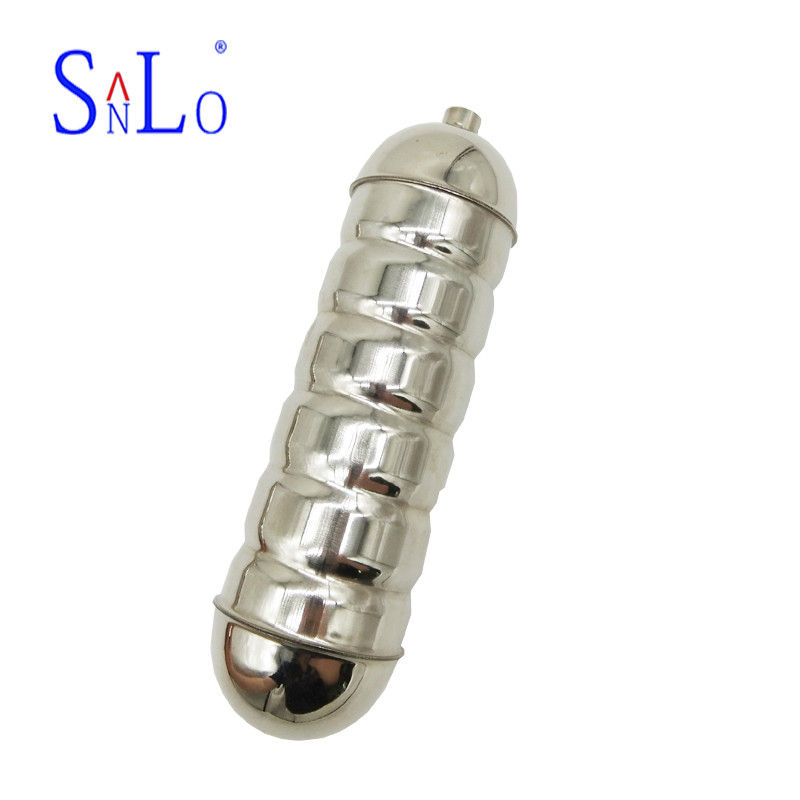

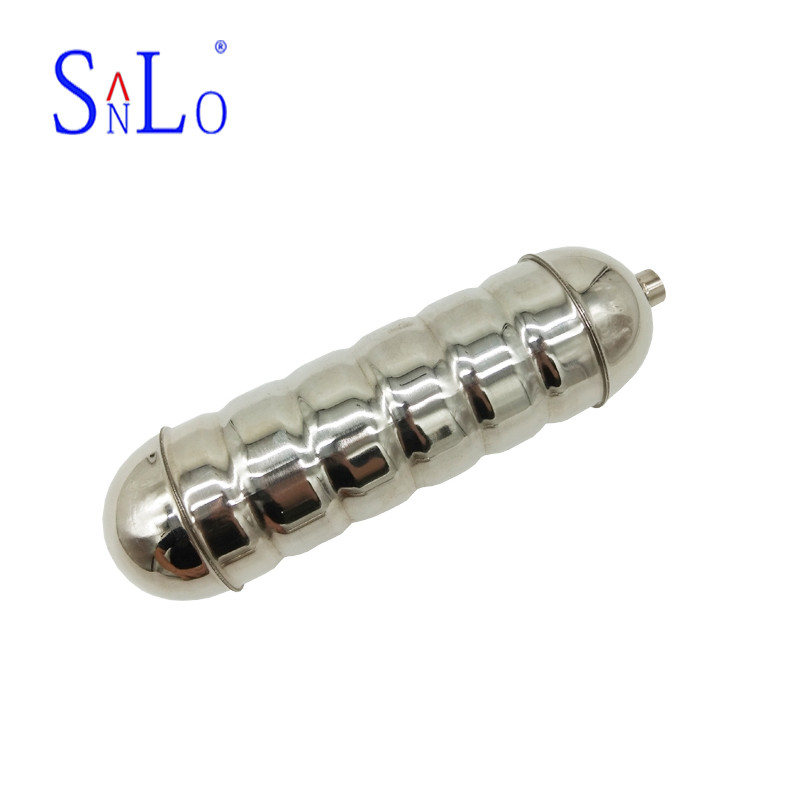

Customize Magnetic float ball 140 from Sanlo company with the top quality
Video: https://youtu.be/RdYYeWNtyjE
Our common magnet materials:
Ferrite is a metal oxide having ferrimagnetic properties. In terms of electrical properties, ferrite has a much higher electrical resistivity than elemental or alloy magnetic materials and has a higher dielectric property. The magnetic properties of ferrite also exhibit high magnetic permeability at high frequencies. Therefore, ferrite has become a non-metallic magnetic material that is widely used in the field of high-frequency weak electricity.
Our Normal Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ50×125 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×240 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| This kind of ball float suitable for magnetic flap applications. | |||||||
Many different materials are available for float balls, but the commen material for our floats are stainless steel.
Stainless steel floats are ideal for high pressure, high temperature applications, or where the greater strength and corrosion resistance of this material are necessary. They also are used in less severe applications to assure that the float will last as long as the rest of the product.
Stainless steel eliminates many float failures on low-pressure steam traps, float valves, float boxes, etc.
Stainless steel floats may be used safely at pressures up to 1,000 lbs, often with relatively thin walls for maximum buoyancy. Standard spherical floats of
stainless steel weigh considerably less than seamless copper floats of the same size and have a corresponding increase in effective buoyancy.
They love us:
1. High quality products, we have advanced equipment and good quality system to ensure the products quality.
2. Competitive prices and quickly delivery.
3. Good service. Usually we will reply customer within 24 hours.
4. Various payment way.
