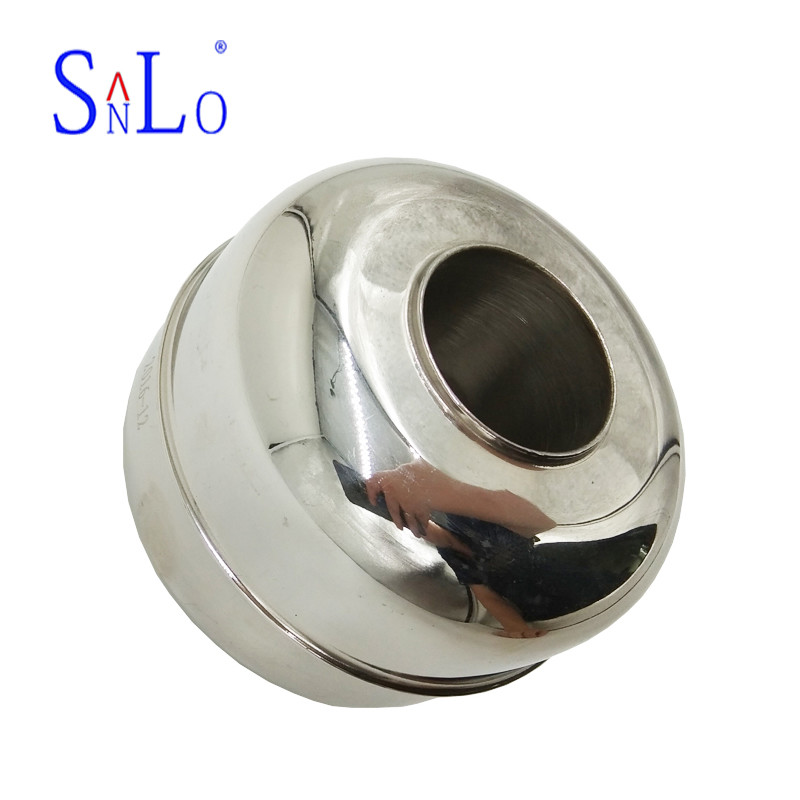

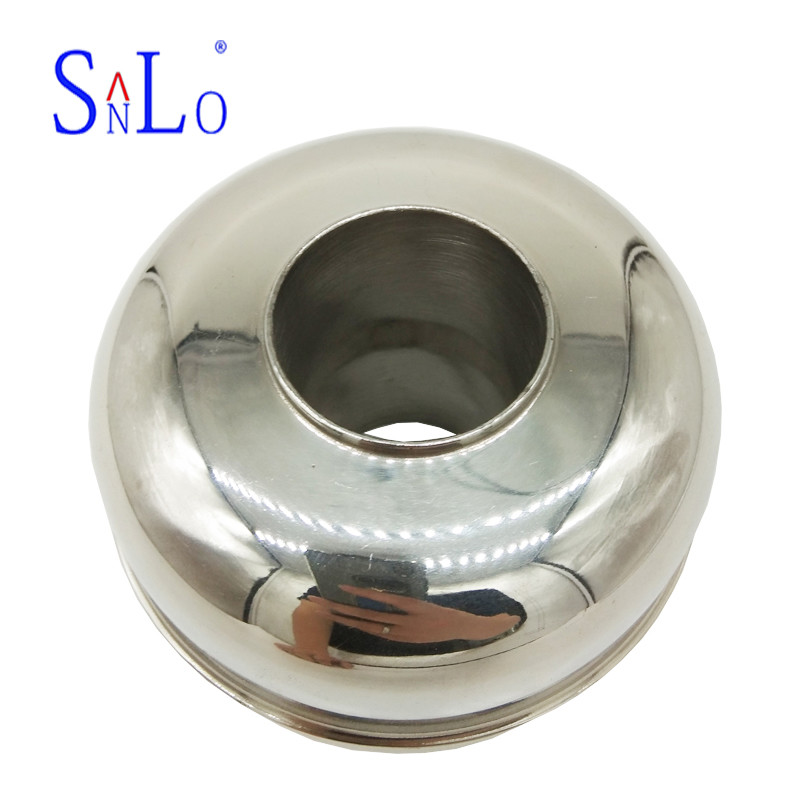

Water Medium Magnetic Float Ball With Surface Polished 1.0Mpa Pressure

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Detail Information
Main Country: European And American Medium: Water
Size: 140 Production Time: 30days
Temperature: Customize Polishing: Yes
High Light:

stainless steel float ball


metal ball float

Product Description

Customize magnetic float ball 140 from Sanlo company with the top quality






Introduction of 316 Stainless Steel:


316 stainless steel is an austenitic stainless steel. Due to the addition of Mo element, it has a great improvement in corrosion resistance and high temperature strength. It can withstand high temperatures up to 1200-1300 degrees and can be used under harsh conditions.



Technical Parameters:



Shape Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
  Φ38×26×Φ9.5 316L 1.0 -100~200 >0.50 40±3 10.5±1
Φ40×35×Φ15.5 316L 1.0 -100~200 >0.60 60±3 24±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5
This kind of ball float applies to float switch,and level control device etc.



Permanent ferrite


A compound having a uniaxial anisotropy of a hexagonal structure. It is mainly composed of three ferrites of lanthanum, cerium and lead and their composite solid solution. There are points of the same magnetic and heterogeneous magnetic. Since such a ferrite material retains a strong constant residual magnetic property for a long time after the external magnetization field disappears, it can be used to generate a constant magnetic field to the external space. It is widely used,



They love us:


1. High quality products, we have advanced equipment and good quality system to ensure the products quality.

2. Competitive prices and quickly delivery.

3. Good service. Usually we will reply customer within 24 hours.

4. Various payment way.
