Liquid Level Controller Magnetic Float Ball Standard Type OEM / ODM Available

Basic Information
Place of Origin: china
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 2-5days
Payment Terms: T/T, Western Union
Supply Ability: 5000-10000/day
Detail Information
Major Exporting Country: OEM Material: 316L
Production Cycle: 5-7days Type: Customize
Use: Level Switch/flap Production Place: Wenzhou China
High Light:

metal ball float

,

mechanical float


Product Description

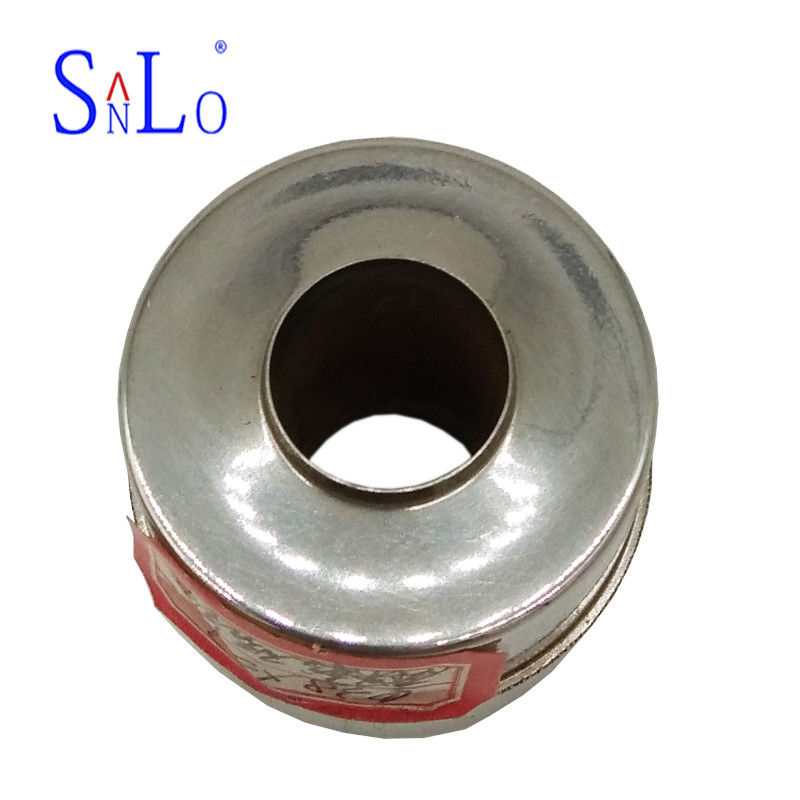

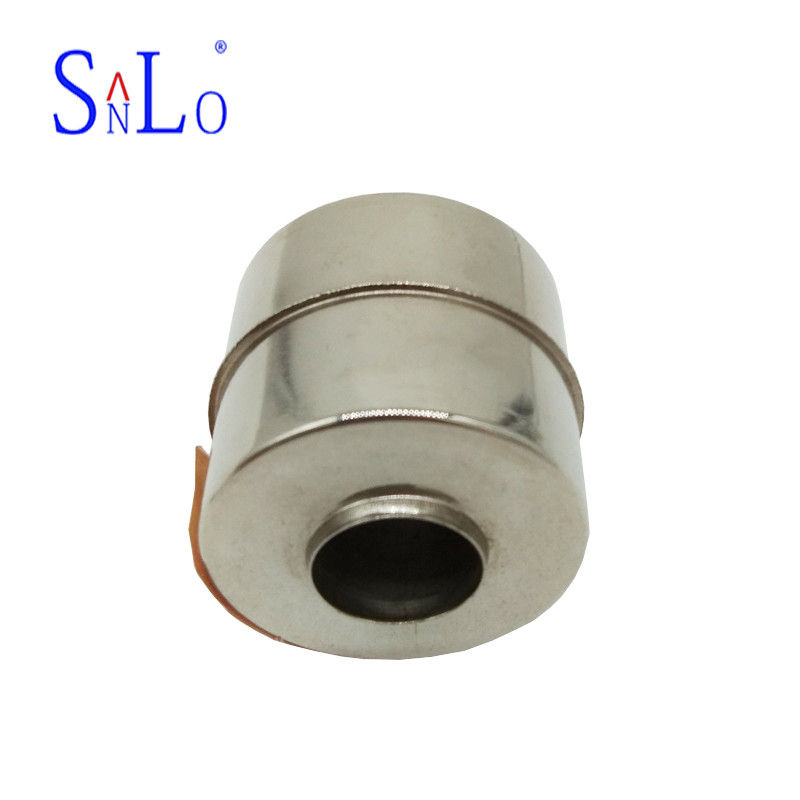

Customize Magnetic float ball with sand for level switch from china factory with top quality







Video:https://youtu.be/-udsZOqi3VA





Working principle:



    As long as the material is selected correctly, any liquid or pressure and temperature can be used. It is obtained in the shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. A wide range of applications.



Technical Parameters:



Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
Φ25×25×Φ9.5 316L 1.0 -100~200 >0.85 40±3 5.5±5
Φ28×28×Φ9.5 316L 1.0 -100~200 >0.80 40±3 8±1
This kind of ball float applies to float switch,and level control device etc.





Introduction of the float magnet



Ferrites are sintered from iron oxides and other ingredients. Generally, it can be divided into three types: permanent ferrite, soft ferrite and spin ferrite.
The ferrite magnet is also called ferrite magnet, which is the small black magnet that we usually see. The constituent raw materials are mainly iron oxide, barium carbonate or barium carbonate. After magnetization, the strength of the residual magnetic field is high and the residual magnetic field can be maintained for a long time. Usually used as a permanent magnet material. For example: speaker magnet.







FAQ:



Q: What about the delivery time of your products?
A: 10-15days.
Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.


Q: What information do I need to supply when I have an inquiry?
A:  If you have any inquiry, please kindly advise the following items: size,material,pressure,magentic flux,S.G. ,medium, model NO.
