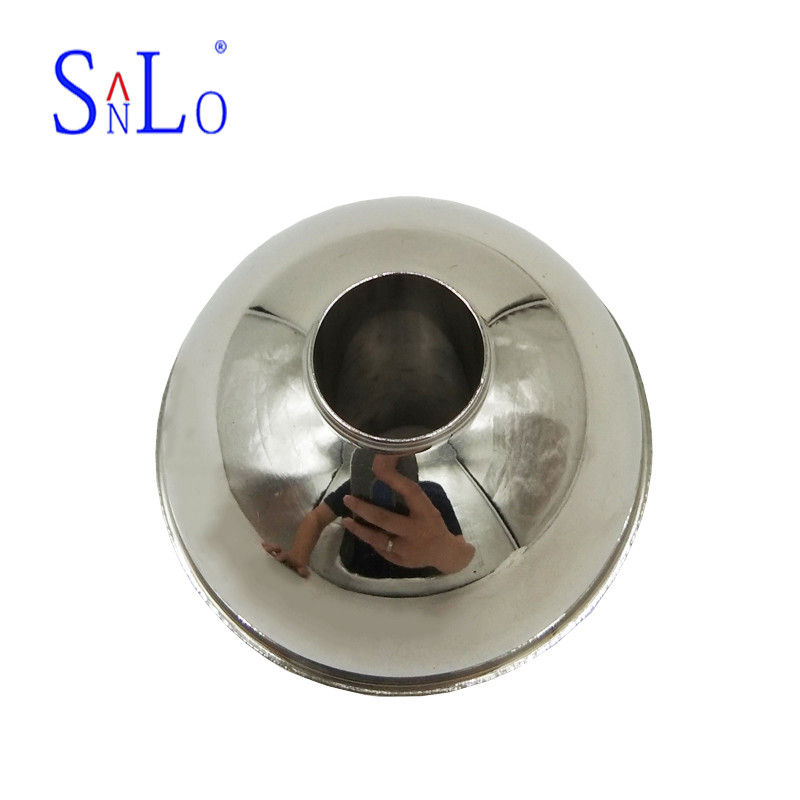

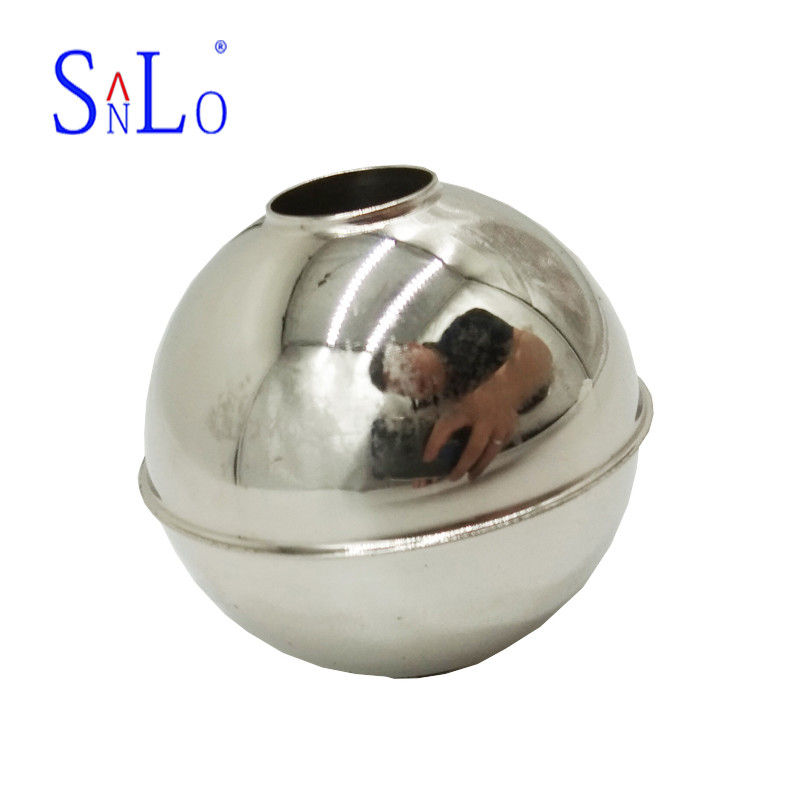

25--70MM Magnetic Float Ball Level Switch Accessories Long Life Span

Basic Information
Place of Origin: china
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 2-5days
Payment Terms: T/T, Western Union
Supply Ability: 5000-10000/day
Detail Information
Major Exporting Country: European And American Material: 316L
Shipment: 5-7days Type: Customize
Use: Level Switch/flap Production Place: Wenzhou China
High Light:

stainless steel float ball

,

metal ball float


Product Description

Customize Magnetic float ball 25---70MM for level switch from china factory with top quality





Video: https://youtu.be/6YA5z4mDnI4





Working principle:



The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.



Technical Parameters:



Shape Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
  Φ25×25×Φ9.5 316L 1.0 -100~200 >0.85 40±3 5.5±5
Φ25×28×Φ9.5 316L 1.0 -100~200 >0.85 40±3 6±0.5
Φ28×28×Φ9.5 316L 1.0 -100~200 >0.80 40±3 8±1
Φ38×26×Φ9.5 316L 1.0 -100~200 >0.50 40±3 10.5±1
Φ40×35×Φ15.5 316L 1.0 -100~200 >0.60 60±3 24±1
Φ45×50×Φ15.5 316L 1.0 -100~200 >0.60 60±5 26±1
Φ45×56×Φ15.5 316L 1.0 -100~200 >0.50 60±5 ±
Φ49×50×Φ15.5 316L 1.0 -100~200 >0.50 40 60,100 27±1 32±1
Φ51×61×Φ15.5 316L 1.0 -100~200 >0.50 60±5 42±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5
Φ65×111×Φ25 304 1.0 -100~200 > 100±5
  Φ30×Φ9.5 316L 3.5 -100~200 >0.80 40±3 7.5±1
Φ52×Φ15.5 316L 2.5 -100~200 >0.55 60±5 32±1
Φ75×Φ23 304 2.5 -100~200 >0.50 60±5 98±3
Φ125×Φ23 304 2.5 -100~200 >0.50 60±5 315±5
This kind of ball float applies to float switch,and level control device etc.



Competitive Advantage:



1 Regularly have a large inventory, fast delivery delivery

2 2 inspections, strict quality inspection

3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible

4 There are 3 professional float engineers, providing after-sales technical services







Application:



Float switch

Level controller

Level gauge magnetic flap

traps

exhaust valve

float valve

level gauge

pneumaatic diaphragm pump









25--70MM Magnetic Float Ball Level Switch Accessories Long Life Span



Testing :



       Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
       The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.





25--70MM Magnetic Float Ball Level Switch Accessories Long Life Span
