| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Float Ball Mist with Threaded Rod |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | Europe And America And India | Material: | 316L |
|---|---|---|---|
| Pressure: | 5-8.5MPA | Stock: | No , That Need Prodction |
| Delivery Time: | 20 Days | Work Place: | All Kind Of Level Switch |
| High Light: | metal ball float,mechanical float |
||

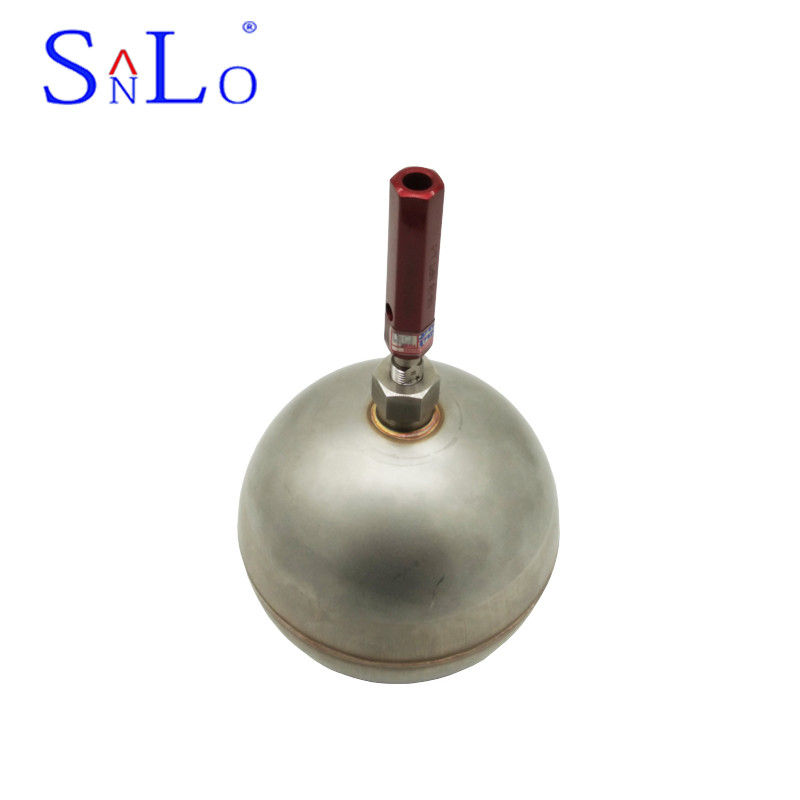

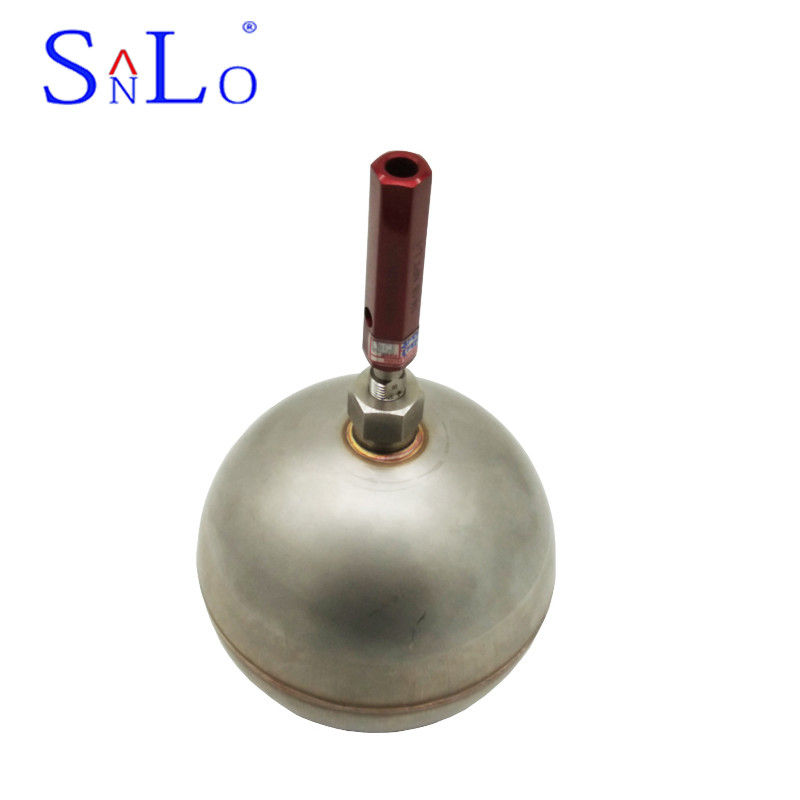

Float Ball Mist with Threaded Rod Float 50*86 for the big tank level
Video: https://youtu.be/lTT3v90H_1g
Quick Details:
| Brand | SanLo | Type | customize | Operating temperature | -100--200 | Working pressure | 8.5MPA |
| Weight | 38±1 | Material | 316L or 304 | High withstand voltage | 8.5MPA | Media specific gravity | ＞0. 4 |
| certified product | ISO9000 | Type of magnet | Ferrite |
working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Requirements:
This kind of float ball must provide customers with detailed drawings, such as pressure, working temperature, material, size, specific gravity, etc. We will produce according to the customer's requirements, send samples to the customer first, and then formally order after the customer confirms. Production to ensure compliance with customer requirements. For customized products, we have a quantitative requirement, the minimum order quantity is 500pcs .
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
