| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-053 |
| Minimum Order Quantity: | 100 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | OEM | Material: | 304/316L |
|---|---|---|---|
| Shelf Life: | 1Years | Sample: | Free |
| Delivery Time: | 2-5days | Temperature: | -100---200 |
| High Light: | stainless steel float ball,metal ball float |
||

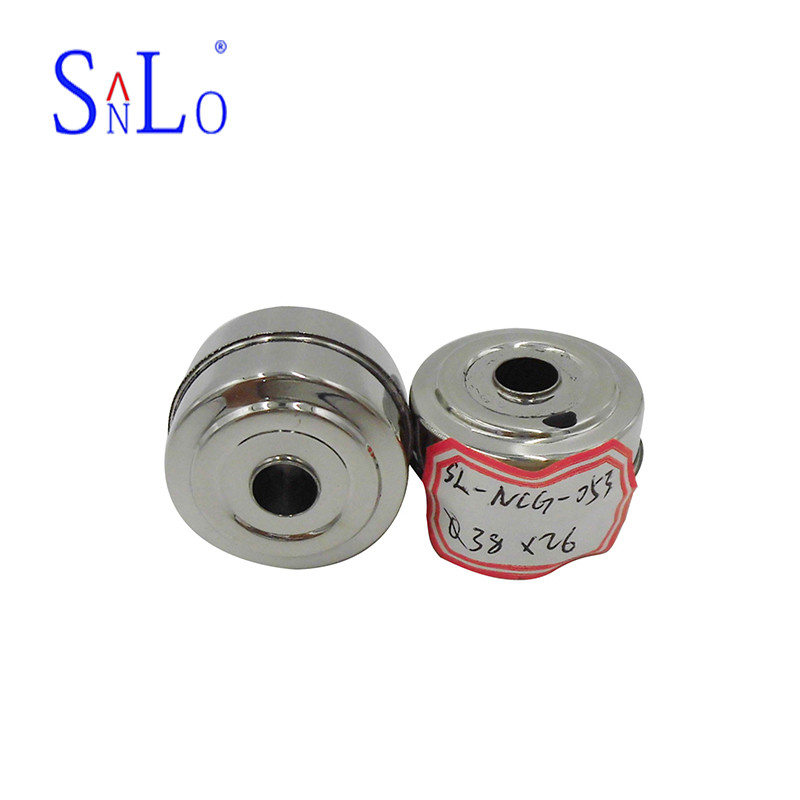

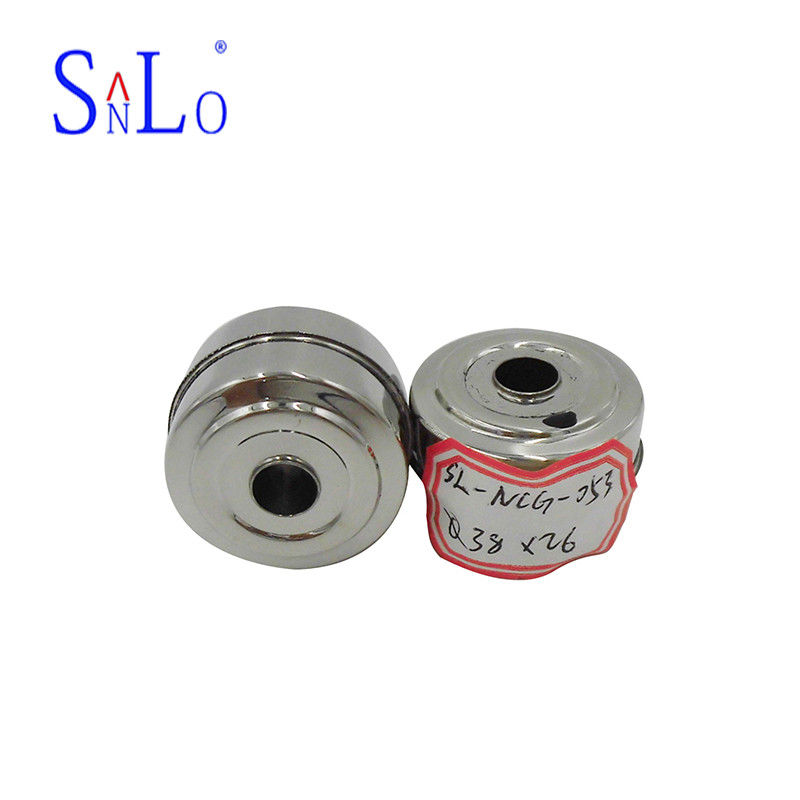

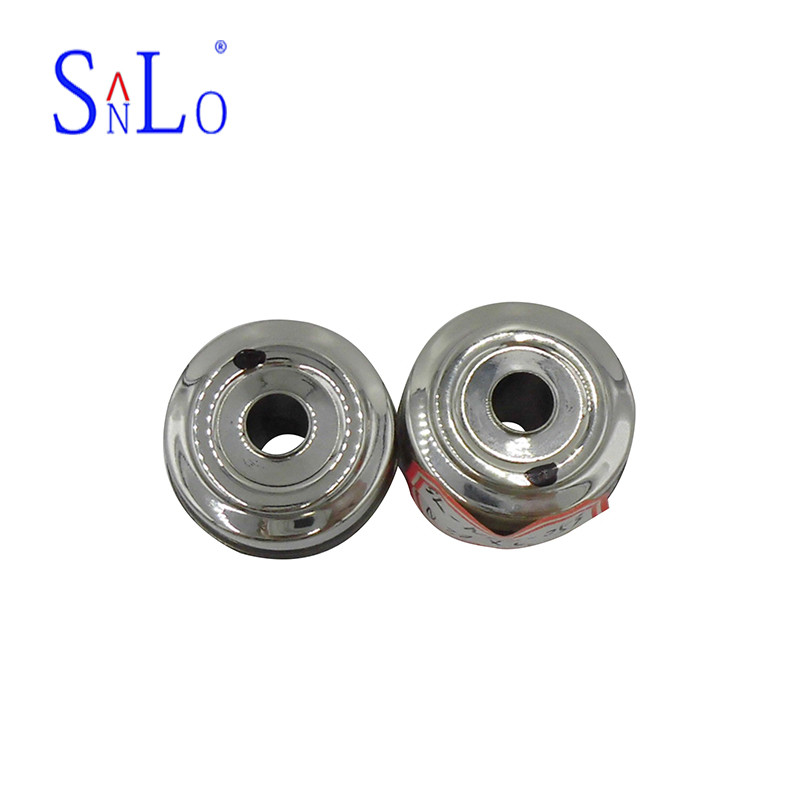

Magnetic float ball 316L or 304 material size 38*26*9.5 for Level gauge
Video: https://youtu.be/7ITYmIXEuUM
Quick Details:
| Brand | SanLo | Type | SL-NCG-053 | Operating temperature | -100--200 | Working pressure | 1.0MPA |
| Weight | 10.5±1 | Material | 316L or 304 | High withstand voltage | 2.5MPA | Media specific gravity | ＞0.5 |
| certified product | ISO9000 | Type of magnet | Ferrite |
working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Our common magnet materials:
The ferrite magnet is a permanent magnet that is mainly made of SrO or BaO and Fe2O3. Developed by Youshang Magnetic Company very early, ferrite magnets are hard and brittle and have lower magnetic energy than other permanent magnets. However, it is not easy to demagnetize and is not easy to corrode, and the production process is simple and inexpensive. Therefore, the ferrite magnet has the highest output in the entire magnet industry and is widely used in industrial production
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 | |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 | |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 | |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± | |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 | |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | ||
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Testing:
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
