| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-052 |
| Minimum Order Quantity: | 100 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 one day |
| Material: | 316L/304 | Package: | Box Or Tray |
|---|---|---|---|
| Principle: | Magnetic Sensors | Accuracy:: | 0.1% |
| Temperature: | -100-200 | Size: | 45*50*15.5 |
| High Light: | stainless steel float ball,metal ball float |
||

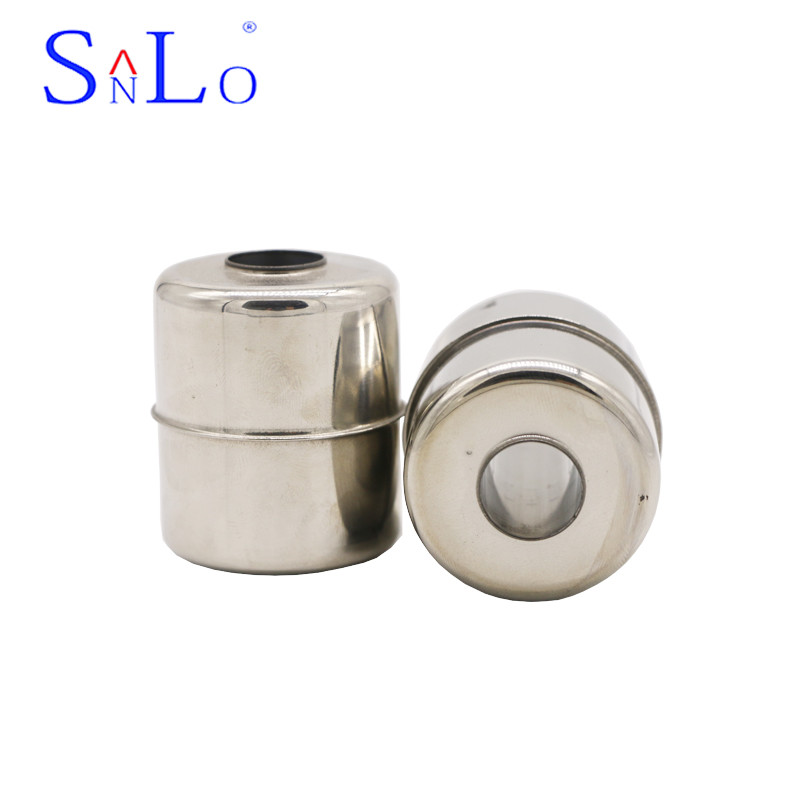

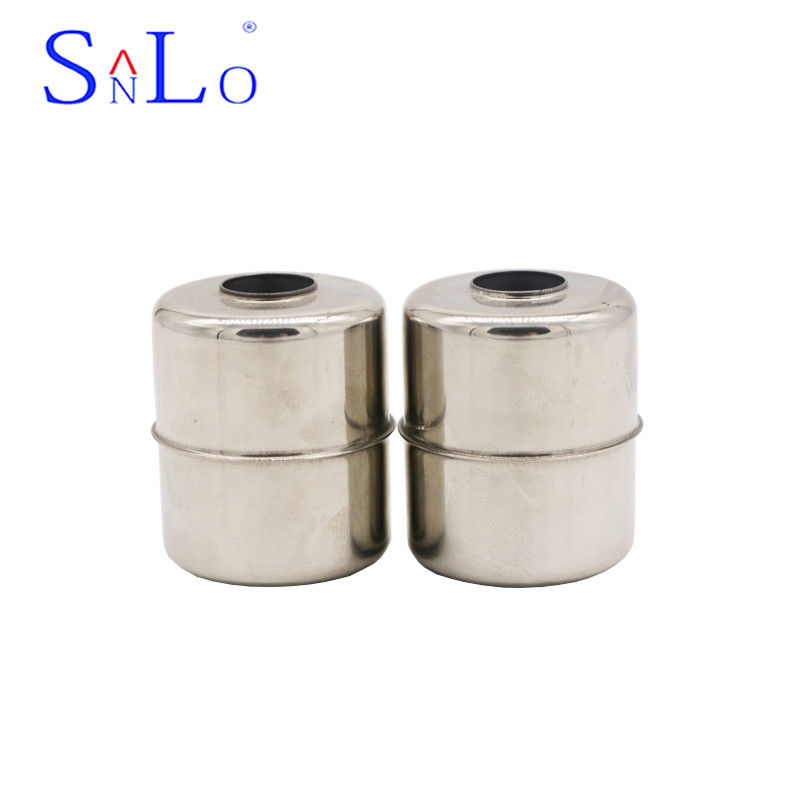

316L Stainless Steel Magnetic Float Ball 45*50*15.5 for level switch
Video: https://youtu.be/GBL-SR0dkBQ
Working principle:
Float switches are often used in the control of tank levels. No external power supply, side or top mounting, wide temperature and pressure range, a wide range of process connections, stainless steel wetted parts and explosion-proof design for a wide range of applications.
Quick Details:
| Brand | SanLo | Type | SL-NCG-052 | Operating temperature | -100--200 | Working pressure | 1.0-2.5MPA |
| Weight | 26± 1 | Material | 316L or 304 | High withstand voltage | 2.5MPA | Media specific gravity | ＞0.6 |
| certified product | ISO9000 | Type of magnet | Ferrite |
Our common magnet materials:
The ferrite magnet is a permanent magnet that is mainly made of SrO or BaO and Fe2O3. Developed by Youshang Magnetic Company very early, ferrite magnets are hard and brittle and have lower magnetic energy than other permanent magnets. However, it is not easy to demagnetize and is not easy to corrode, and the production process is simple and inexpensive. Therefore, the ferrite magnet has the highest output in the entire magnet industry and is widely used in industrial production
Features:
1. Multi-point control can be done, and the control switch can be customized with the liquid level position
.
2. The reed switch does not need to be powered separately.
3. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
4. High reliability, low wiring cost and easy installation.
5. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
