| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9001 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Product: | 316L Float Ball | Material: | Stainless Steel 316 |
|---|---|---|---|
| Production Time: | 30days | Medium: | Water |
| Pressure: | Customize | Temperature: | -100-200 |
| High Light: | ballcock float ball,toilet valve float |
||

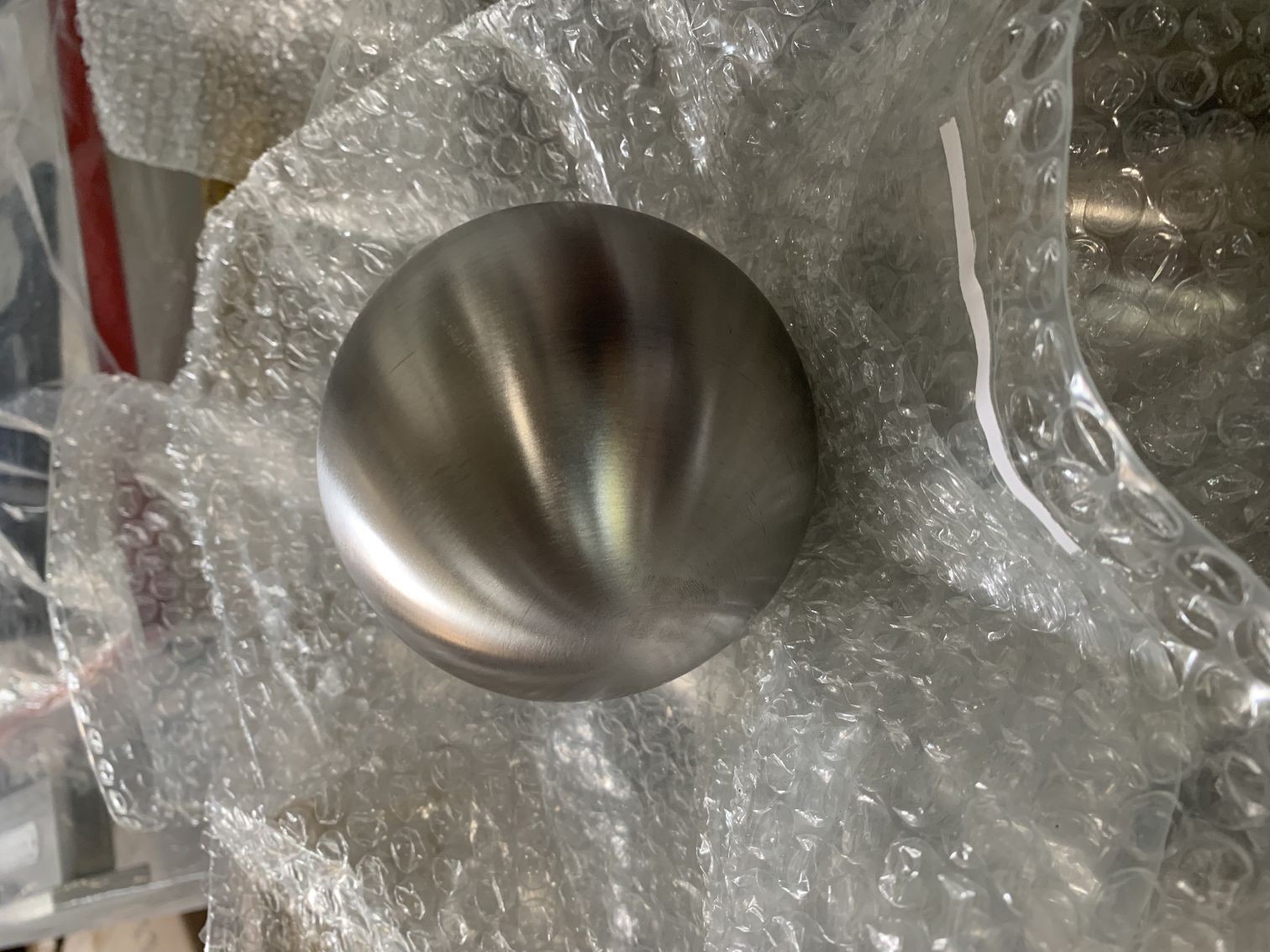

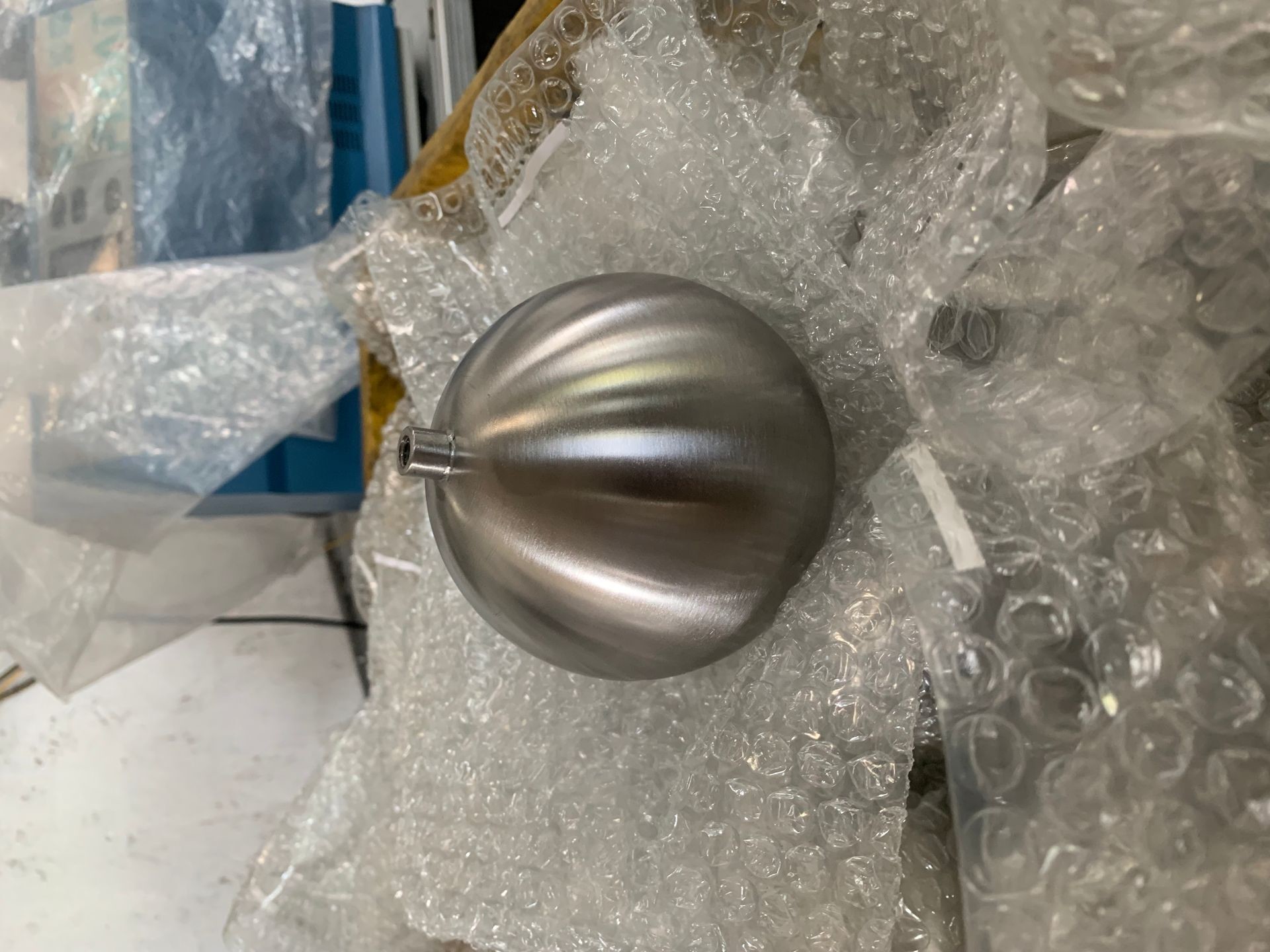

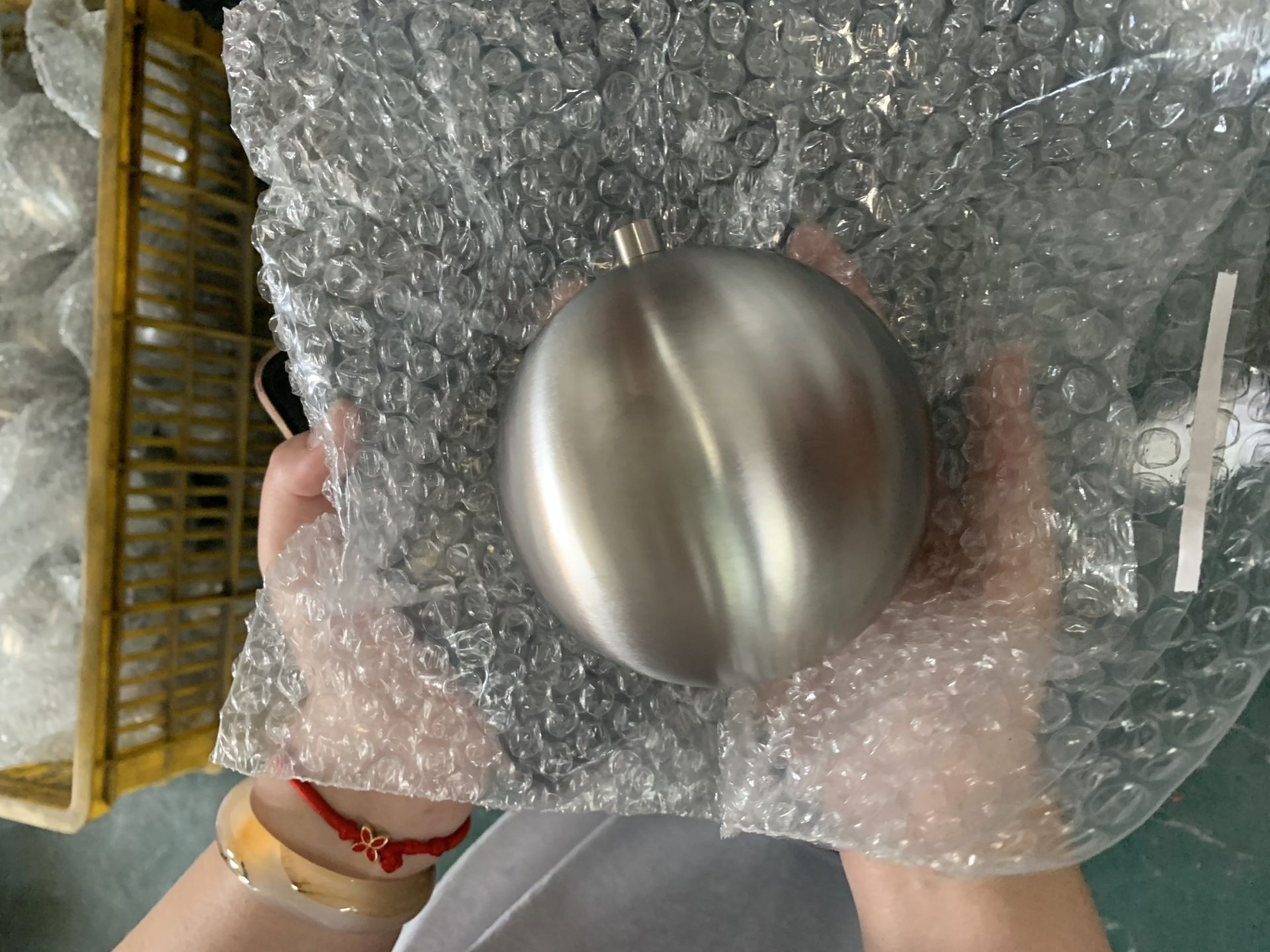

316L Round Ball Float For Liquid Level Meter , Stainless Steel Magnetic Floats
Video: https://youtu.be/o9u62xskiok
The upper and lower liquid level alarms of the liquid level can be realized by installing an alarm switch on various types of magnetic float level gauges. The alarm switch is divided into two types: an alarm switch and a magnetic retainer switch.
There is a reed switch in the alarm switch. When the float in the magnetic float level gauge rises to the alarm switch position under the buoyancy of the liquid, the reed switch in the alarm switch is changed from the normally open to the suction state due to the magnetic force of the float. When the alarm signal is issued, the float rises or falls off the alarm switch, and the reed switch in the alarm switch opens to return to the normally open state.
Product :
 |
|
|
Top-mounted quartz glass tube level gauge, which uses the float ball as the measuring component to transfer the liquid level height of the horizontal tank or the underground storage tank to the tank top indicator through the float connecting rod, and the color indicator at the top of the connecting rod Eye-catching instructions. The design should pay attention to ensure the length of the connecting rod, that is, when the floating ball is at the lowest position of the underground trough, the color indicator is at the lowest position of the quartz tube scale.
Our Factory:
FQA:
1.Q:Are you trade company or manufacture?
A:We are manufacture with more than 12 years experience,and the price is the factory price.
2.Q:How to control the quality?
A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
