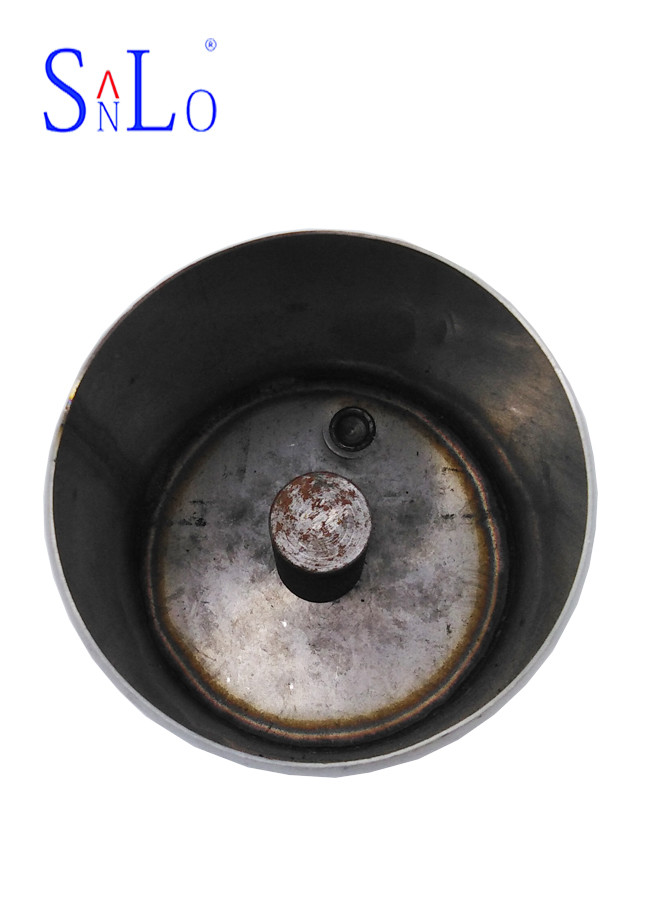

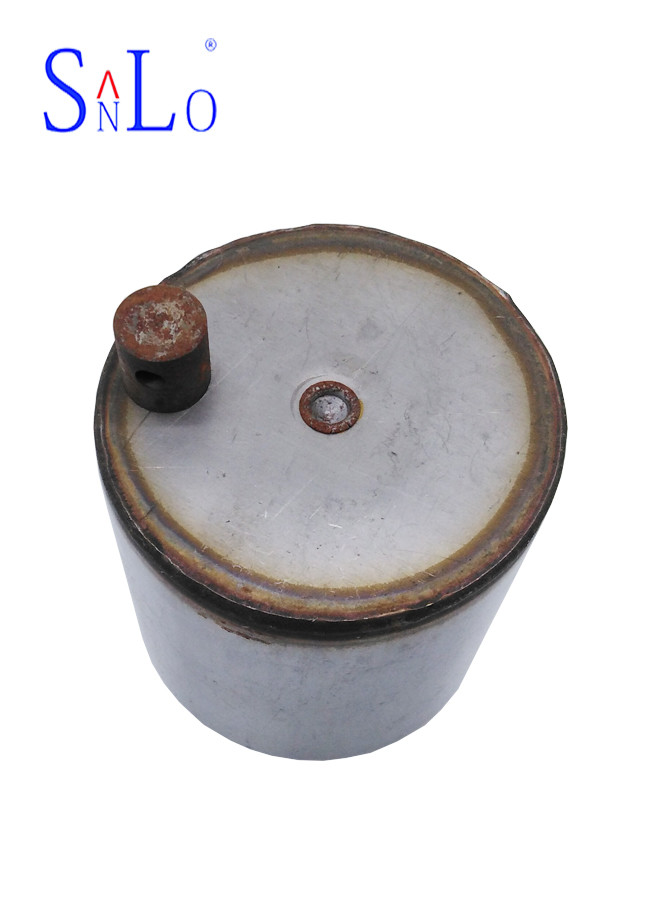

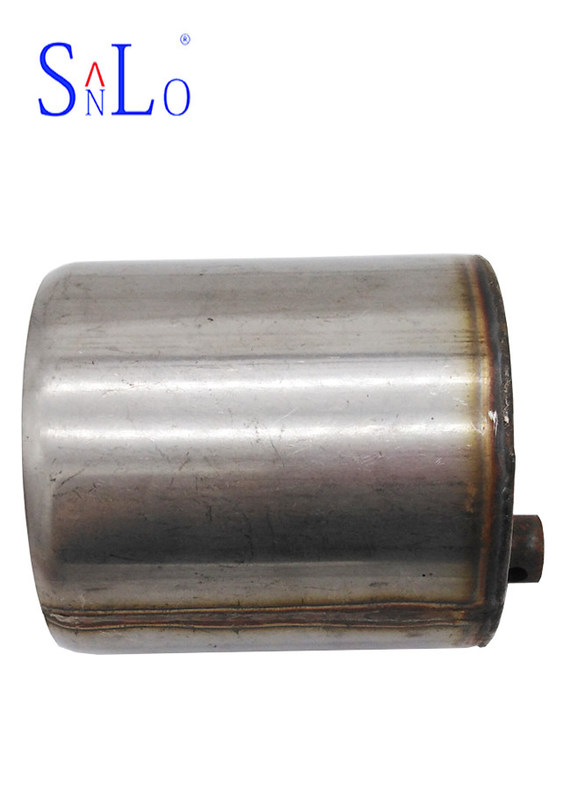

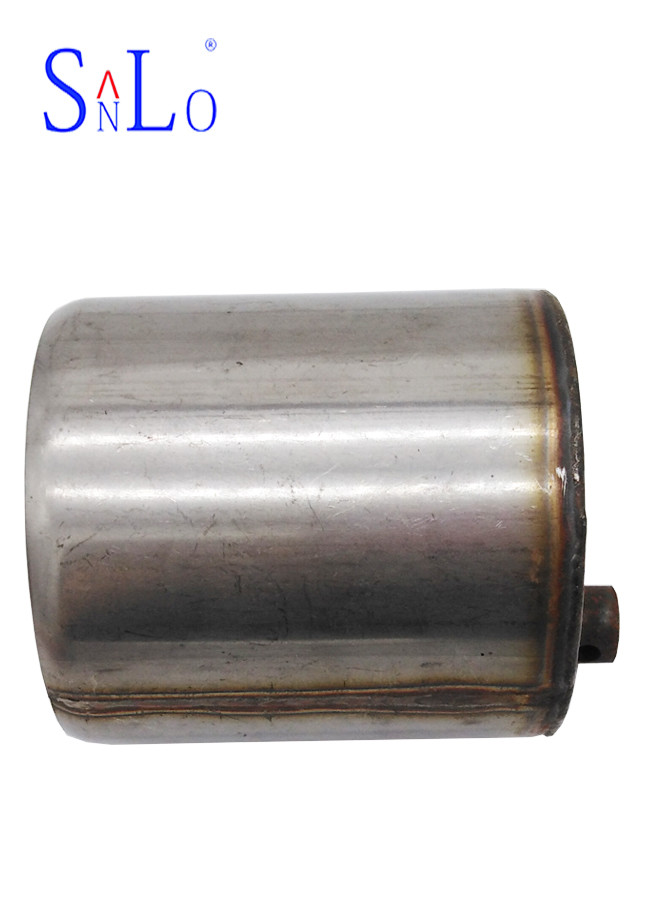

Lightweight Fuel Tank Sending Unit Float , Gas Tank Float National Standard

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: Customer-Made
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Detail Information
Certification: ISO9000 Model Number: SL-BFT
Feature: Corrosion Resistance Delivery: 30days
Brand: Sanlo Pressure: Normal Pressure
High Light:

cylindrical float


fueltank gauge float

Product Description

                         Customer National Standard 316L/304 Steel Float, Drawing Parts Float For Trap








       Both the inverted bucket trap and the free float trap are mechanical traps. They work according to the difference in density between condensate and steam, and the subcooling is relatively small, which is suitable for the hydrophobicity of the production process heating equipment.


Normal type Technology:


Type Material Thickness DN Morphology
Head shape 304/316L 0.5-4.0 Many Character/Polishing
Long Dome 304/316L 0.5-4.0 Many Character/Polishing
Cylindrical 304/316L 0.5-4.0 Many Character/Polishing


      When the device is started, the pipeline is cooled and condensed, and the condensed water pushes the valve plate by the working pressure to discharge quickly. When the condensed water is discharged, the steam is subsequently discharged. Because the volume and flow rate of the steam is larger than the condensed water, a pressure difference is generated between the valve plate and the valve piece is quickly closed under the suction of the steam flow rate. When the valve piece is closed, the valve piece is subjected to pressure on both sides, and the force receiving area under the valve piece is smaller than the upper force receiving area. Since the pressure inside the steam trap chamber is derived from the steam pressure, the force on the valve plate is greater than the lower surface, the valve piece Close tightly. When the steam inside the steam trap chamber cools down into condensed water, the pressure inside the steam chamber disappears. The condensed water pushes the valve piece by the working pressure, and the condensed water continues to discharge, and the circulation works intermittently.



Our service

1. Delivery time is 5~7 days for sample and 15 working days for bulk order;
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
