| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Drawing Parting |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Magnetic: | No | Surface Treatment: | Polishing |
|---|---|---|---|
| Material: | 304/316L | Delivery: | 30days |
| Payment: | TT, Western Union | Working: | Trap |
| High Light: | cylindrical float,gas tank sending unit float |
||

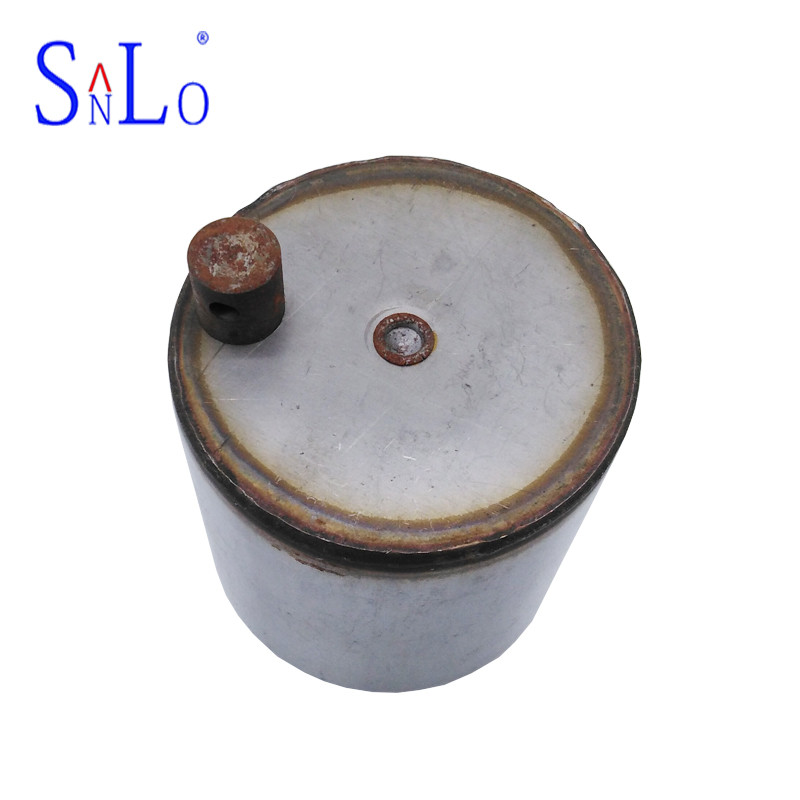

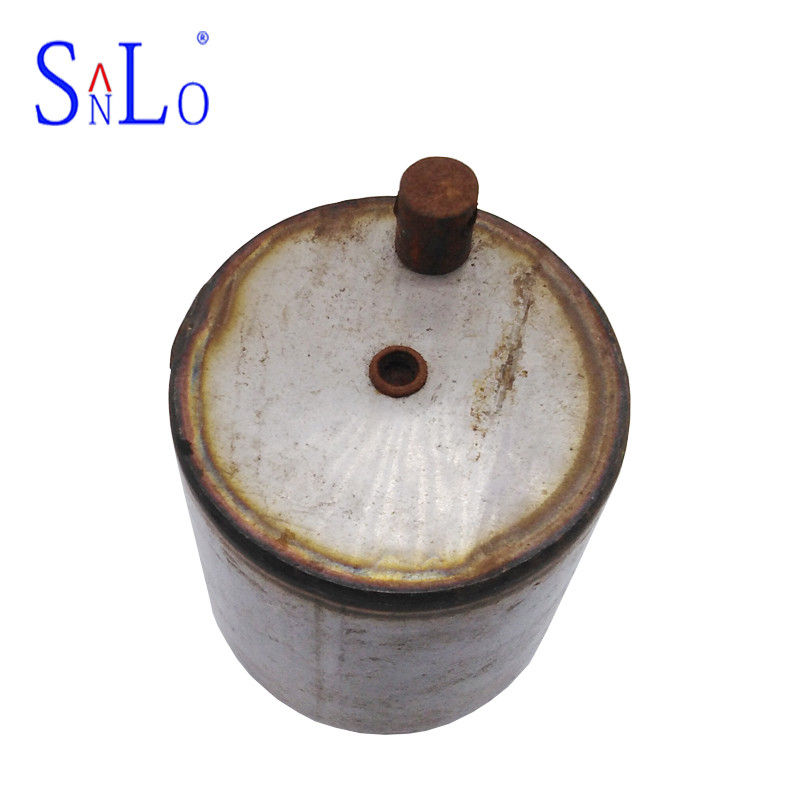

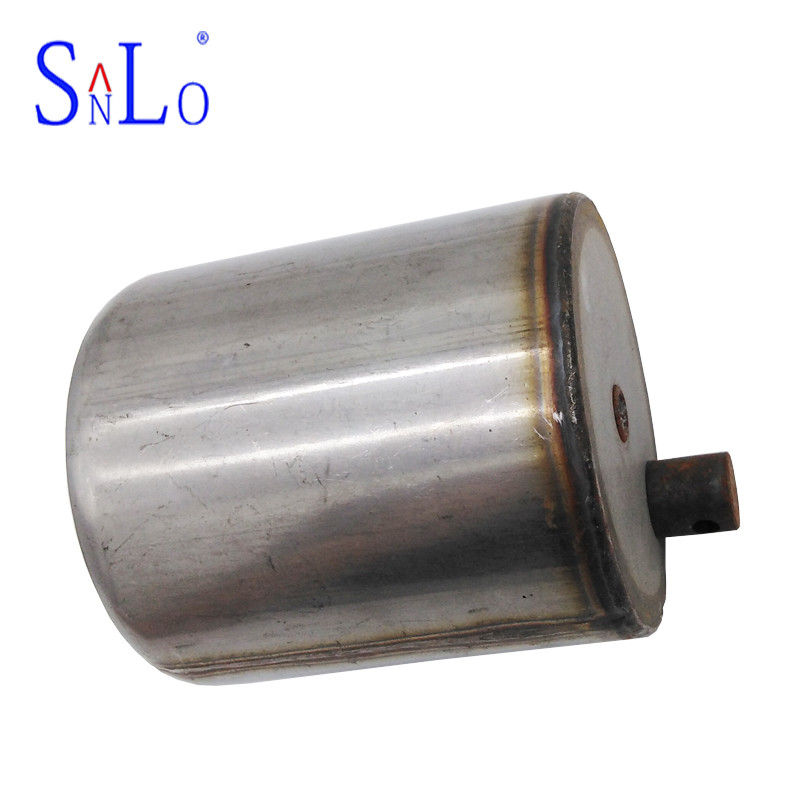

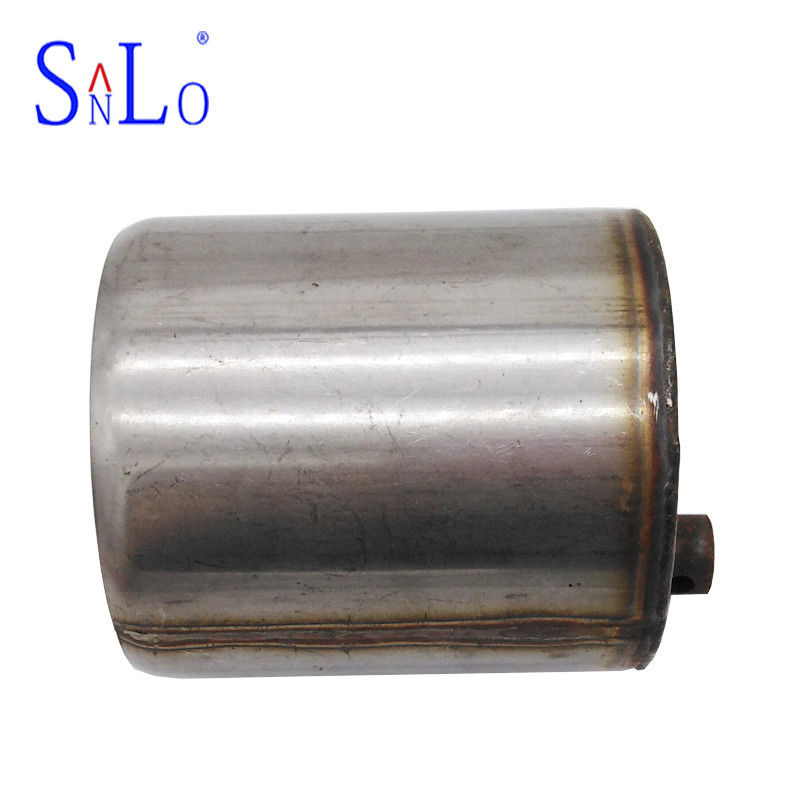

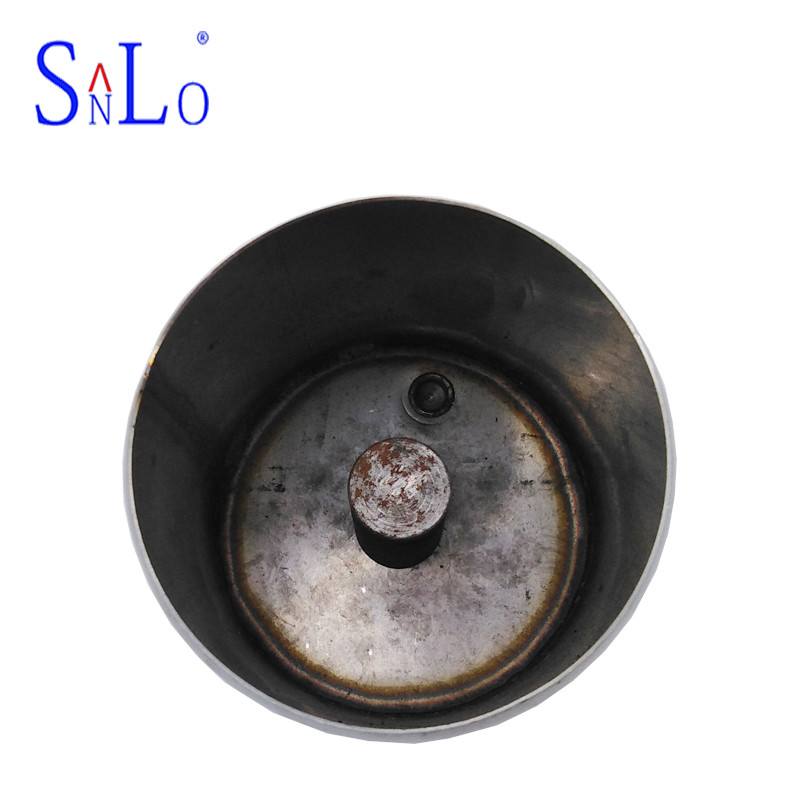

Industrial Cylindrical Float, Differcult Drawing Parts For Bucket Trap
Video: https://youtu.be/UwXdfk3cNhA
Description:
The free float trap has only one high-precision grinding float as the moving part, and the float floats on the liquid surface during operation. When the condensed water is small, the float ball descends with the liquid level. Under the pressure difference between the trap and the trap, the float floats to the valve seat to seal the valve hole. The entire spherical surface of the float can be a sealing surface, and its service life is affected by the accuracy of the float.
Custom made type Technology:
| Type | Material | Thickness | DN | Morphology |
| Head shape | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Long Dome | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Cylindrical | 304/316L | 0.5-4.0 | Many | Character/Polishing |
| Note:According to customer's requirements,the drawing can be custom made,and the special request will mark out on the drawings | ||||
General information
Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.
Switches should be mounted in a tank area free of severe turbulence turbulence or protected from such turbulence by appropriate and adequate slosh shields.
Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with the stem at up to a 30 degree angle from vertical.
Side mount switch stems must be mounted with arrow vertically either up or down depending on switch operation .
Care should be taken that switches are always operated within electrical ratings.
Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem.
