220V Magnetic Float Switch Ball 51*61mm With Red Box Hydraulic Control Drive Mode

Basic Information
Place of Origin: china
Brand Name: Sanlo
Certification: ISO9000
Model Number: customize
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 2-5days
Payment Terms: T/T, Western Union
Supply Ability: 5000-10000/day
Detail Information
Main Market: European And American Structure Type: Floating Ball Valve
Drive Mode: Hydraulic Control Surface Treatment: Polishing
Operating Voltage: 220V H.S Code: 9032900090
High Light:

sump pump float ball


level control floats

Product Description

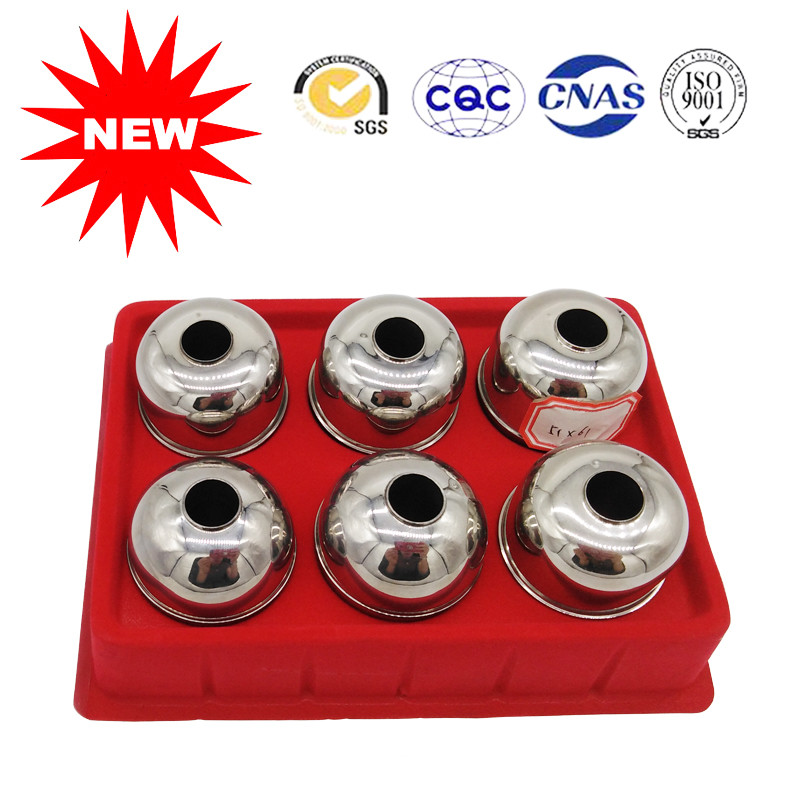

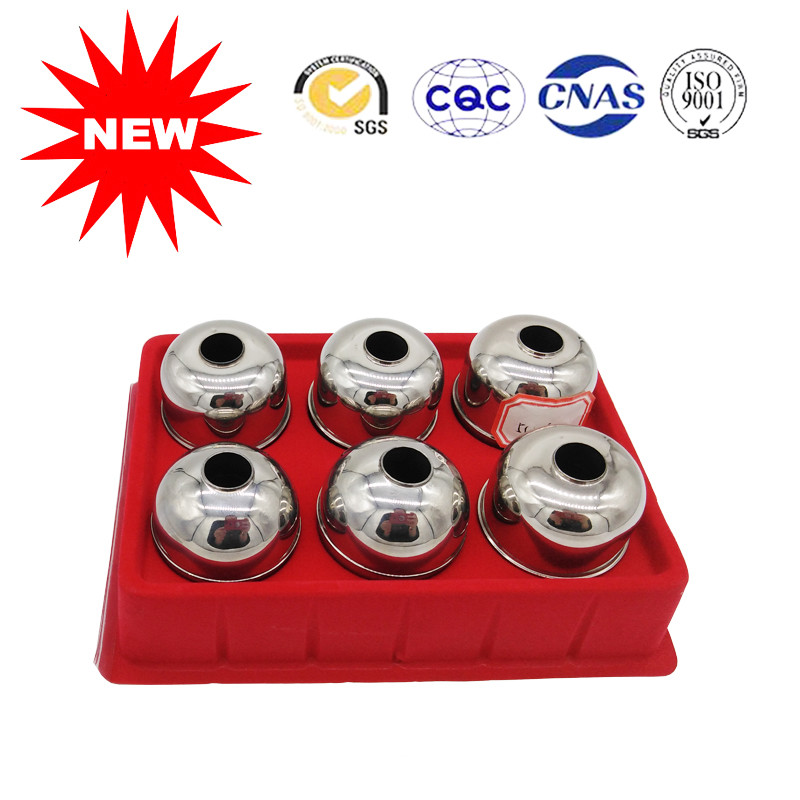

customize Magnetic Float Switch Ball 51*61 with magnetic with red box from Sanlo company







Our second magnet material:


    NdFeB magnets can be classified into bonded NdFeB and sintered NdFeB. Bonding is actually injection molding, and sintering is vacuumed by high temperature heating! NdFeB magnets are permanent magnets that have the strongest magnetic force to date. The material grades are N35-N52; various shapes can be processed according to specific requirements: round, square, perforated, magnetic tile, magnetic bar, convex, trapezoidal, etc.; despite these advantages, the surface is prone to rust, so it is usually required Make some protective surface treatments: nickel plating, galvanizing, gold plating, epoxy plating, etc. The applicable ambient temperature of a common NdFeB magnet is 80 degrees or less, but there are several types that can withstand a high temperature of 200 degrees. Mainly used in electronics, electrical appliances, packaging, motors, toys, leather goods, automotive machinery and so on



Our normal type Technical Parameters:


Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
Φ49×50×Φ15.5 316L 1.0 -100~200 >0.50 40 60,100 27±1 32±1
Φ51×61×Φ15.5 316L 1.0 -100~200 >0.50 60±5 42±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5
This kind of ball float applies to float switch,and level control device etc.



Maintenance should consist of inspection to see that the float is free to move and coated with any substance , which would change its weight or volume significantly. IF this occurs, this float should be cleaned .This is easily accomplished without disturbing the installation . In addition , the stem may be wiped down to remove any buildup.The only repair possible in the field is replacement of either the float or stem . Dents or nicks on the float are usually of no consequence to operation.
