| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Main Market: | European And American | Structure Type: | Floating Ball Valve |
|---|---|---|---|
| Highest Temperature Resistance: | 200℃ | Working Pressure: | 8.5MPA |
| Operating Voltage: | 220V | Standard: | Standard |
| High Light: | level control floats,cistern ball float |
||

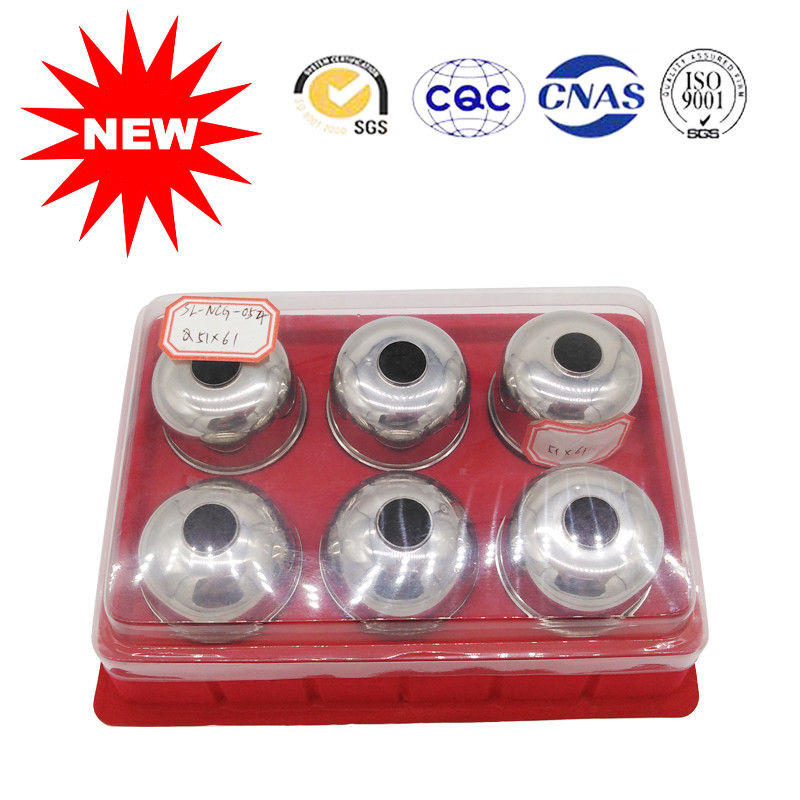

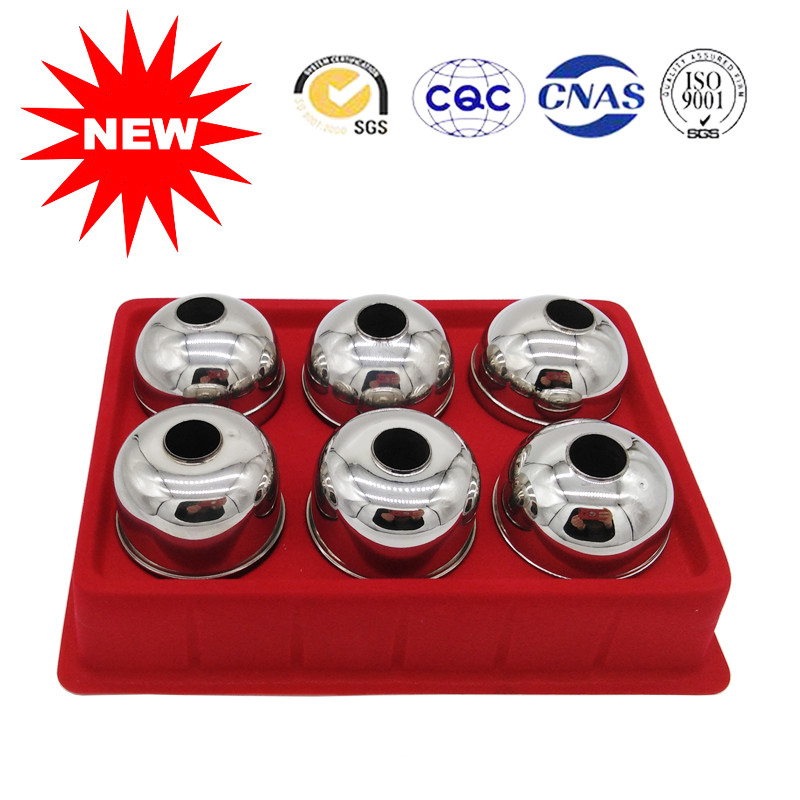

customize Magnetic Float Switch Ball 51*61 with magnetic with red box from Sanlo company
Video: https://youtu.be/u59zyGOCDQE
Introduction:
The free float trap has a simple structure, and there is only one stainless steel hollow float with fine moving parts inside. It is both a float and a starter, no fragile parts, and has a long service life. The YQ trap has a Y series automatic inside. The air exhaust device is very sensitive and can automatically discharge air and has high work quality.
When the equipment is started, the air in the pipeline is discharged through the Y series automatic air exhaust device. The low temperature condensed water enters the trap. The liquid level of the condensate rises, the float rises, the valve opens, the condensate is quickly discharged, and the steam enters quickly. The equipment and equipment are rapidly warmed up, and the temperature-sensitive liquid of the Y-series automatic air-discharging device expands, and the automatic air-discharging device is closed. The trap begins to work normally, and the float moves up and down with the condensate level, blocking steam drainage. The valve seat of the free float trap is always below the liquid level, forming a water seal, no steam leakage, and the energy saving effect is good. The minimum working pressure is 0.01Mpa, and it is not affected by temperature and working pressure fluctuations from 0.01Mpa to the maximum operating pressure range, and continuous drainage. It can discharge condensed water with saturated temperature, the minimum degree of subcooling is 0 °C, and there is no water in the heating equipment, which can make the heating equipment achieve the best heat exchange efficiency. With a back pressure of more than 85%, it is one of the most ideal steam traps for production process heating equipment.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
304:
Universal model; ie 18/8 stainless steel. Products such as: corrosion resistant containers, tableware, furniture, railings, medical equipment. The standard ingredient is 18% chromium plus 8% nickel. It is a non-magnetic stainless steel that cannot change its metallurgical structure by heat treatment.
Our service:
a. Quick response: we commit to give you immediate detailed quotations with instructions and product material. And customize your required product in the shortest time.
b. High-quality products and competitive prices: we reduce material costs through purchase large quantitative of raw materials and other measures from manufactures directly, which ensures good quality and favorable prices of our products, and we share our profit with customers.
c. Closed service: big or long-term cooperation customers can become our VIP customers and enjoy more competitive prices and VIP service.
