| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Main Market: | European And American | Type: | Customize |
|---|---|---|---|
| Highest Temperature Resistance: | 200℃ | Working Pressure: | 8.5MPA |
| Operating Voltage: | 220V | Working Current: | 1.5A |
| High Light: | level control floats,cistern ball float |
||

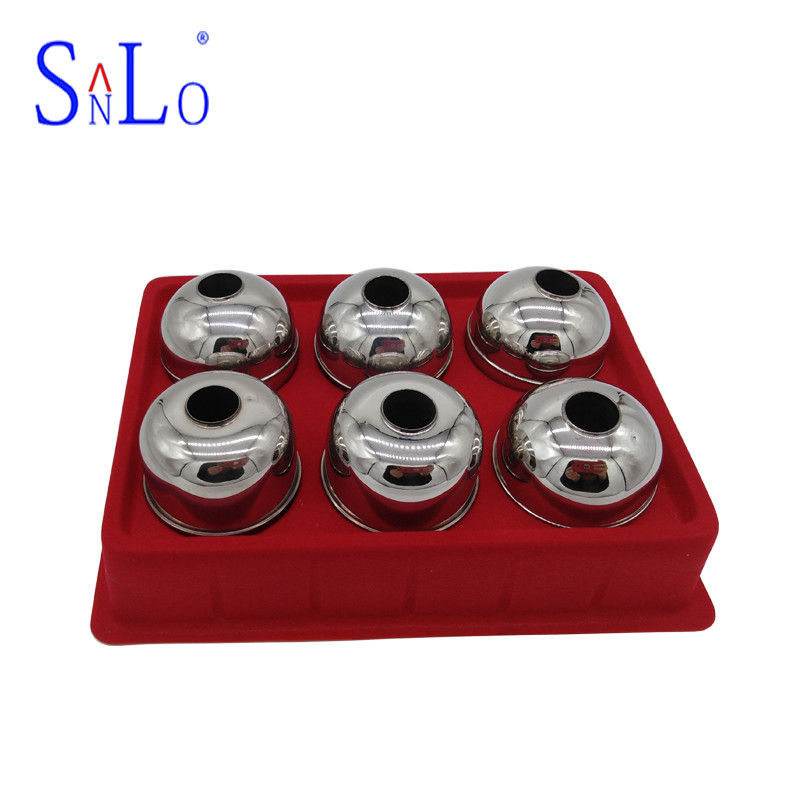

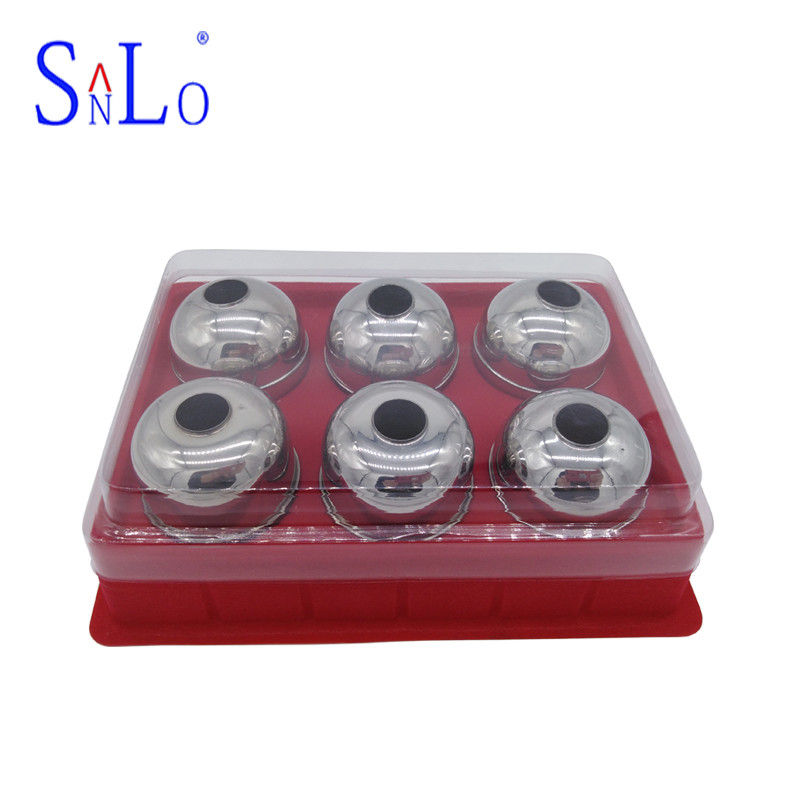

customize Magnetic Float Switch Ball with magnetic with red box from Sanlo company
Video: https://youtu.be/u59zyGOCDQE
Working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | |
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
General information:
Switches should be installed rigidly so that float or floats are free to move as the liquid level changes.
Switches should be mounted in a tank area free of severe turbulence turbulence or protected from such turbulence by appropriate and adequate slosh shields.
Vertical switch stems should be vertical for best results, but satisfactory operation is possible in most liquids with the stem at up to a 30 degree angle from vertical.
Side mount switch stems must be mounted with arrow vertically either up or down depending on switch operation .
Care should be taken that switches are always operated within electrical ratings.
Orientation for standard vertical switches can be changed from normally open to normally closed dry or vice versa by removing the float and reversing in the stem.
