| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Main Market: | European And American | Material: | 316L |
|---|---|---|---|
| Type: | Customize | Highest Temperature Resistance: | 200℃ |
| Delivery Time: | 20-30days | Working Pressure: | 8.5MPA |
| Operating Voltage: | 220V | Working Current: | 1.5A |
| High Light: | sump pump float ball,level control floats |
||

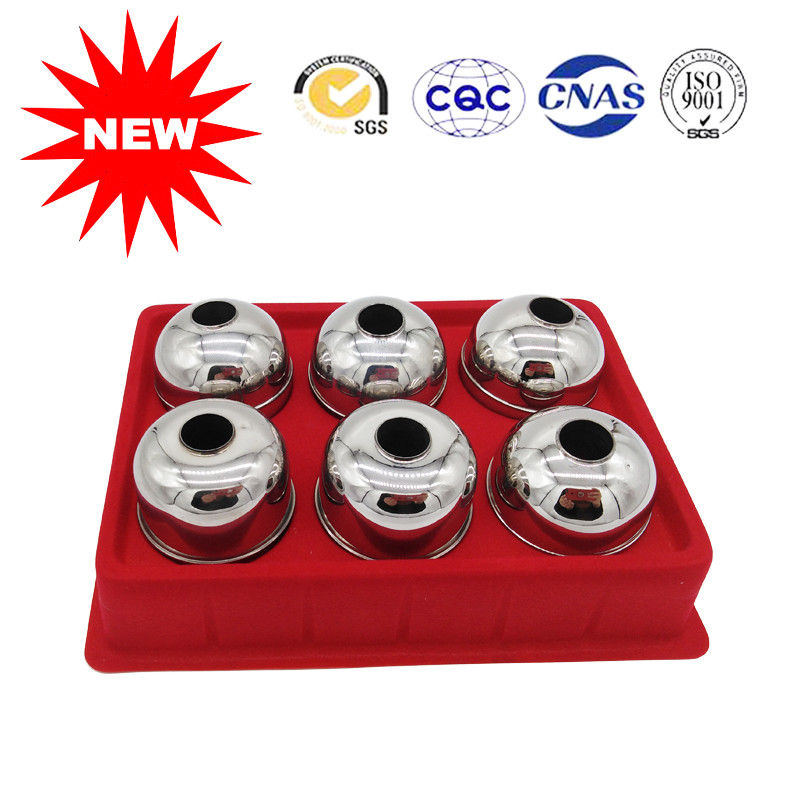

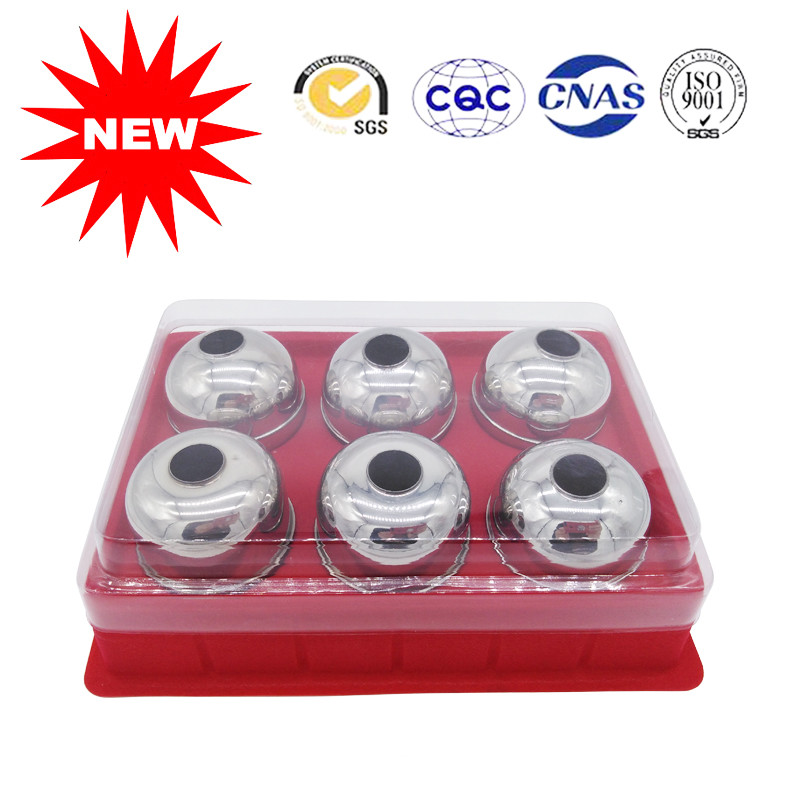

customize Magnetic Float Switch Ball with higher pressure with magnetic from Sanlo company
Video: https://youtu.be/u59zyGOCDQE
Introduction:
Stainless Steel is the abbreviation of stainless acid-resistant steel. It is resistant to air, steam, water and other weak corrosive media or stainless steel. It is called stainless steel. Chemically resistant medium (acid, alkali, salt, etc.) The etched steel grade is called acid-resistant steel.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
The relationship between the properties of the liquid medium and the float:
1. When the specific gravity of the liquid is different, the action position of the float ball will change. Generally, when the SG is smaller than the water, the portion of the float ball immersed in the liquid will increase relatively.
2. The reference weight of the float switch product is water (SG=1). Therefore, when using the float ball, the proportion SG of the liquid level must be considered, which must be greater than the float ball size.
Otherwise, the float switch cannot float.
3. For liquids with high viscosity and not dry, generally use a float ball with a larger outer diameter.
4. The float switch uses a magnet to sense the reed switch, so the measured liquid level should be free of iron filings, otherwise it will affect the movement of the floating team switch.
