| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | European And American | Certification: | ISO9000 |
|---|---|---|---|
| Type: | Boutique | Working Place: | Level Switch |
| Material: | 316L | H.S Code: | 90932900090 |
| High Light: | sump pump float ball,level control floats |
||

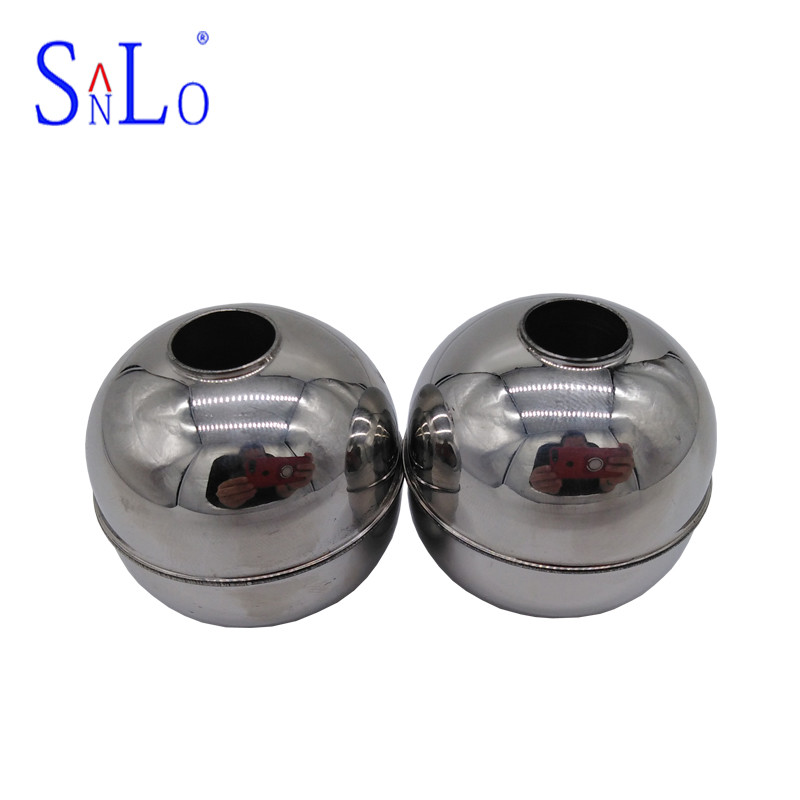

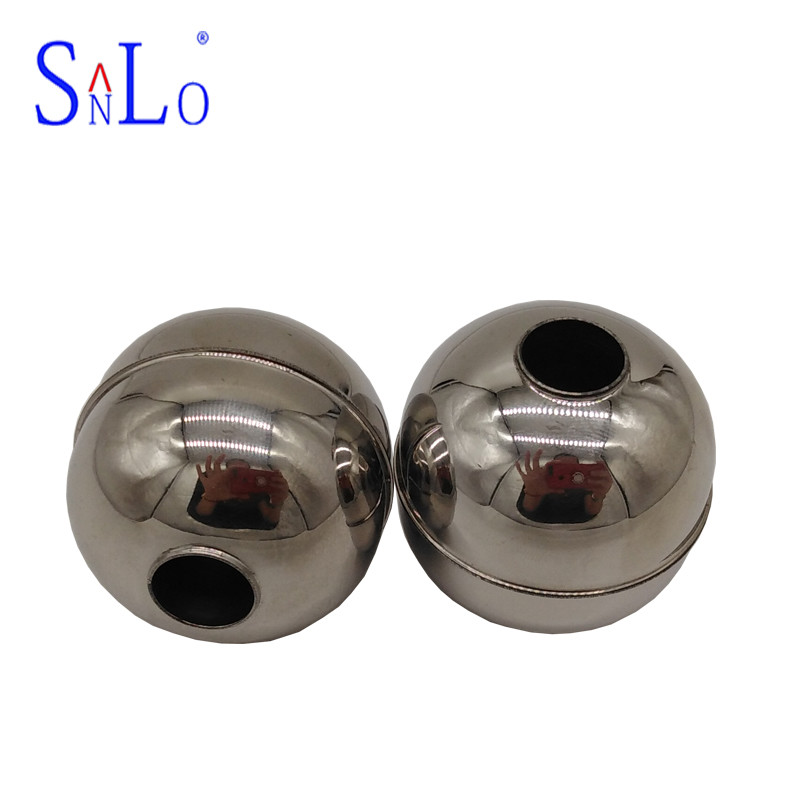

customize Magnetic Float Switch Ball with 8.5MPA higher pressure from Sanlo company
Video: https://youtu.be/dznR9zgepsk
Principle:
One or more reed switches are installed in the closed non-magnetic tube, and then the tube is passed through one or more floating balls with hollow magnets inside, and the rise or fall of the liquid will drive the floats to move up and down together. Thereby causing the reed switch in the non-magnetic tube to actuate or disconnect, thereby outputting a switching signal
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
Many different materials are available for float balls, but the commen material for our floats are stainless steel.
Stainless steel floats are ideal for high pressure, high temperature applications, or where the greater strength and corrosion resistance of this material are necessary. They also are used in less severe applications to assure that the float will last as long as the rest of the product.
Stainless steel eliminates many float failures on low-pressure steam traps, float valves, float boxes, etc.
Stainless steel floats may be used safely at pressures up to 1,000 lbs, often with relatively thin walls for maximum buoyancy. Standard spherical floats of stainless steel weigh considerably less than seamless copper floats of the same size and have a corresponding increase in effective buoyancy.
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
