| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-054 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | European And American | Certification: | ISO9000 |
|---|---|---|---|
| Delivery Time: | 2days | Type: | Boutique |
| Working Place: | Level Switch | Material: | 316L |
| Package: | Tray /red Box | H.S Code: | 90932900090 |
| High Light: | sump pump float ball,level control floats |
||

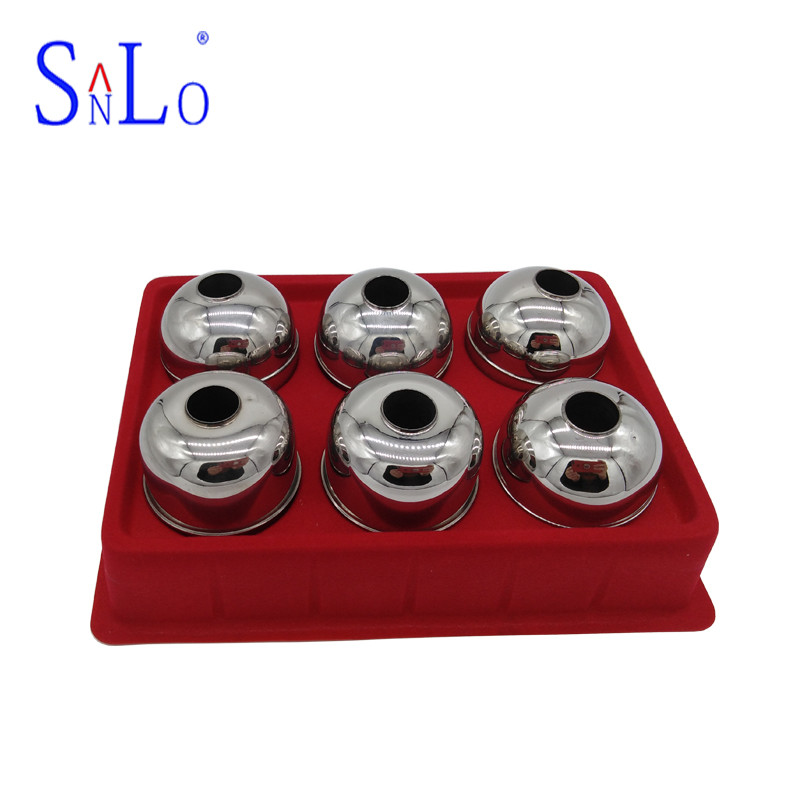

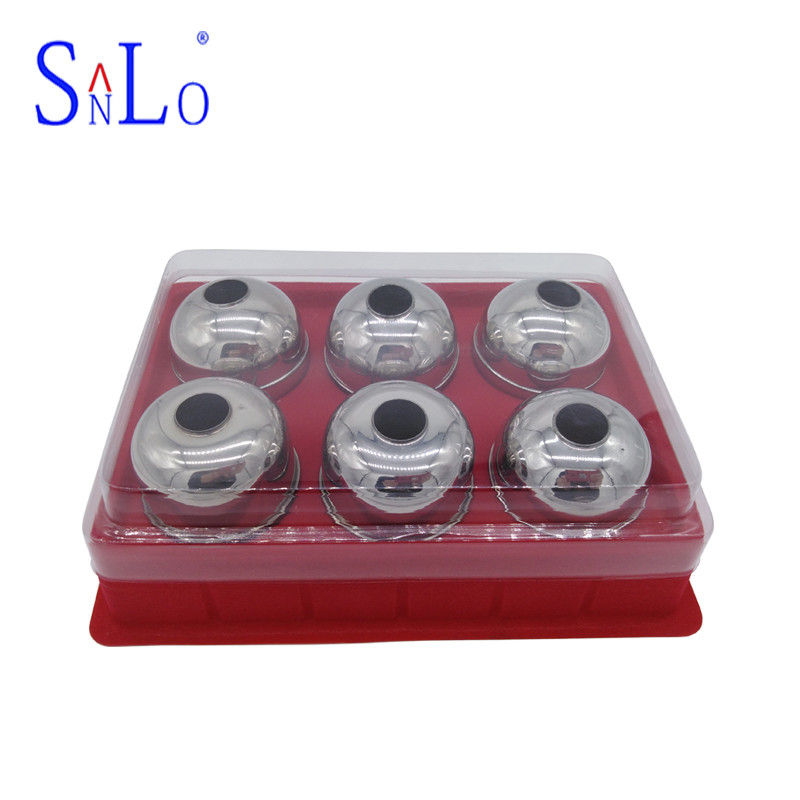

Stainless Steel Magnetic Float Switch Ball 51*61*15.5mm with red box from Sanlo company
Video: https://youtu.be/u59zyGOCDQE
Principle:
The magnetic float of the float level switch is raised or lowered with the liquid level, so that the sensor detects the position of the reed switch chip in the tube, and sends a contact opening (off) switching signal.
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
Working principle:
The small float switch, small liquid level controller and liquid level sensor are mainly composed of a reed switch and a float. The float has magnetic material. When the float moves up and down with the measured liquid level, the reed switch is touched to detect the liquid level position.
Characteristics:
●It is suitable for measuring the liquid level and interface of liquid medium in the container. In addition to on-site instructions, it can also be equipped with remote transmitters, alarm switches and detection functions.
●Instructive new, intuitive reading, eye-catching, observing the direction of the indicator according to user needs
Change the angle.
●The measuring range is large and is not limited by the height of the storage tank.
● The indicating mechanism is completely isolated from the measured medium, with good sealing performance, high reliability and safe use.
●Simple structure, convenient installation, convenient maintenance, corrosion resistance, no power supply, explosion-proof. When the position is at the lower limit, the float floats on the water surface in an upright state, inside the float
