| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Commission |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Company: | Manufacturer And Trade | Drive Mode: | Hydraulic Control |
|---|---|---|---|
| Market: | European And American | H.S Code: | 9.932900090 |
| Surface Treatment: | Polishing | Working Place: | Valve、Switch |
| High Light: | copper toilet float ball,stock tank float |
||

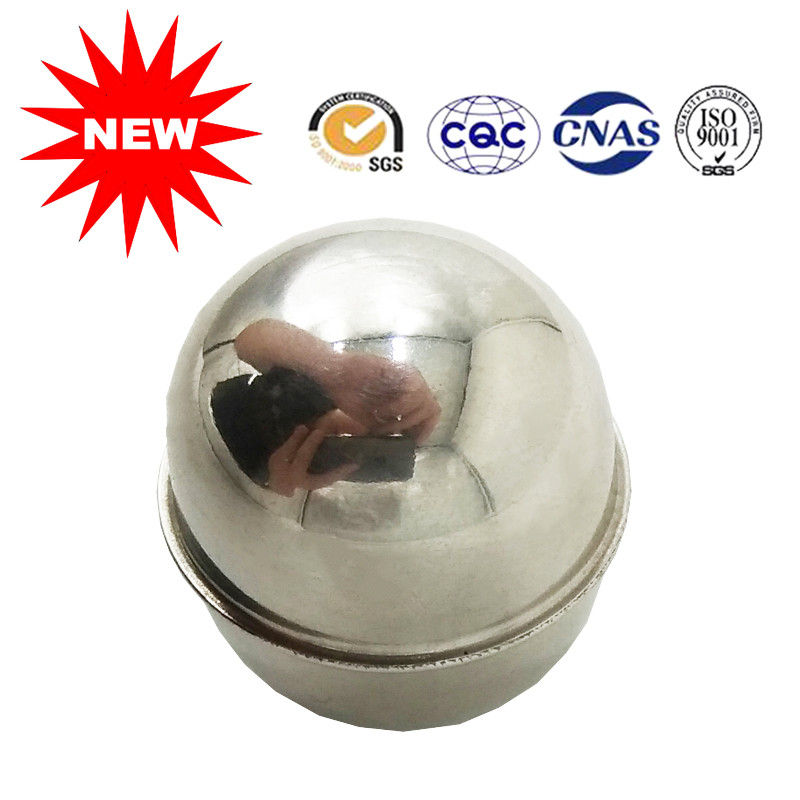

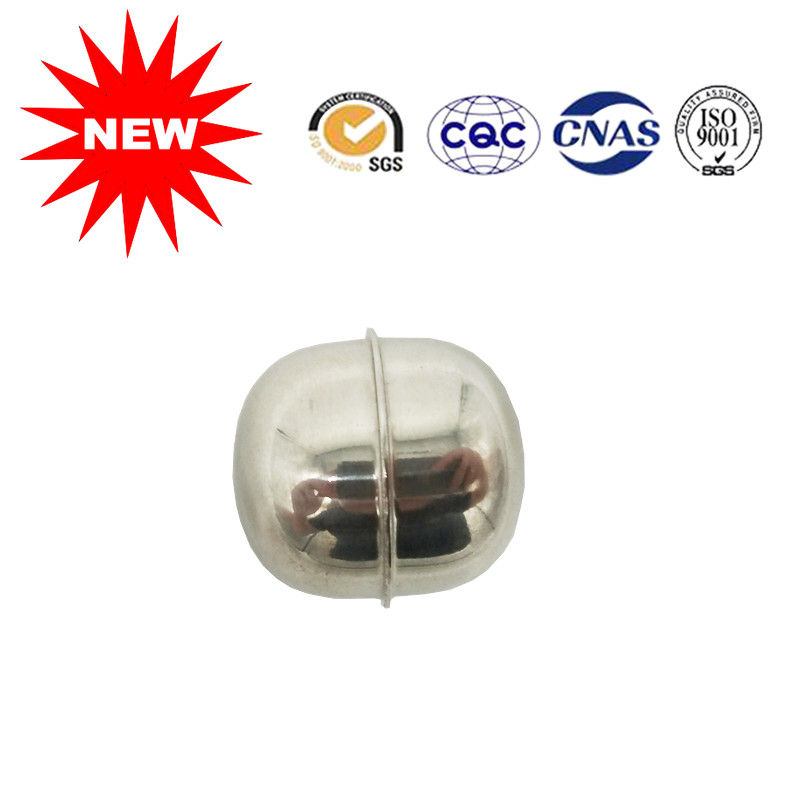

Commission copper float ball with Spray paint top quality from Sanlo
Video: https://youtu.be/IZC9AvFdK1M
Introduction:
The magnetic flap level gauge (also known as the magnetic float level gauge) is developed based on the buoyancy principle and magnetic coupling. When the liquid level in the measured container rises and falls, the magnetic float in the body tube of the liquid level gauge also rises and falls, and the permanent magnetic steel in the float is transmitted to the magnetic flip column indicator through magnetic coupling, driving the red and white flipping column to flip 180 °, when the liquid level rises, the column changes from white to red. When the liquid level drops, the column changes from red to white, and the red-white junction of the indicator is the actual height of the liquid level inside the container, so that the liquid level is clear. Instructions.
Our Boutique:
Custom made type Technology:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
FAQ:
Q: What about the delivery time of your products?
A: 10-15days.
Fast Delivery once you confirmed your design, we can produce it as fast as possible, and deliver it as quick and convenient as possible.
Q: What information do I need to supply when I have an inquiry?
A: If you have any inquiry, please kindly advise the following items: size,material,pressure,magentic flux,S.G. ,medium, model NO.
