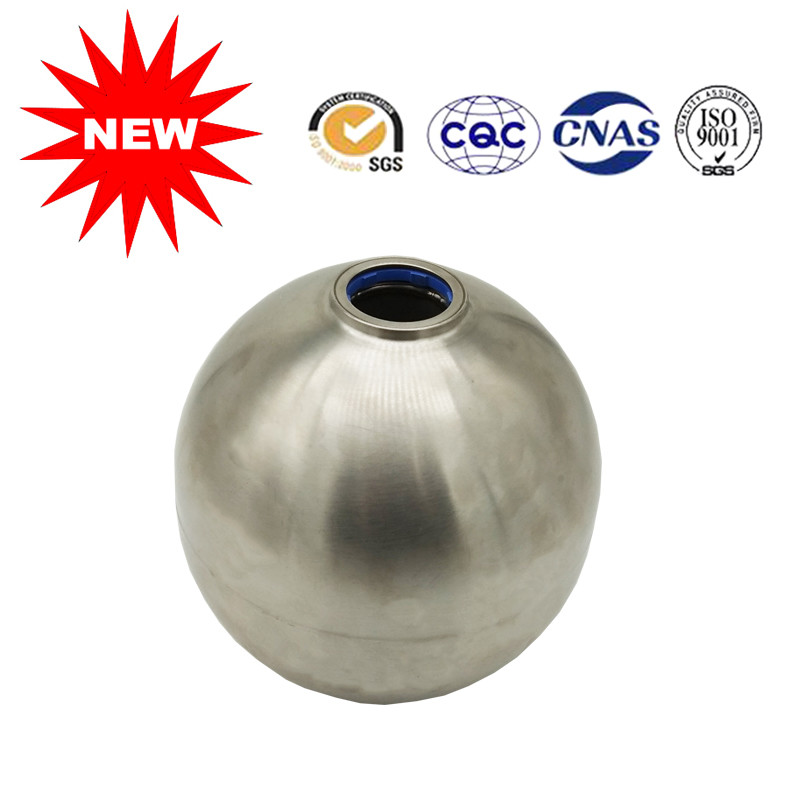

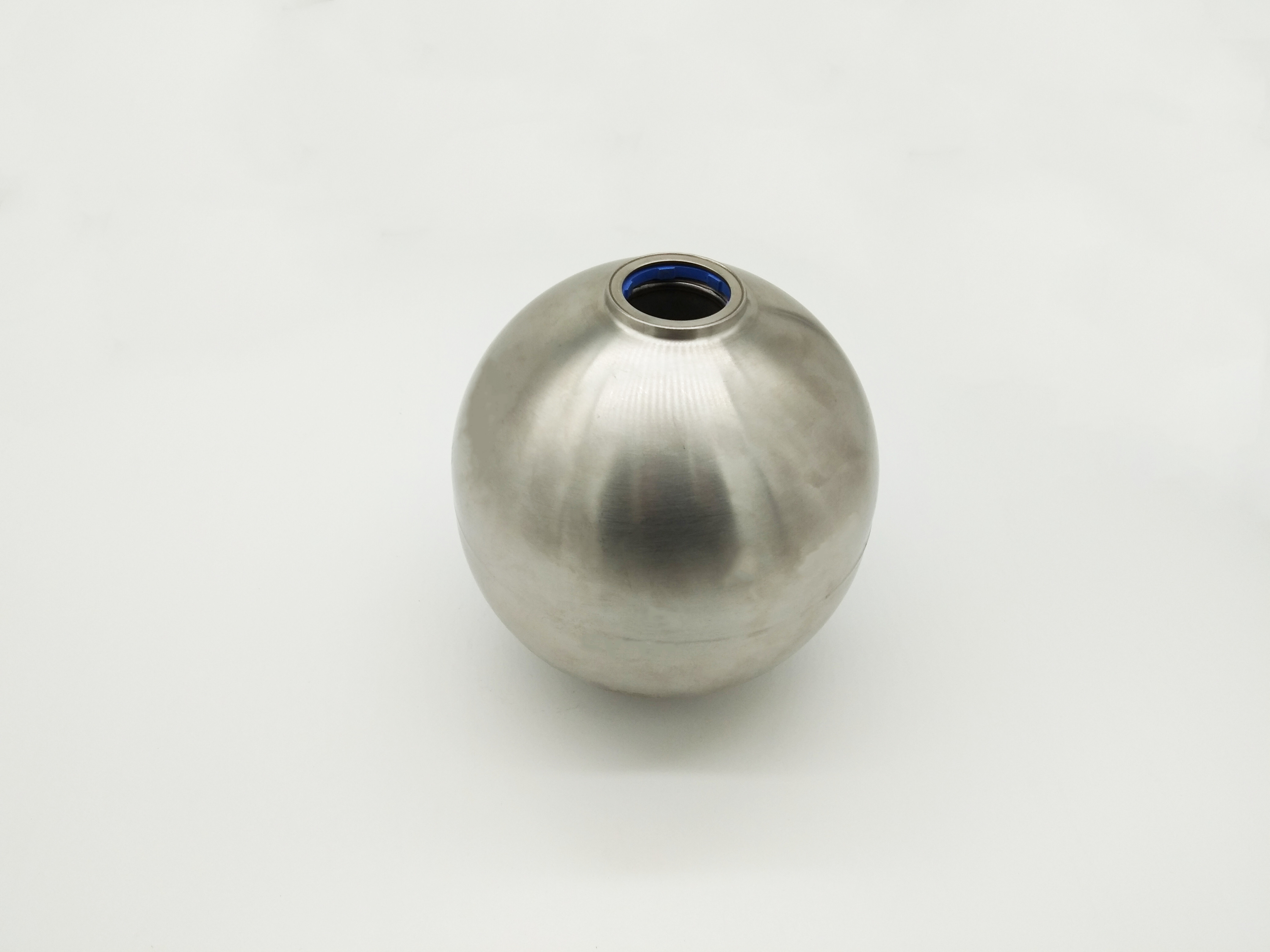

Wear Resistance Hollow Metal Float Balls -100-300 Operating Temperature

Basic Information
Place of Origin: China
Brand Name: Sanlo
Certification: ISO9000
Model Number: Commission
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 30days
Payment Terms: T/T, Western Union
Detail Information
Company: Manufacturer And Trade Export Market: European And American
Shipment Time: 30 Days Stress Environment: Atmospheric Pressure
H.S Code: 90932900090 Main Material: 316L/304
Operating Temperature: -100-300 High Withstand Voltage: 8.5MPA
High Light:

small ball valve float


floating steel ball

Product Description

Commission metal float ball like tank with thread 100 top quality from Sanlo







     The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.



Custom made type Technology:


Shape Dimensions ΦA×B×ΦC Material Thickness(mm) Pressure(Mpa) Morphology Connection Type
  Φ70×36×Φ16 304 316L 0.8 2.5 Character/Polishing
Φ80×41×Φ16 0.8 2.5 Character/Polishing
Φ110×42×Φ16 0.8 2.5 Character/Polishing
Φ146×56×Φ18 0.8 1.6 Character/Polishing
Φ170×68×Φ18 0.8 1.6 Character/Polishing
Φ225×80×Φ25 1.0 1.6 Character/Polishing
Φ278×128×Φ30 1.2 1.6 Character/Polishing
Φ325×105×Φ30 1.2 1.6 Character/Polishing
Φ375×141×Φ30 1.5 1.6 Character/Polishing
  Φ150×70×Φ16 316L 1.0 3.2 Character/Polishing
Φ190×105×Φ16 1.2 2.5 Character/Polishing
Φ240×125×Φ22 1.5 2.2 Character/Polishing


Working principle:


    The free semi-float trap has only one semi-floating ball barrel as the moving part, and the opening is downward, and the barrel is the opening and closing member and the sealing member. The entire spherical surface can be sealed, has a long service life, can resist water hammer, has no wearing parts, no faults, is durable, and has no steam leakage. The back pressure ratio is more than 80%, and the condensed water can be discharged at a saturated temperature. The minimum degree of subcooling is 0 ° C. There is no water in the heating equipment, which can make the heating equipment achieve the best heat exchange efficiency.

    When the device is just started, the air and low-temperature condensate in the pipeline enter the trap through the launch tube. The bimetal evacuation element in the valve bounces the bucket, the valve opens, and the air and low-temperature condensate are quickly discharged. When the steam enters the barrel, the barrel generates upward buoyancy, and the temperature inside the valve rises, the bimetal evacuation element contracts, the ball floats to the valve port, and the valve closes. When the steam in the bucket becomes condensed water, the bucket loses buoyancy and sinks, the valve opens, and the condensate is quickly discharged. When the steam re-enters the barrel, the valve closes again, intermittently and continuously.


Our biggest advantage:


    In addition to our nationally leading cesium mass spectrometry testing equipment, we can ensure that 100% of the quality products are not leaked. What's more, we have our own second inspection. The factory ensures the technology of the products, but we also guarantee that Before delivery, there is a special person to check the appearance of the product. If there is a trace of it, we will immediately return to the factory to provide a product that is aesthetically pleasing, so as to ensure that the products that arrive at the customer are all boutique products. And after the test, we will give a second test report to the customer to ensure our high product quality.




Float switch
Level controller
Level gauge magnetic flap
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump


Wear Resistance Hollow Metal Float Balls -100-300 Operating Temperature




Testing :


    Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
    The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.


Our factory :


Wear Resistance Hollow Metal Float Balls -100-300 Operating Temperature


Our repot :


Wear Resistance Hollow Metal Float Balls -100-300 Operating Temperature











Wear Resistance Hollow Metal Float Balls -100-300 Operating Temperature
