| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Commission |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Company: | Manufacturer And Trade | Export Market: | European And American |
|---|---|---|---|
| Shipment Time: | 30 Days | Stress Environment: | Atmospheric Pressure |
| H.S Code: | 90932900090 | Material: | 316L |
| High Light: | floating metal ball,floating steel ball |
||

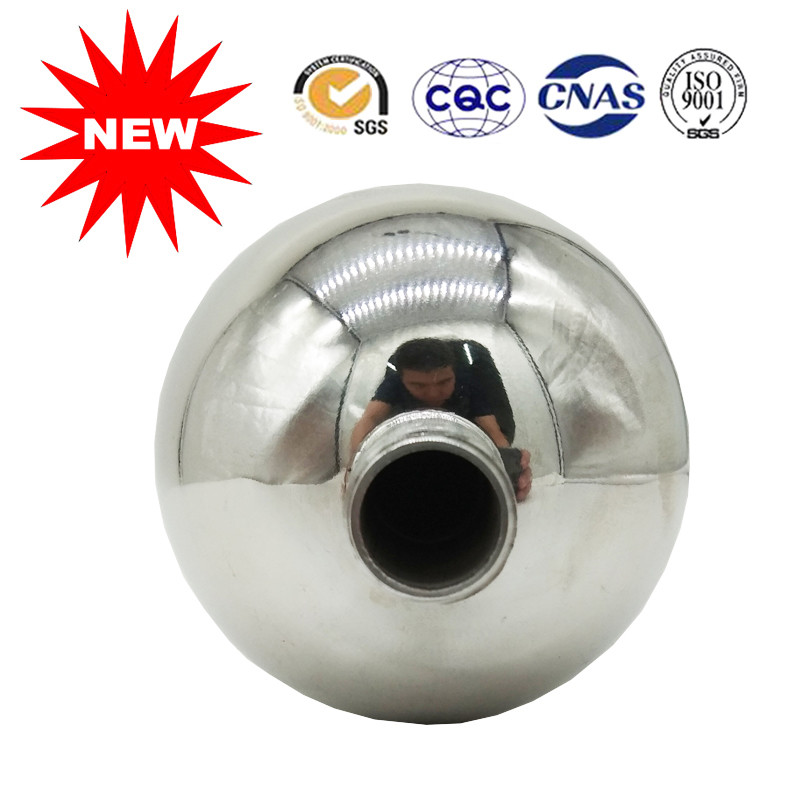

Commission metal float ball like tank with thread 80*50 top quality from Sanlo
Video:https://youtu.be/IZC9AvFdK1M
Description:

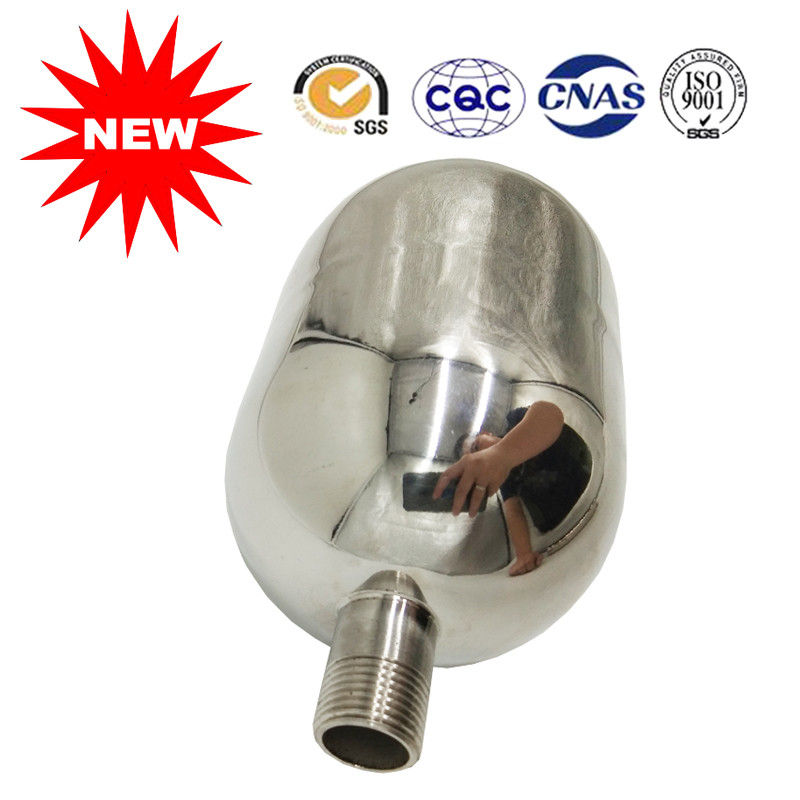

The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Custom made type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Thickness(mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ70×36×Φ16 | 304 316L | 0.8 | 2.5 | Character/Polishing | ||
| Φ80×41×Φ16 | 0.8 | 2.5 | Character/Polishing | |||
| Φ110×42×Φ16 | 0.8 | 2.5 | Character/Polishing | |||
| Φ146×56×Φ18 | 0.8 | 1.6 | Character/Polishing | |||
| Φ170×68×Φ18 | 0.8 | 1.6 | Character/Polishing | |||
| Φ225×80×Φ25 | 1.0 | 1.6 | Character/Polishing | |||
| Φ278×128×Φ30 | 1.2 | 1.6 | Character/Polishing | |||
| Φ325×105×Φ30 | 1.2 | 1.6 | Character/Polishing | |||
| Φ375×141×Φ30 | 1.5 | 1.6 | Character/Polishing | |||
| Φ150×70×Φ16 | 316L | 1.0 | 3.2 | Character/Polishing | ||
| Φ190×105×Φ16 | 1.2 | 2.5 | Character/Polishing | |||
| Φ240×125×Φ22 | 1.5 | 2.2 | Character/Polishing |
Our biggest advantage:
In addition to our nationally leading cesium mass spectrometry testing equipment, we can ensure that 100% of the quality products are not leaked. What's more, we have our own second inspection. The factory ensures the technology of the products, but we also guarantee that Before delivery, there is a special person to check the appearance of the product. If there is a trace of it, we will immediately return to the factory to provide a product that is aesthetically pleasing, so as to ensure that the products that arrive at the customer are all boutique products. And after the test, we will give a second test report to the customer to ensure our high product quality.
Our usually stock :
| Magnetic float type | Material | STOCK QTY |
| Φ24*24 | 316L | 17000 |
| Φ25*28 | 316L | 10000 |
| Φ28*28 | 316L | 20000 |
| Φ30*28 | 316L | 15000 |
| Φ38*26 | 316L | 5000 |
| Φ40*35 | 316L | 4500 |
| Φ42*50 | 316L | 4000 |
| Φ45*56 | 316L | 3527 |
| Φ51*61 | 316L | 2580 |
| Φ52*50 | 316L | 2365 |
| Φ52*68 | 316L | 1258 |
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
