| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | Commission |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Company: | Manufacturer And Trade | Drive Mode: | Hydraulic Control |
|---|---|---|---|
| High Withstand Voltage: | 1.6mpa-6mpa（Mpa） | Stress Environment: | Atmospheric Pressure |
| Export Market: | European And American | Material: | 316L |
| High Light: | floating metal ball,floating steel ball |
||

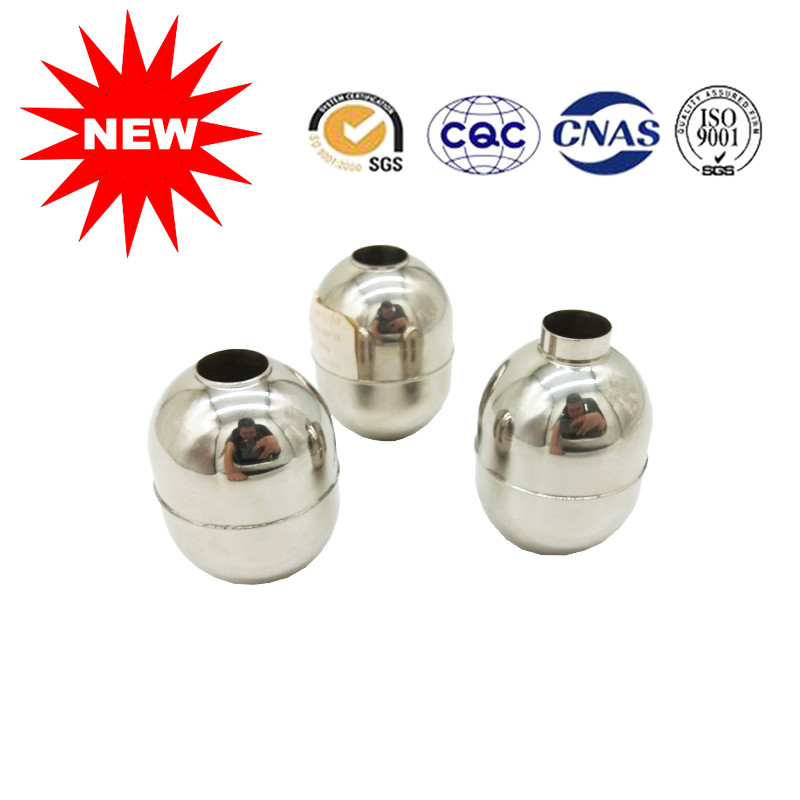

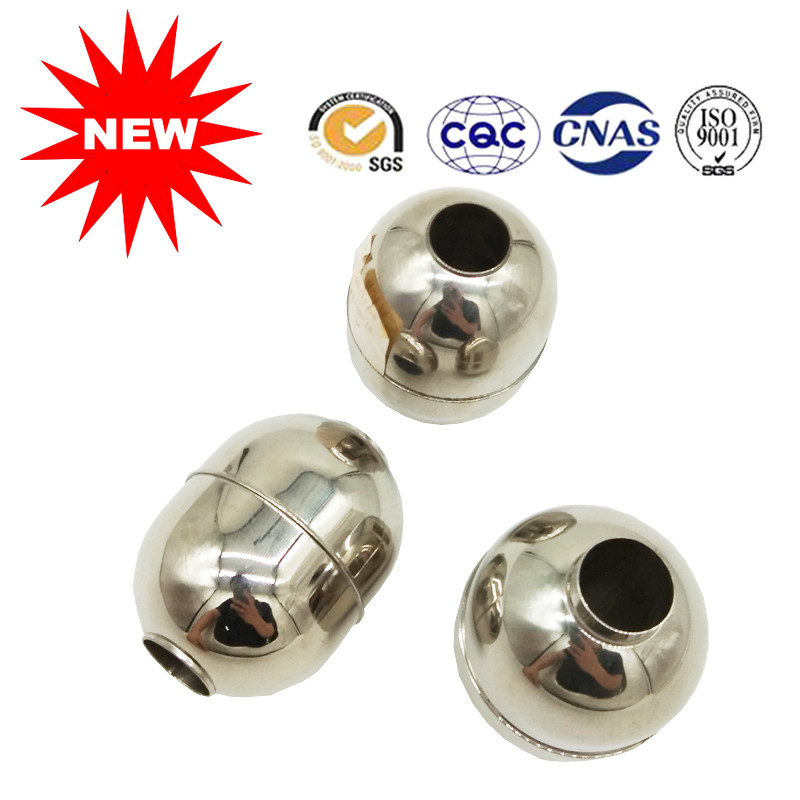

Commission metal float ball like tank with thread 80*50 top quality from Sanlo
Video: https://youtu.be/IZC9AvFdK1M
Introduction:
The components of the magnetic flap level gauge are made of 1Cr18Ni9Ti, 316L, OCr18Ni9Ti, 1Cr18Ni9Ti-lined PTFE (polytetrafluoroethylene), PVC, PP and other imported components, which have excellent reliability and corrosion resistance.
Custom made type Technology:
| Dimensions ΦA×B×ΦC | Material | Thickness(mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ50×175×M16 | 304 | 0.8 | 1.0 | Polishing | Inch Metric system Thread |
| Φ150×320×M25 | 304 | 1.2 | 1.6 | Polishing |
Opening process
1. In the closed position, the ball is pressed by the mechanical pressure of the valve stem and pressed against the valve seat.
2. When the handwheel is turned counterclockwise, the valve stem moves in the opposite direction, and the bottom angular plane causes the ball to disengage from the valve seat.
3. The valve stem continues to lift and interacts with the guide pins in the spiral groove of the valve stem to cause the ball to begin to rotate without friction.
4. Until the fully open position, the stem is raised to the extreme position and the ball is rotated to the fully open position.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
