| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | custom made |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Polishing: | Yes | Main Export Market: | European And American |
|---|---|---|---|
| Main Export: | European And American | Color: | Light |
| Company: | Manufacturer And Trade | H.S Code: | 9032900090 |
| High Light: | toilet tank float ball,toilet valve float |
||

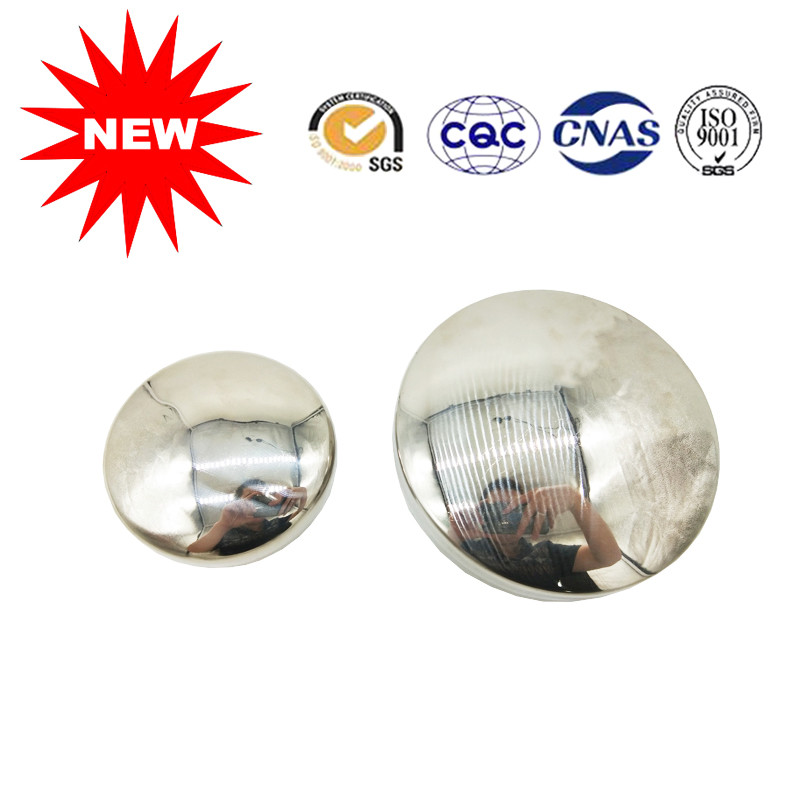

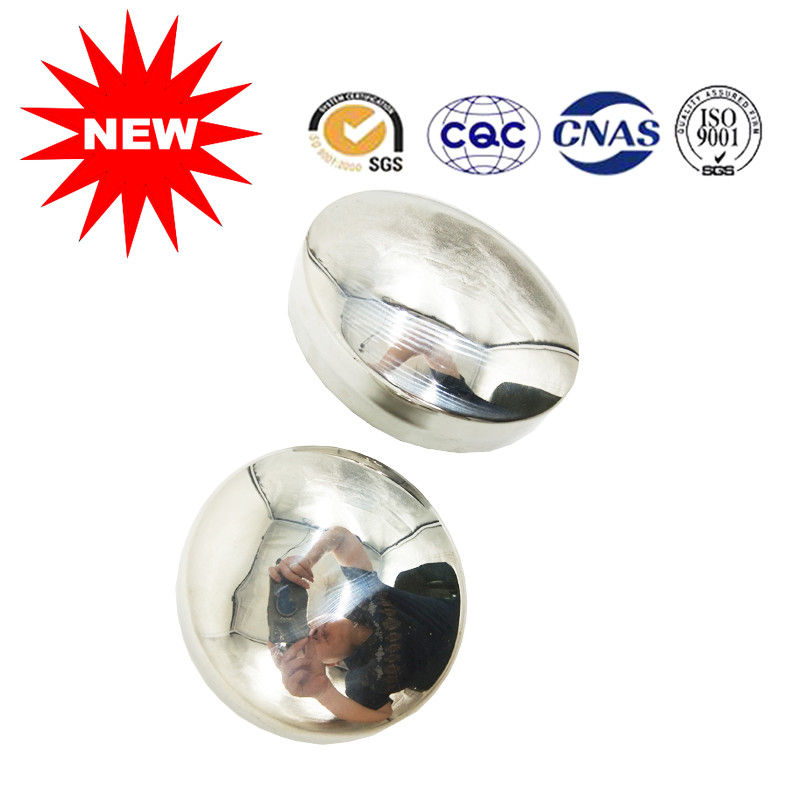

Custom made Round float ball 80*50 with top quality from Sanlo
Video: https://youtu.be/IZC9AvFdK1M
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Product:
 |
|
|
Custom made type Technology:
| Dimensions ΦA×B×ΦC | Material | Thickness(mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ70×36×Φ16 | 304 316L | 0.8 | 2.5 | Character/Polishing | |
| Φ80×41×Φ16 | 0.8 | 2.5 | Character/Polishing | ||
| Φ110×42×Φ16 | 0.8 | 2.5 | Character/Polishing | ||
| Φ146×56×Φ18 | 0.8 | 1.6 | Character/Polishing |
Working principle:
The free float trap has a simple structure, and there is only one stainless steel hollow float with fine moving parts inside. It is both a float and a starter, no fragile parts, and has a long service life. The YQ trap has a Y series automatic inside. The air exhaust device is very sensitive and can automatically discharge air and has high work quality.
When the equipment is started, the air in the pipeline is discharged through the Y series automatic air exhaust device. The low temperature condensed water enters the trap. The liquid level of the condensate rises, the float rises, the valve opens, the condensate is quickly discharged, and the steam enters quickly.
The equipment and equipment are rapidly warmed up, and the temperature-sensitive liquid of the Y-series automatic air-discharging device expands, and the automatic air-discharging device is closed. The trap begins to work normally, and the float moves up and down with the condensate level, blocking steam drainage. The valve seat of the free float trap is always below the liquid level, forming a water seal, no steam leakage, and the energy saving effect is good. The minimum working pressure is 0.01Mpa, and it is not affected by temperature and working pressure fluctuations from 0.01Mpa to the maximum operating pressure range, and continuous drainage. It can discharge condensed water with saturated temperature, the minimum degree of subcooling is 0 °C, and there is no water in the heating equipment, which can make the heating equipment achieve the best heat exchange efficiency. With a back pressure of more than 85%, it is one of the most ideal steam traps for production process heating equipment.
316L material characteristics:
1) The appearance of cold rolled products is good and beautiful;
2) Excellent corrosion resistance, especially pitting resistance due to the addition of Mo;
3) Excellent high temperature strength
4) Excellent work hardening (weak magnetic properties after processing)
5) the solution state is non-magnetic;
6) Relative to 304 stainless steel, the price is higher.
