| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | custom made |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Model Type: | Custom Made | H.S Code: | 8481809000 |
|---|---|---|---|
| Main Material: | Copper/316L | Use: | Valve |
| Thickness: | Custom Made | Pressure: | Custom Made |
| High Light: | ballcock float ball,toilet tank float ball |
||

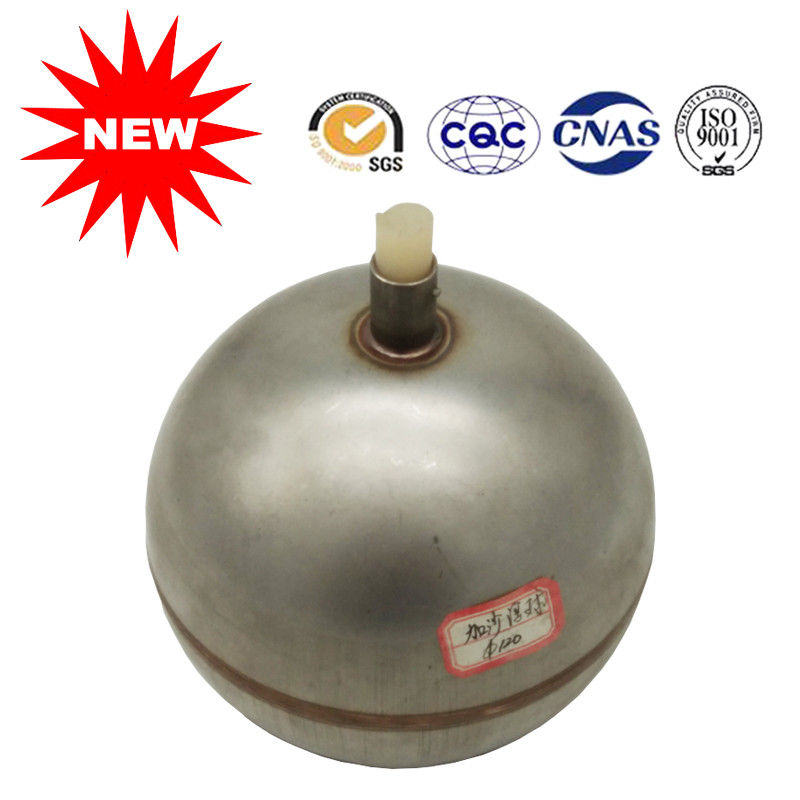

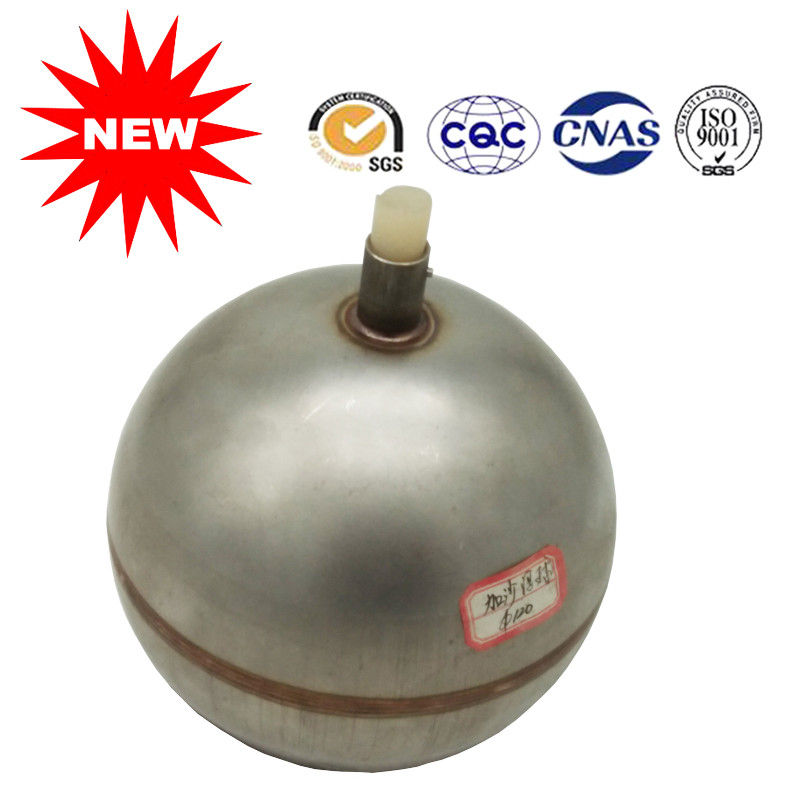

Custom made Round float ball with two male for switch from Sanlo company with the top quality
Video: https://youtu.be/lTT3v90H_1g
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Working principle:
The basic characteristics of the lever float trap are the same as that of the free float type. The internal structure is that the float connecting rod drives the valve core, and the valve is opened and closed with the liquid level of the condensate. Lever-float traps increase the condensate displacement with dual seats for up to various traps
It has a large displacement and a maximum displacement of 100 tons/hour. It is the most ideal steam trap for large heating equipment. .
Normal type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| 60 | 304 | 0.6 | 8.0 | Polishing | Freestyle | |
| 60,65,68 | 304 | 0.7 | 8.0 | Polishing | ||
| 70,75 | 304 | 0.8 | 8.0 | Polishing | ||
| 80,90,94 | 304 | 0.8 | 6.4 | Polishing | ||
| 98,100,102,110 | 304 | 0.9 | 4.0 | Polishing | ||
| 120,125 | 304 | 0.9 | 4.0 | Polishing | ||
| 130,135 | 304 | 1.0 | 4.0 | Polishing | ||
| 140 | 304 | 1.0 | 4.0 | Polishing | ||
| 150,157,177 | 304 | 1.2 | 3.2 | Polishing | ||
| 190 | 304 | 1.4 | 3.2 | Polishing | ||
| 200,210 | 304 | 1.5 | 3.2 | Polishing | ||
| 220,240 | 304 | 1.8 | 3.2 | Polishing | ||
| 250 | 304 | 2.0 | 3.2 | Polishing | ||
| 280 | 304 | 2.5 | 3.2 | Polishing | ||
| 290 | 304 | 2.5 | 3.2 | Polishing | ||
| 320 | 304 | 3.0 | 3.2 | Polishing | ||
| 382 | 304 | 1.2 | 1.0 | Polishing | ||
| 400 | 304 | 4.0 | 3.2 | Polishing | ||
| Precision float applies to trap valve,vent valve and check valves. | ||||||
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
