| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Type: | Customize | Production Time: | 20-30days |
|---|---|---|---|
| Company: | Manufacturing And Trade | Appliance: | Switch |
| Pressure: | 1-3 MPA | Main Export Market: | European And American |
| High Light: | cylindrical float,fueltank gauge float |
||

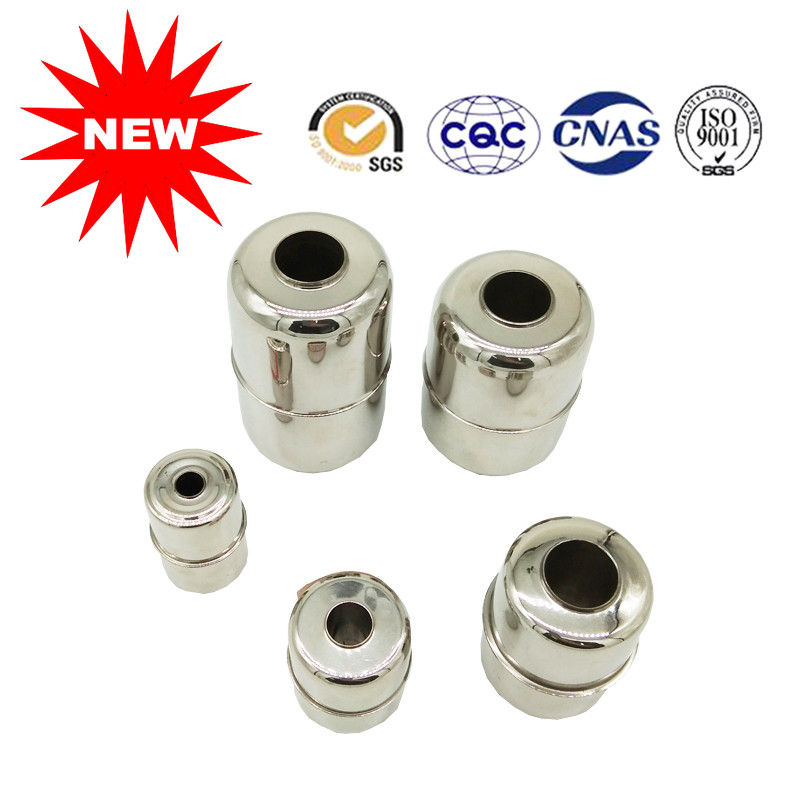

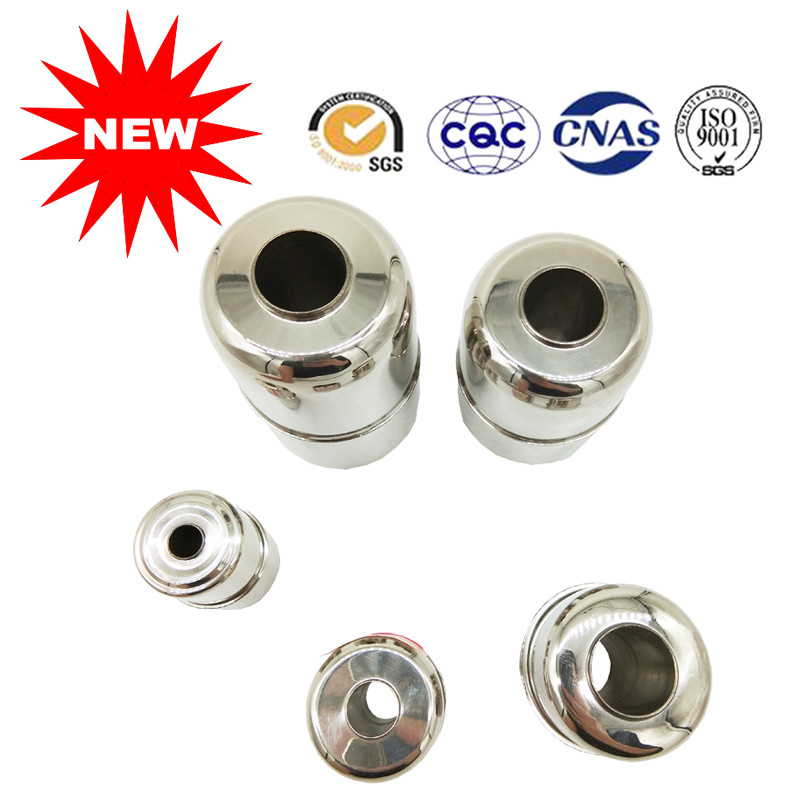

Steel liquid level float ball with handle 70*23 brushed 110MM from Sanlo company with the top quality
Video: https://youtu.be/IZC9AvFdK1M
Description:
The float level controller is suitable for liquid control of liquids in various containers. When the liquid level reaches the upper and lower switching values, the controller contacts send on/off switch signals. The product series is divided into two categories: explosion-proof or non-explosion-proof. The explosion-proof type can be used for the level control of the flammable and explosive medium in class 1.2 and pressure groups in groups A, B and C. The controller is not suitable for media that have strong corrosive effects on materials such as brass and stainless steel, and that contain magnetically conductive impurities.
Normal type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
1.Float level switch is widely used in water tank level auto control system, start up and close down the water pump or electric valve on the basis of liquid level.
2.Vertical installation switch can be mounted on the top or bottom of liquid tank; side installation switch can be mounted on the wall of liquid tank.
3.Switching type definition:
NO: Normally open, mounted switch on the top of tank, switching ON when float are rising.
NC: Normally close, mounted switch on the top of tank, switching OFF when float are rising.
