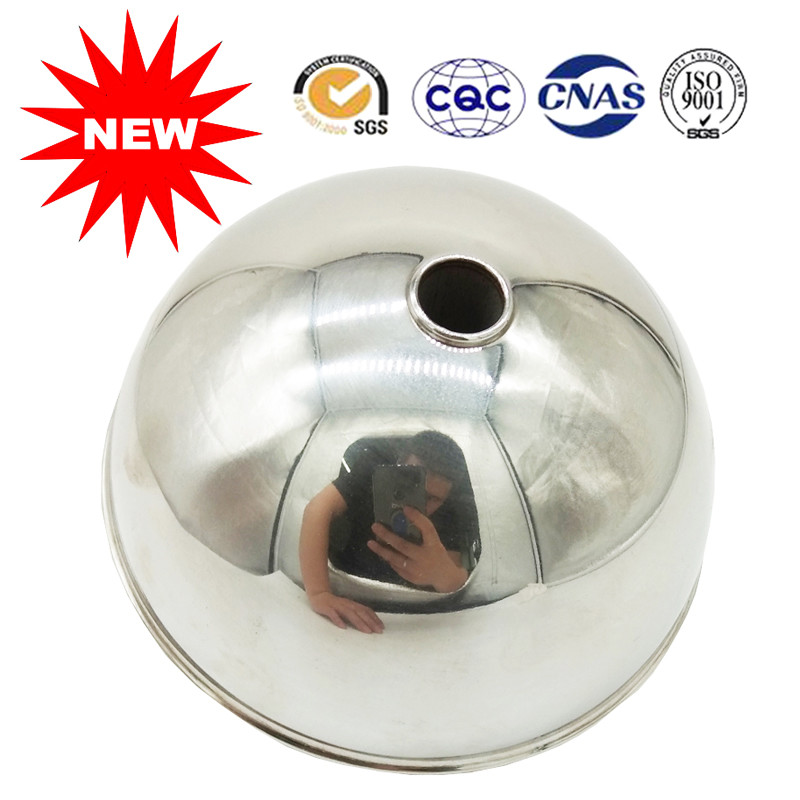

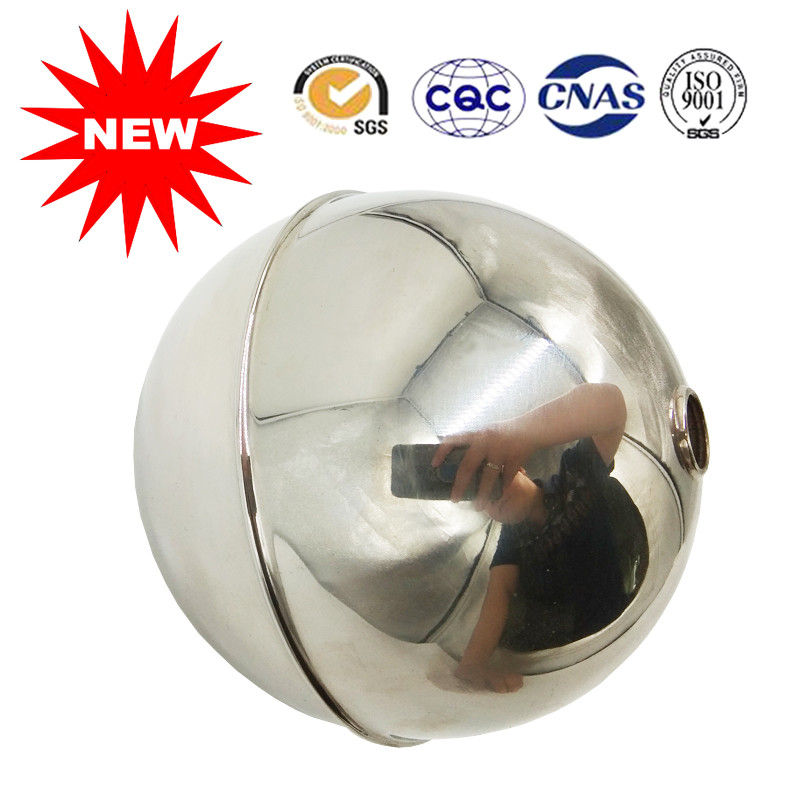

Steel Magnetic float ball 51*61 with Matte brushed 110MM from Sanlo company with the top quality
Video: https://youtu.be/IZC9AvFdK1M
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Working principle:
The free float trap has a simple structure, and there is only one stainless steel hollow float with fine moving parts inside. It is both a float and a starter, no fragile parts, and has a long service life. The YQ trap has a Y series automatic inside. The air exhaust device is very sensitive and can automatically discharge air and has high work quality.
When the equipment is started, the air in the pipeline is discharged through the Y series automatic air exhaust device. The low temperature condensed water enters the trap. The liquid level of the condensate rises, the float rises, the valve opens, the condensate is quickly discharged, and the steam enters quickly. The equipment and equipment are rapidly warmed up, and the temperature-sensitive liquid of the Y-series automatic air-discharging device expands, and the automatic air-discharging device is closed. The trap begins to work normally, and the float moves up and down with the condensate level, blocking steam drainage. The valve seat of the free float trap is always below the liquid level, forming a water seal, no steam leakage, and the energy saving effect is good. The minimum working pressure is 0.01Mpa, and it is not affected by temperature and working pressure fluctuations from 0.01Mpa to the maximum operating pressure range, and continuous drainage. It can discharge condensed water with saturated temperature, the minimum degree of subcooling is 0 °C, and there is no water in the heating equipment, which can make the heating equipment achieve the best heat exchange efficiency. With a back pressure of more than 85%, it is one of the most ideal steam traps for production process heating equipment.
Normal type Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| | Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | |
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | |
| | Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 |
| This kind of ball float applies to float switch,and level control device etc. |
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Our biggest advantage:
In addition to our nationally leading cesium mass spectrometry testing equipment, we can ensure that 100% of the quality products are not leaked. What's more, we have our own second inspection. The factory ensures the technology of the products, but we also guarantee that Before delivery, there is a special person to check the appearance of the product. If there is a trace of it, we will immediately return to the factory to provide a product that is aesthetically pleasing, so as to ensure that the products that arrive at the customer are all boutique products. And after the test, we will give a second test report to the customer to ensure our high product quality.
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
Our testing equipment is a helium mass spectrometer. It is the first in China to use this equipment to detect floats, so that the floats that our factory goes out are 100% leak-free. In addition, after the factory quality inspection, we will also carry out The second test, mainly to check whether the appearance of the product is uneven, to ensure that our products go out are all fine, we can say that our quality testing is the first or second in China. After 2 tests, we will send a test report to the customer, which is listed below.
