| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Type: | Normal One | Delivery Time: | 3 Days |
|---|---|---|---|
| Size: | 30*28*9.5 | Working Place: | Switch |
| Max Pressure: | 4.5MPA | Main Country: | European And American |
| Stock: | Have | Polishing: | Have |
| High Light: | water ball float,water level ball |
||

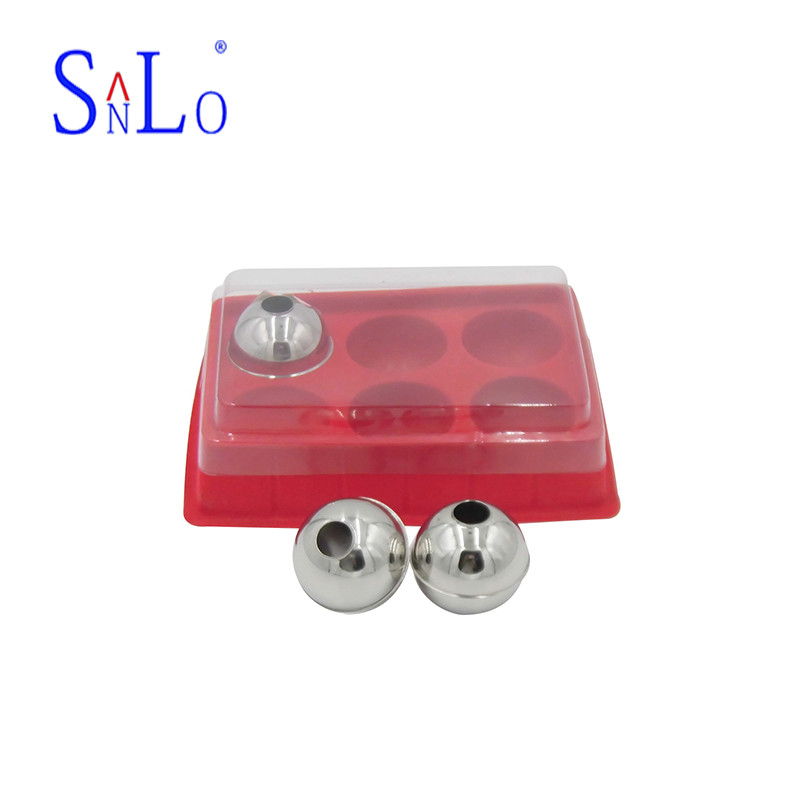

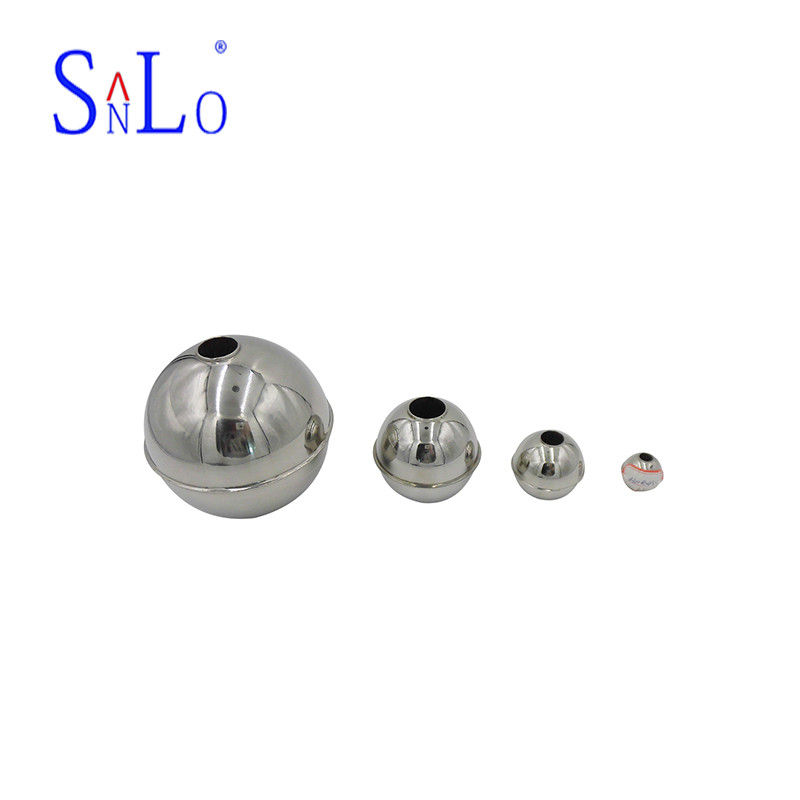

Normal type switch float ball 30*28*9.5 from Sanlo company with the top quality
Video: https://youtu.be/5DFuXWGCdFI
Description:
This product is the cover of the valve. It is our old customer who wants us to help. The customer provides the drawings and technical parameters. We will help you to verify and modify it later. After confirming with the customer, we will produce a sample and send it to the customer for confirmation. After the final confirmation, the customer will start the final production. Before leaving the factory, we will check the appearance of the product to ensure that it is delivered to the customer.
Working principle:
The magnetic flip column level gauge is also called the magnetic flap level gauge, and its structure is mainly designed and produced based on the principle of buoyancy and magnetic force. The position of the float with a magnet (referred to as a magnetic float) in the measured medium is affected by buoyancy. The change of the liquid level causes the change of the position of the magnetic float, the magnetostatic coupling of the magnetic float and the magnetic flip (also become the magnetic flap) causes the magnetic flip to flip a certain angle (the surface of the magnetic flip is coated with different colors), thereby reflecting The condition of the liquid level in the container.
With the electronic module and transmitter module composed of sensor (reed switch) and precision electronic components, the output resistance value signal, current value (4 ~ 20mA) signal, switching signal and other electrical signals can be transmitted. This enables a perfect combination of on-site observation and remote control.
Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 | |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 | |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 | |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± | |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 | |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | ||
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Testing :
Our testing equipment is a helium mass spectrometer. It is the first in China to use this equipment to detect floats, so that the floats that our factory goes out are 100% leak-free. In addition, after the factory quality inspection, we will also carry out The second test, mainly to check whether the appearance of the product is uneven, to ensure that our products go out are all fine, we can say that our quality testing is the first or second in China. After 2 tests, we will send a test report to the customer, which is listed below.
