| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Export Country: | European And American | Production Time: | 20-30days |
|---|---|---|---|
| Main Material: | 316L | Size: | 100*40 |
| HS Code: | 9032900090 | Specification: | Customize |
| High Light: | sump pump float ball,cistern ball float |
||

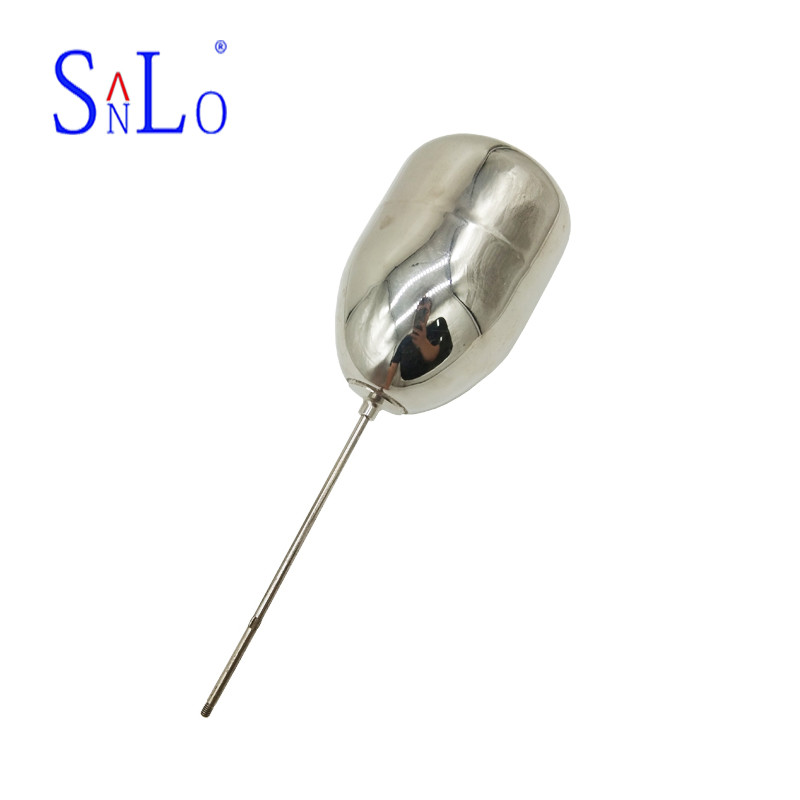

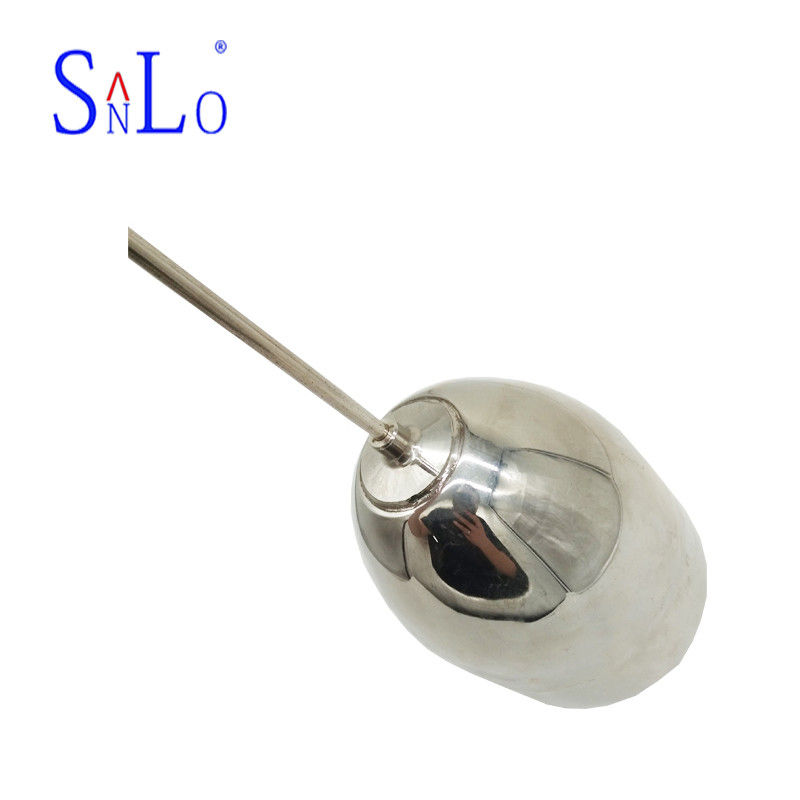

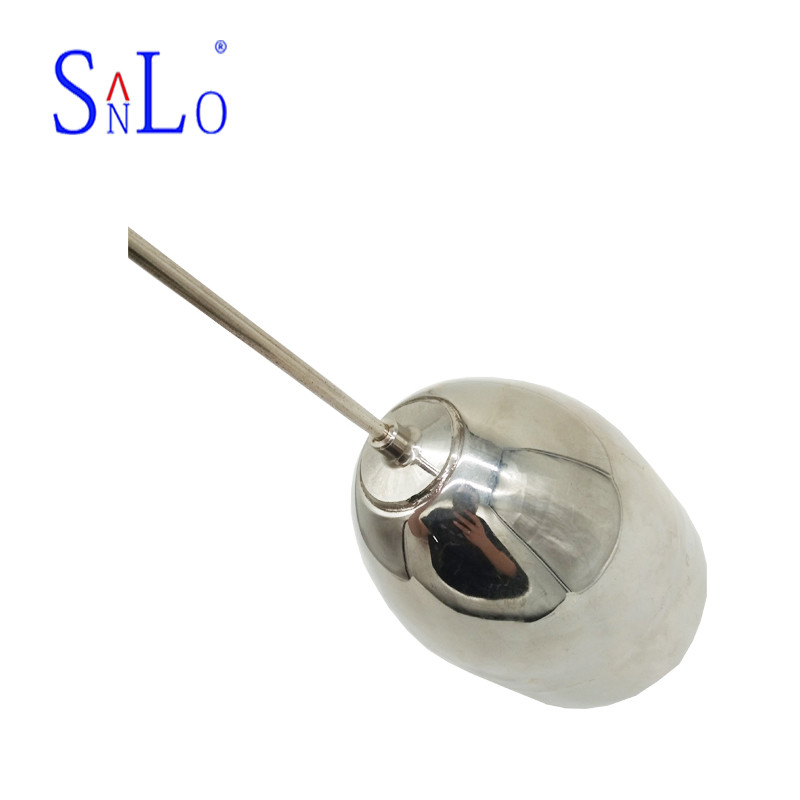

Customize Switch float with the ball with the sand 100*40 from Sanlo company with the top quality
Video: https://youtu.be/IZC9AvFdK1M
Description:
The side-mounted float ball level switch uses the buoyancy of the float ball to rise or fall with the liquid level to about 20 degrees with the horizontal plane, and the arm end swings under the action of the lever, thereby driving the micro switch in the junction box. Pass or disconnect.
Technology:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ50×125 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| Φ50×240 | 316L 304 | 1.0 2.5 4.0 | 80 | >0.8 | 150 | ||
| This kind of ball float suitable for magnetic flap applications. | |||||||
Characteristics:
●There are three types of floats: ψ41, ψ50, ψ75
●Plastic material is PP, PVDF, can be used in acid and alkali places
●SUS304/316 material, suitable for high temperature or high pressure tank
● Both side and top can be installed. The junction box is IP-65.
●The connecting flange has specifications of 92 x 92, JIS, DIN and ANSI; the mouth has 1-1/2, 2"PT, BSP or customer specified specifications.
● Withstand voltage up to 50kg/cm² applicable gravity 0.25 ~ 0.65
