| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Export: | European And American | Market: | OEM |
|---|---|---|---|
| Material: | 316L | Size: | 32*30 |
| HS Code: | 9032900090 | Working Place: | Switch |
| High Light: | toilet tank float ball,toilet valve float |
||

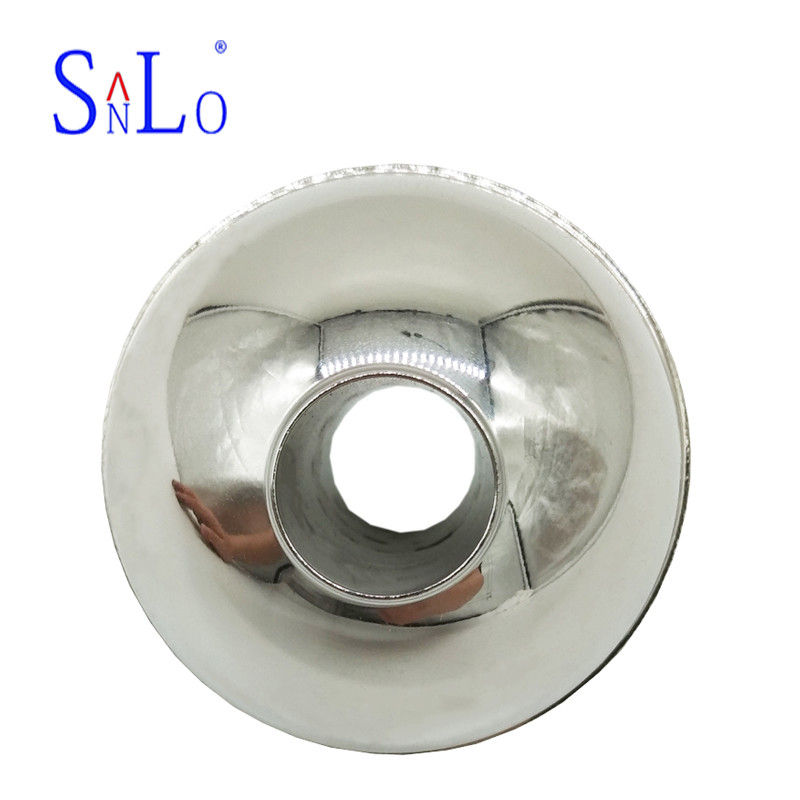

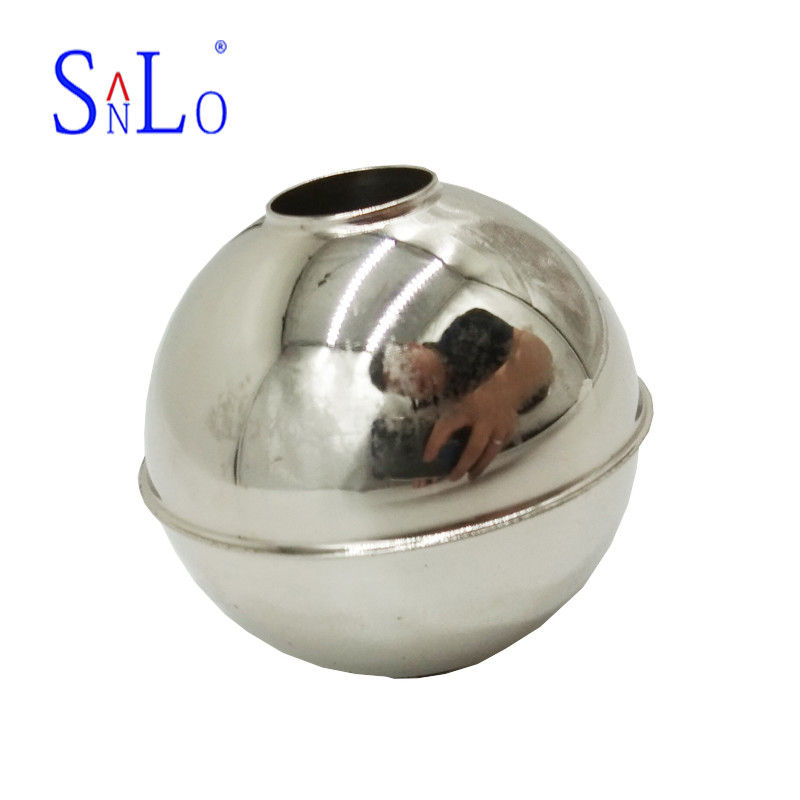

customize steel magnetic flat ball 32*30 from Sanlo company with the top quality
Video: https://youtu.be/sLf_ykxq6BM
Description:
The float ball is suitable for: float switch, liquid level gauge, liquid level controller, magnetic flap level gauge; valve: steam trap, exhaust valve, float valve, float check valve.
Seven elements of the float: size, pressure, magnetic flux, material, weight, specific gravity, medium
If you need to customize the float, you need to provide 7 major elements, which are indispensable.
Technology:
| Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 |
| This kind of ball float applies to float switch,and level control device etc. | ||||||
Working principle and characteristics:
Non-melting argon arc welding is the arc burning between a non-molten pole (usually a tungsten pole) and a workpiece. An inert gas (usually argon) that does not chemically react with the metal flows around the welding arc to form a protection. The hood prevents the tungsten extremes, the arc and the molten pool and the high temperature metal adjacent to the heat affected zone from coming into contact with the air, preventing oxidation and absorption of harmful gases. Thereby forming a dense welded joint, the mechanical properties are very good.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance.
