| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Country: | European And American | Main Material: | 304 |
|---|---|---|---|
| Process Temperature:: | Customize | Transport Package: | Tray /box |
| HS Code: | 9032900090 | Application: | Customize |
| High Light: | water ball float,water level ball |
||

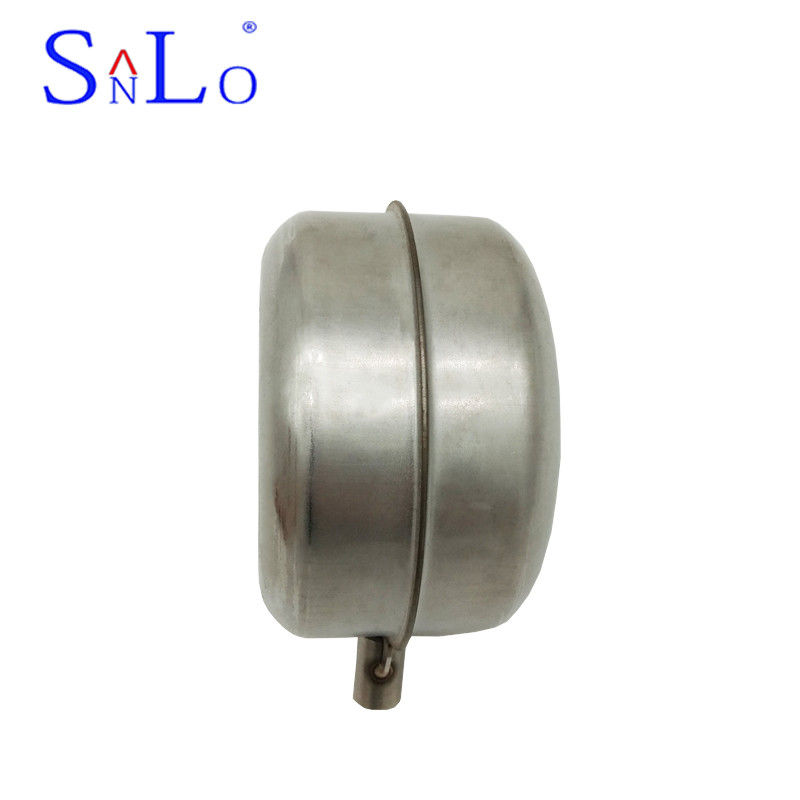

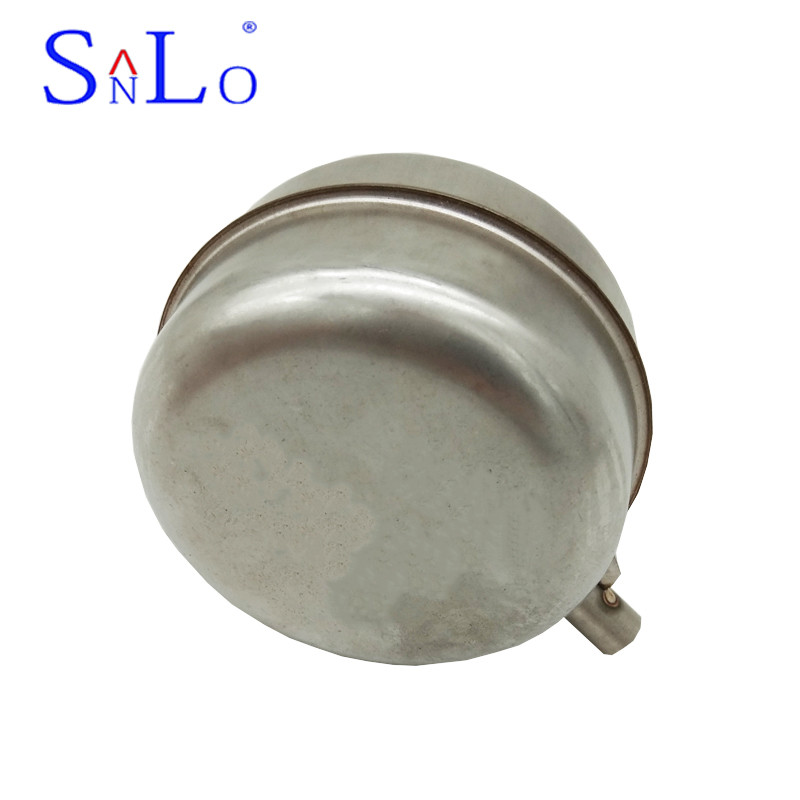

customize Steel parts with the ring 45*20 from Sanlo company with the top quality
Video: https://youtu.be/lTT3v90H_1g
Description:
Float switches are often used in the control of tank levels. No external power supply, side or top mounting, wide temperature and pressure range, a wide range of process connections, stainless steel wetted parts and explosion-proof design for a wide range of applications.
Technical Parameters:
| Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ60 | 304/316L | 0.7 | 1.6 | Character/Polishing | Lever/Thread |
| Φ70 | 304/316L | 0.8 | 1.6 | Character/Polishing |
Structural principle:
The side-mounted float ball level switch uses the principle of liquid buoyancy. When the float ball moves up and down due to buoyancy, the reed switch in the junction box is affected by the arm end magnet, and the "NC" contact and the "NO" contact are used. exchange. The same principle is applied to the micro switch device, and the magnet and the arm end magnet in front of the micro switch are mutually exclusive to push the micro switch, causing "NC" and "NO" actions.
Applicaction:
1. Control of industrial processes and dosing tanks
2. Food and beverage industry
3. Level control in shipping industry
4. Chemical and textile industry
