| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Market: | European And American | Material: | 304 |
|---|---|---|---|
| Size: | 50*150 | Production Time: | 30days |
| Pressure: | Customize | Polishing: | Yes |
| High Light: | water tank float ball,water tank shut off float |
||

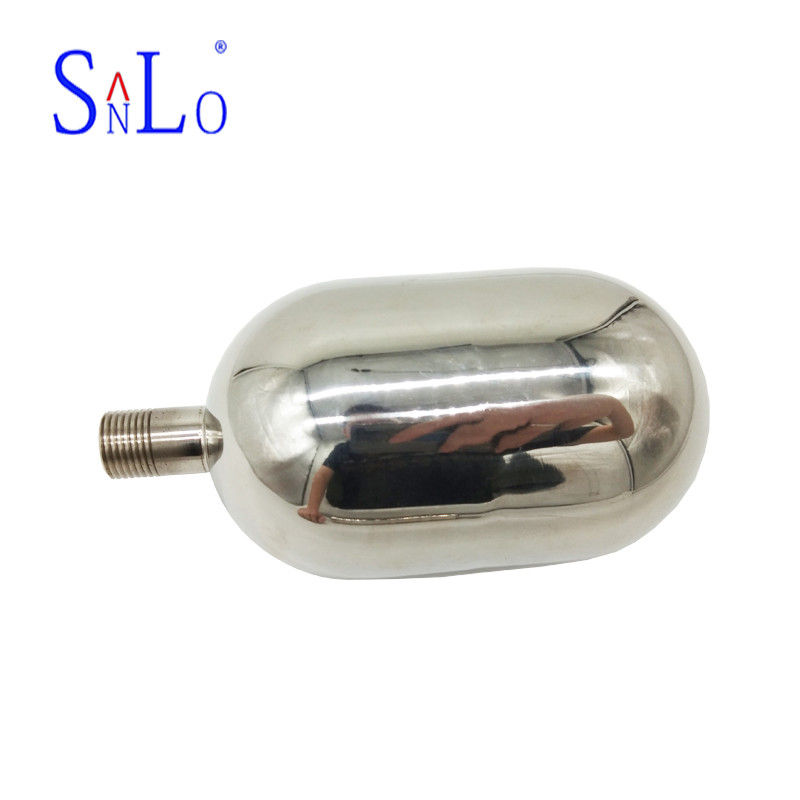

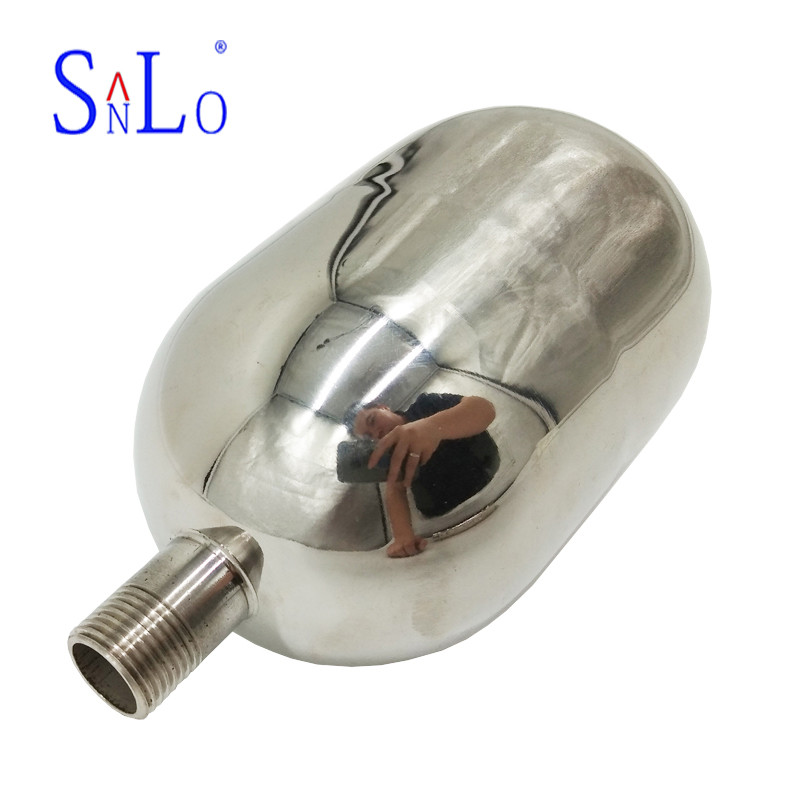

customize Tank type float ball 50*150 from Sanlo company with the top quality
Video: https://youtu.be/IZC9AvFdK1M
Description:
The bracket float is a custom-made float, not a conventional float. It is because the customer needs a short bracket to support it. According to the valve itself, a float is required. The customer needs to provide detailed drawings, media, and work elements. The installation dimensions of the valve body, etc., as far as possible detailed parameters, have our technical engineers to design a float that meets the customer's requirements according to the combination. The minimum number of such custom floats is 500.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| Φ70×36×Φ12 | 304 316L | 0.8 | 2.5 | Polishing/Character | ||
| Φ80×41×Φ16 | 0.8 | 2.5 | Polishing/Character | |||
| Φ110×42×Φ16 | 0.8 | 2.5 | Polishing/Character | |||
| Φ146×56×Φ18 | 0.8 | 1.6 | Polishing/Character | |||
| Φ170×68×Φ18 | 0.8 | 1.6 | Polishing/Character | |||
| Φ225×80×Φ25 | 1.0 | 1.6 | Polishing/Character | |||
| Φ278×127×Φ30 | 1.2 | 1.6 | Polishing/Character | |||
| Φ325×105×Φ30 | 1.2 | 1.6 | Polishing/Character | |||
| Φ375×141×Φ30 | 1.5 | 1.6 | Polishing/Character | |||
| Φ150×70×Φ16 | 316L | 1.0 | 3.2 | Polishing/Character | ||
| Φ190×105×Φ16 | 1.2 | 3.2 | Polishing/Character | |||
| Φ240×125×Φ22 | 1.5 | 3.2 | Polishing/Character | |||
| Flat floating ball applies to all kinds of Marine valves. | ||||||
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
