| Place of Origin: | China |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | customize |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 30days |
| Payment Terms: | T/T, Western Union |
| Main Market: | European And American | Material: | 316L、304 |
|---|---|---|---|
| Size: | 160 | Delivery Time: | 30days |
| Pressure: | Customize | Drawing: | Customer Offer It |
| High Light: | cylindrical float,fueltank gauge float |
||

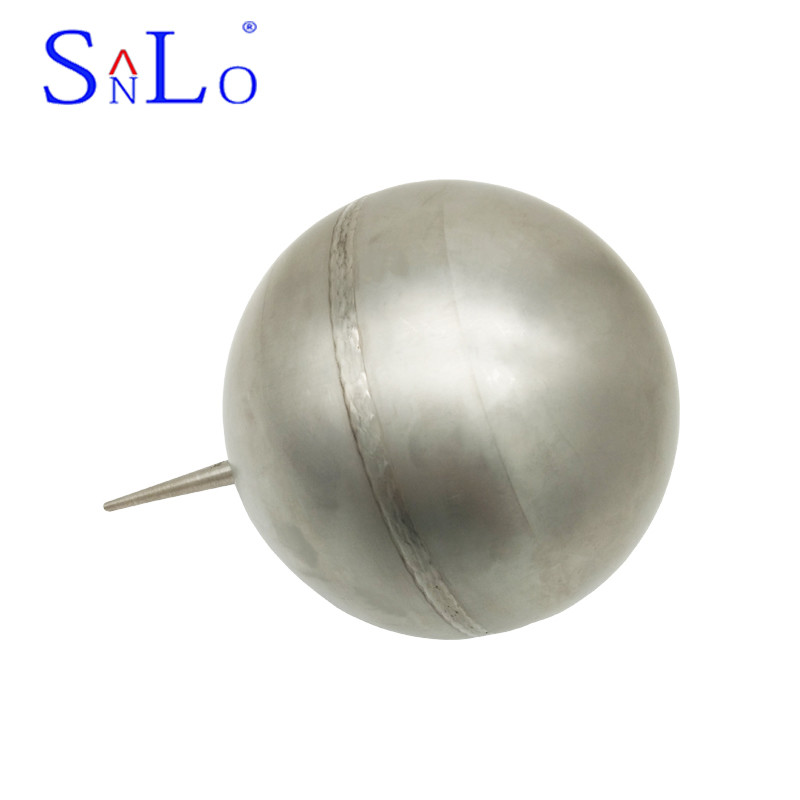

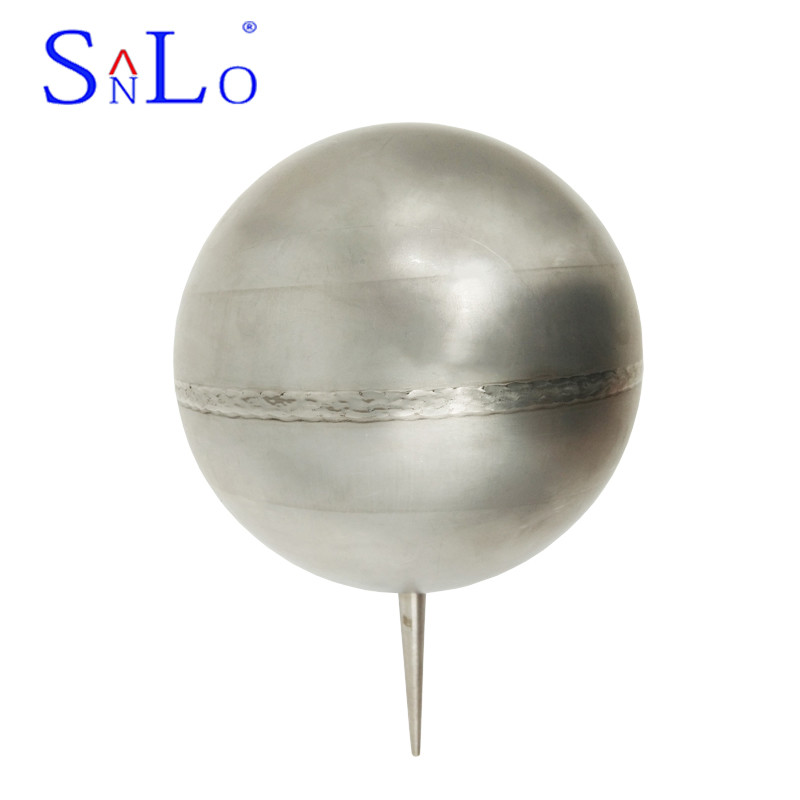

Mist with spikes to increase the float 160 from Sanlo company with the top quality
Video: https://youtu.be/lTT3v90H_1g
Introduction:
The float ball is suitable for: float switch, liquid level gauge, liquid level controller, magnetic flap level gauge; valve: steam trap, exhaust valve, float valve, float check valve.
Seven elements of the float: size, pressure, magnetic flux, material, weight, specific gravity, medium
The material is stainless steel, usually 316L/304, Monel, titanium steel, if you need better materials can be customized; the magnetic inside the magnetic ball usually uses ferrite.
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Thickness (mm) | Pressure(Mpa) | Morphology | Connection Type |
| 130,135 | 304 | 1.0 | 4.0 | Polishing | Freestyle | |
| 140 | 304 | 1.0 | 4.0 | Polishing | ||
| 150,157,177 | 304 | 1.2 | 3.2 | Polishing | ||
| 190 | 304 | 1.4 | 3.2 | Polishing | ||
| 200,210 | 304 | 1.5 | 3.2 | Polishing | ||
| 220,240 | 304 | 1.8 | 3.2 | Polishing | ||
| Precision float applies to trap valve,vent valve and check valves. | ||||||
Maintenance should consist of inspection to see that the float is free to move and coated with any substance , which would change its weight or volume significantly. IF this occurs, this float should be cleaned .This is easily accomplished without disturbing the installation . In addition , the stem may be wiped down to remove any buildup.The only repair possible in the field is replacement of either the float or stem . Dents or nicks on the float are usually of no consequence to operation.
Applicaction:
1.Control of industrial processes and dosing tanks
2.Food and beverage industry
3.Level control in shipping industry
4.Chemical and textile industry
