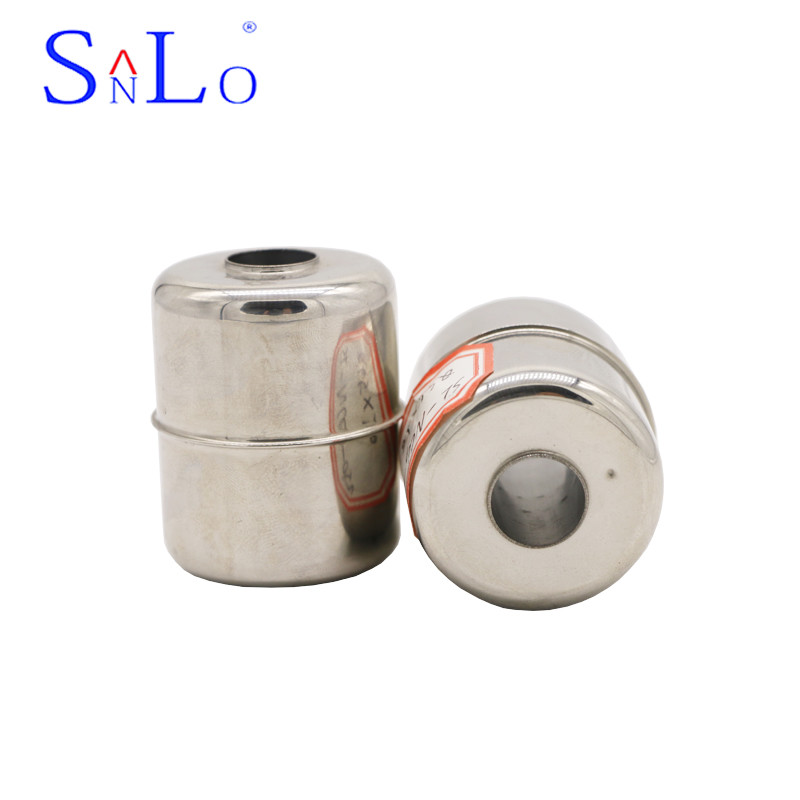

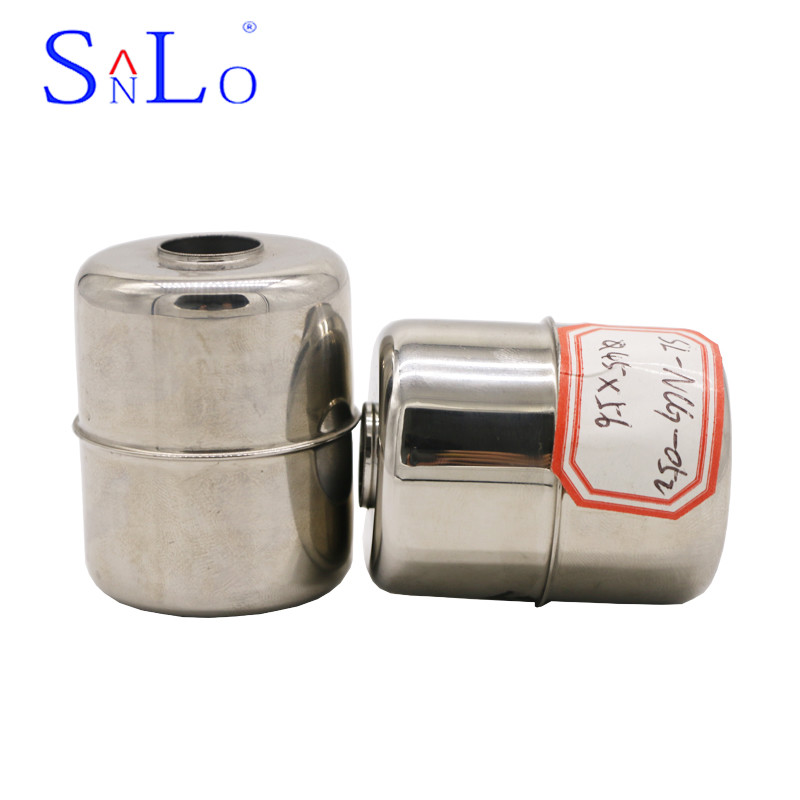

45*50*15.5 Level Control Floats , Magnetic Floating Ball -100-200 Degree Temperature

Basic Information
Place of Origin: china
Brand Name: Sanlo
Certification: ISO9000
Model Number: SL-NCG-054
Minimum Order Quantity: 500
Price: negotiable
Packaging Details: Box
Delivery Time: 2-5days
Payment Terms: T/T, Western Union
Supply Ability: 5000-10000/day
Detail Information
Export: European And American Material: 316L
Delivery Time: 2days Type: Boutique
Working Place: Level Switch Temperature: -100-200
High Light:

sump pump float ball

,

level control floats


Product Description

45*50*15.5 magnetic float ball for level switch from china factory with top quality





Video: https://youtu.be/GBL-SR0dkBQ





Quick Details:



Brand SanLo Type SL-NCG-054 Operating temperature -100--200 Working pressure 1.0-2.5MPA
Weight Claim Material 316L  High withstand voltage 2.5MPA Media specific gravity >0.50
certified product ISO9000 Type of magnet Ferrite





Technical Parameters:



Shape Dimensions ΦA×B×ΦC Material Pressure (Mpa) Temperature S.G Magnetic flux(MT) Weight (g)
  Φ25×25×Φ9.5 316L 1.0 -100~200 >0.85 40±3 5.5±5
Φ25×28×Φ9.5 316L 1.0 -100~200 >0.85 40±3 6±0.5
Φ28×28×Φ9.5 316L 1.0 -100~200 >0.80 40±3 8±1
Φ38×26×Φ9.5 316L 1.0 -100~200 >0.50 40±3 10.5±1
Φ40×35×Φ15.5 316L 1.0 -100~200 >0.60 60±3 24±1
Φ45×50×Φ15.5 316L 1.0 -100~200 >0.60 60±5 26±1
Φ45×56×Φ15.5 316L 1.0 -100~200 >0.50 60±5 ±
Φ49×50×Φ15.5 316L 1.0 -100~200 >0.50 40 60,100 27±1 32±1
Φ51×61×Φ15.5 316L 1.0 -100~200 >0.50 60±5 42±1
Φ65×90×Φ25 316L 1.0 -100~200 > 100±5
Φ65×111×Φ25 304 1.0 -100~200 > 100±5
  Φ30×Φ9.5 316L 3.5 -100~200 >0.80 40±3 7.5±1
Φ52×Φ15.5 316L 2.5 -100~200 >0.55 60±5 32±1
Φ75×Φ23 304 2.5 -100~200 >0.50 60±5 98±3
Φ125×Φ23 304 2.5 -100~200 >0.50 60±5 315±5
This kind of ball float applies to float switch,and level control device etc.









Features:



1. The reed switch does not need to be powered separately.



2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.



3. High reliability, low wiring cost and easy installation.



4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.



Application:



Float switch

Level controller

Level gauge magnetic flap

traps

exhaust valve

float valve

level gauge

pneumaatic diaphragm pump



45*50*15.5 Level Control Floats , Magnetic Floating Ball -100-200 Degree Temperature





Our biggest advantage:



     In addition to our nationally leading cesium mass spectrometry testing equipment, we can ensure that 100% of the quality products are not leaked. What's more, we have our own second inspection. The factory ensures the technology of the products, but we also guarantee that Before delivery, there is a special person to check the appearance of the product. If there is a trace of it, we will immediately return to the factory to provide a product that is aesthetically pleasing, so as to ensure that the products that arrive at the customer are all boutique products. And after the test, we will give a second test report to the customer to ensure our high product quality.





Testing :



       Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
       The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.





45*50*15.5 Level Control Floats , Magnetic Floating Ball -100-200 Degree Temperature
