| Place of Origin: | china |
|---|---|
| Brand Name: | Sanlo |
| Certification: | ISO9000 |
| Model Number: | SL-NCG-054 |
| Minimum Order Quantity: | 500 |
| Price: | negotiable |
| Packaging Details: | Box |
| Delivery Time: | 2-5days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000-10000/day |
| Market: | European And American | Material: | 316L |
|---|---|---|---|
| Delivery Time: | 2days | Type: | Boutique |
| Use: | Level Switch | Pressure: | 1MPA |
| High Light: | level control floats,cistern ball float |
||

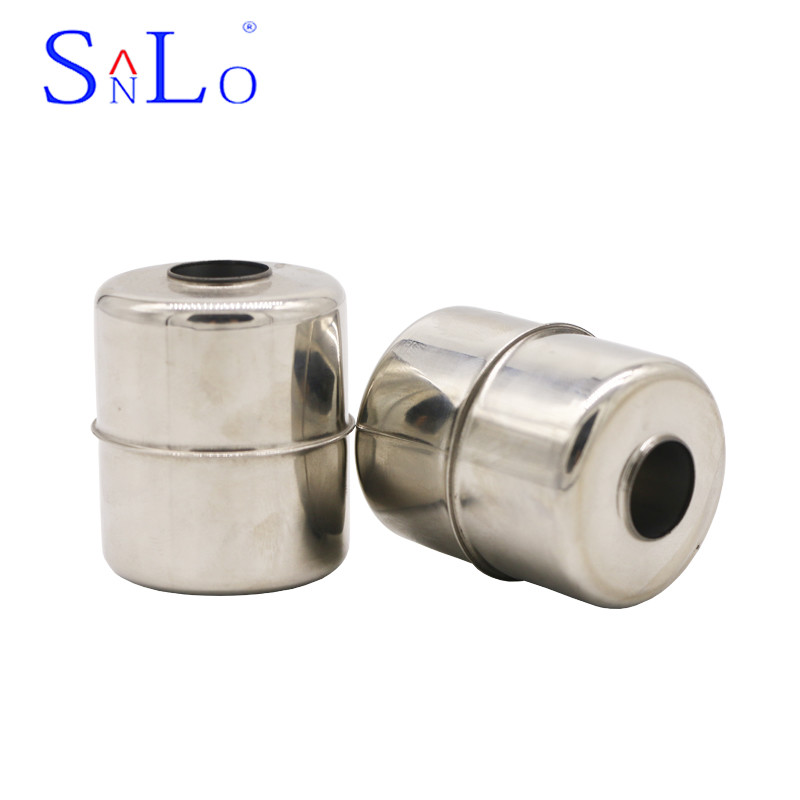

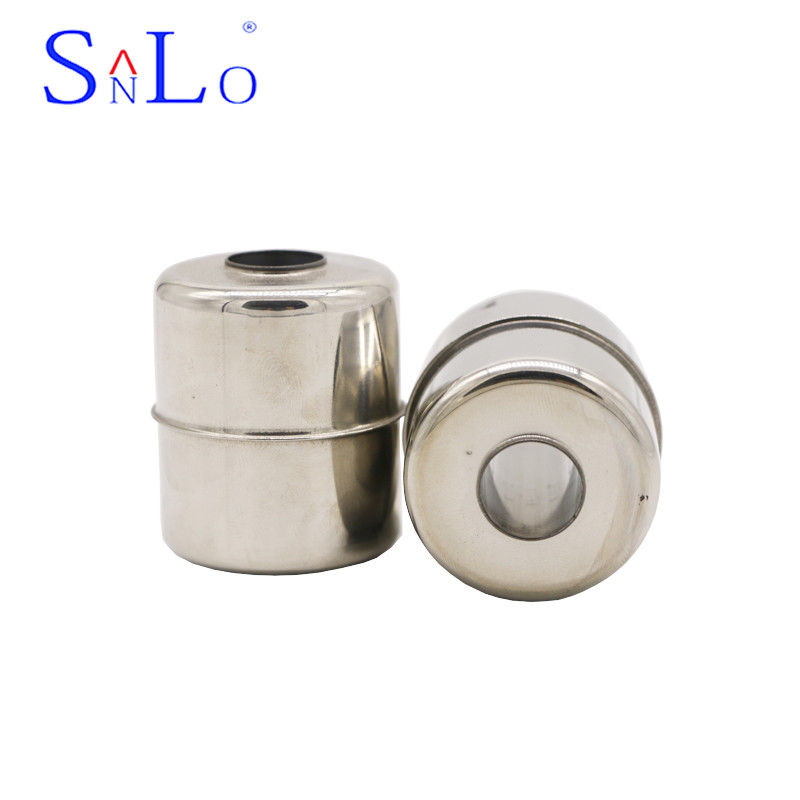

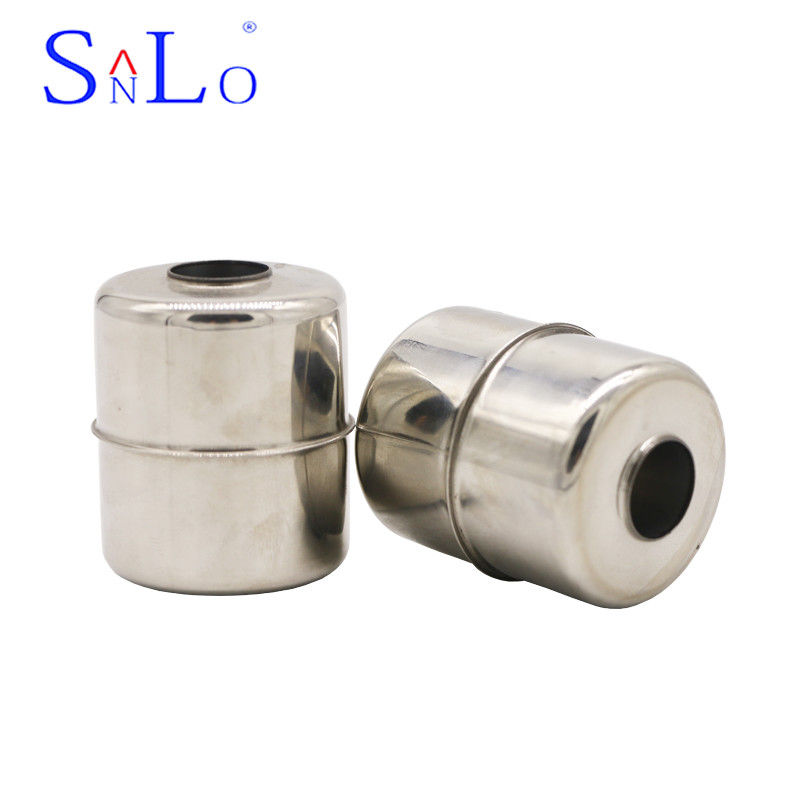

42*50*15.5 magnetic float ball for level switch from china factory with top quality
Video: https://youtu.be/GBL-SR0dkBQ
Quick Details:
| Brand | SanLo | Type | SL-NCG-054 | Operating temperature | -100--200 | Working pressure | 1.0-2.5MPA |
| Weight | Claim | Material | 316L | High withstand voltage | 2.5MPA | Media specific gravity | ＞0.50 |
| certified product | ISO9000 | Type of magnet | Ferrite |
Technical Parameters:
| Shape | Dimensions ΦA×B×ΦC | Material | Pressure (Mpa) | Temperature | S.G | Magnetic flux(MT) | Weight (g) |
| Φ25×25×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 5.5±5 | |
| Φ25×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.85 | 40±3 | 6±0.5 | |
| Φ28×28×Φ9.5 | 316L | 1.0 | -100~200 | >0.80 | 40±3 | 8±1 | |
| Φ38×26×Φ9.5 | 316L | 1.0 | -100~200 | >0.50 | 40±3 | 10.5±1 | |
| Φ40×35×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±3 | 24±1 | |
| Φ45×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.60 | 60±5 | 26±1 | |
| Φ45×56×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | ± | |
| Φ49×50×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 40 60,100 | 27±1 32±1 | |
| Φ51×61×Φ15.5 | 316L | 1.0 | -100~200 | >0.50 | 60±5 | 42±1 | |
| Φ65×90×Φ25 | 316L | 1.0 | -100~200 | > | 100±5 | ||
| Φ65×111×Φ25 | 304 | 1.0 | -100~200 | > | 100±5 | ||
| Φ30×Φ9.5 | 316L | 3.5 | -100~200 | >0.80 | 40±3 | 7.5±1 | |
| Φ52×Φ15.5 | 316L | 2.5 | -100~200 | >0.55 | 60±5 | 32±1 | |
| Φ75×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 98±3 | |
| Φ125×Φ23 | 304 | 2.5 | -100~200 | >0.50 | 60±5 | 315±5 | |
| This kind of ball float applies to float switch,and level control device etc. | |||||||
Features:
1. The reed switch does not need to be powered separately.
2. Single support can be used for multi-point control, which is more than the unit price of other liquid level switches.
3. High reliability, low wiring cost and easy installation.
4. The finished material is made of stainless steel SUS304/316, which can be used in high temperature and high pressure places.
Application:
Float switch
Level controller
Level gauge magnetic flap
traps
exhaust valve
float valve
level gauge
pneumaatic diaphragm pump
Competitive Advantage:
1 Regularly have a large inventory, fast delivery delivery
2 2 inspections, strict quality inspection
3 Strong production capacity, tens of thousands of daily production capacity, expedited orders can be produced as soon as possible
4 There are 3 professional float engineers, providing after-sales technical services
Testing :
Float water leak rate is one of important indicators for assessing the quality of the product. With increasing requirements of our customers for product quality, conventional detection methods cannot meet such requirements any more. In order to ensure that we always take the lead in the industry in terms of product quality, SanLo is the first one which has adopted anti-leak equipment for the purpose of military missile detection to ensure that all metal float products fully achieve zero-leak.
The helium mass spectrometry leak detector is a kind of vacuum detection equipment mainly for airtightness detection and also a leak detection instrument that uses helium as leak indication gas. By using safe helium for non-invasive leak detection and with such characteristics of high detection accuracy and clear leak location, the helium mass spectrometry leak detector is gradually replacing conventional leak detection methods and won’t miss any minor leak. Therefore, it can improve our work efficiency and the yield, thus offering the most efficient guarantee to our customers in using our products.
